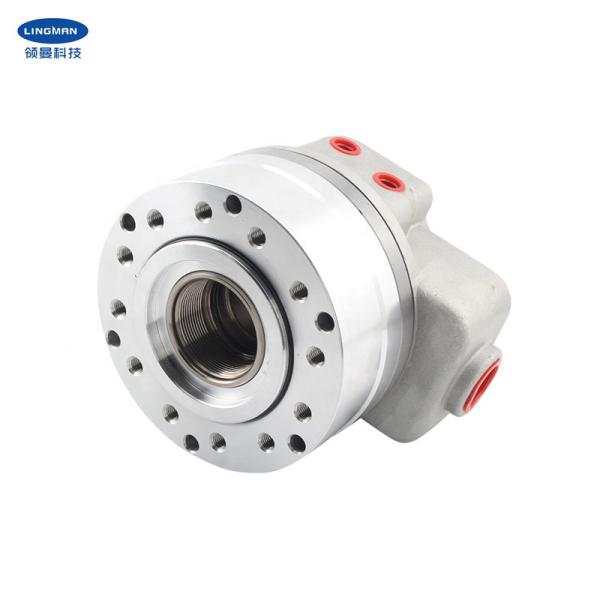

TH Series Reliable Large Through-Hole Type Rotary Hydraulic
Cylinder
1. Description
This kind of cylinder is a light-duty large through-hole rotary cylinder with
through-holes, which can process long shaft parts. The check valve
has a built-in self-locking mechanism, which can prevent pipeline
damage and pressure source loss, and ensure stable workpiece
clamping. The cylinder is safe and reliable, with high speed and
long service life, and all the internal parts are imported
original. And this product can be customized according to the
different requirements of customers.
Large through-hole rotary hydraulic cylinders can hold a full range
of multi-sized pipes.
2. Performance Parameters
Model number | TH-428 |
Push side | 53.2cm² |
Pull side | 50.5cm² |
Allowable pressure | 4.0MPa |
Limit speed | 8000r.p.m. |
Stroke | 10mm |
Weight | 5.8KG |
3. Dimensions
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing
profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
e. Multiple configurations are available
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws |
5. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| s. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
6. Production Line
