Brand Name : | OMRON |
Model Number : | NB7W-TW10B |
Supply Ability : | 10pc/per week |
Price : | Competitive |
Payment Terms : | T/T, western union |
MOQ : | 1 piece |

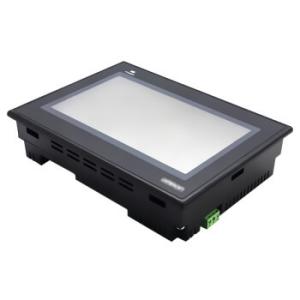

The combination of high quality and rich features add up to give outstanding value for an HMI in the economy class. The NB-Designer software to create your HMI application is free of charge and can be downloaded from our website.
Specifications | NB7W | |
---|---|---|
TW10B | TW11B | |
Display type | 7" TFT LCD | |
Display resolution (H x V) | 800 × 480 | |
Number of colors | 65536 | |
Front-side LED | No | |
Backlight Life | 50,000 hours (Typ) of operating time at the normal temperature (25°C) with 40% brightness * | |
Touch panel | Type: resistive type Operation force: 0.5 to 0.8 N Press endurance: min. 1,000,000 times (at 25°C) | |
Dimensions in mm (H × W × D) | 148 × 202 × 46 | |
Weight | 603 g max. | 607 g max. |
NB-Simple Series | NB7W | |
---|---|---|
TW10B | TW11B | |
Memory interface | No | |
Serial (COM1) | RS-232C, Transmission distance: 15 m Max., Connector: D-Sub 9-pin | No |
Serial (COM2) | No | |
USB Host | No | |
USB Slave | 1 port (for screen data transmission with a PC and Pictbridge
printing) Equivalent to USB 2.0 full speed, type B, Transmission distance: 5 m | |
Ethernet | No | 10/100 base-T |
![]() |
