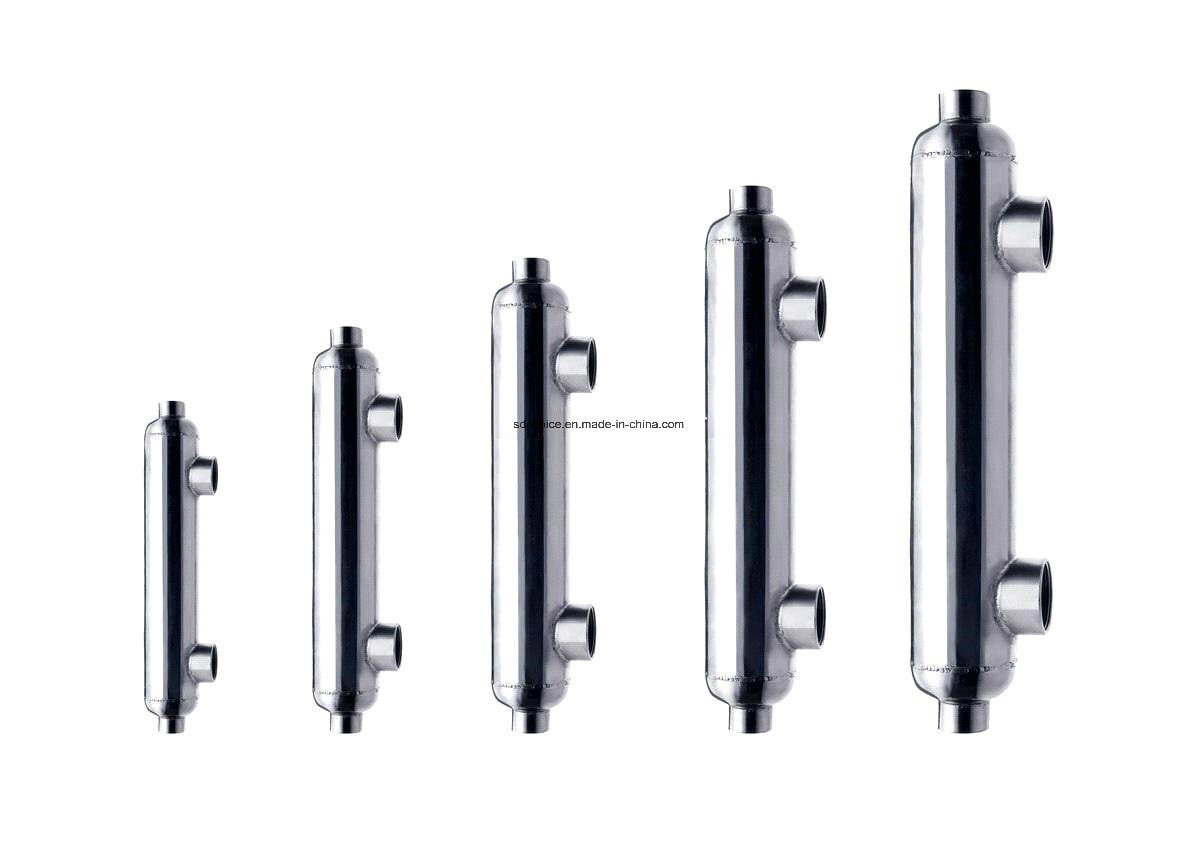

Swimming Pool Use Water Heater High Quality Power Saving Water Heat
Exchanger
With high heat transferring efficient heat exchanger tubes and
smooth shell, it ensures high velocities inside of the unit making
the heat exchanger a very reliable, efficient and cost effective
way to transfer heat indirectly between any boiler/solar water
heater or heat pump water heater circuit and any pool or spa
circuit, besides other applications.
Features:
- High heating efficiency for pool heating, big flow volume,
compactable, easy installation and durable.
- Max design temperature:208°C
- Max. working pressure:1.3Mpa
- Material: All stainless steel 316L,Titanium or according of
customer's requirement
- Warranty period:5 years
Advantages:
- High efficiency,coefficient up to 10000 W/m2•°C,Heat exchanging
capacity 3-7 times traditional equipments.
- Compact configure, occupy small area,one tenth as the traditional
equipments
- Titanium material, endure high temperature, pressure and
corruption.
- Helix screw thread elasticity heat exchange bundle, eliminate the
stress
- Design flux speed is 5.5m/s, less dirt.
- ASME standard VIII-1
- Easy clean and maintain
- Big flow volume
- Compactable
- Easy installation and durable

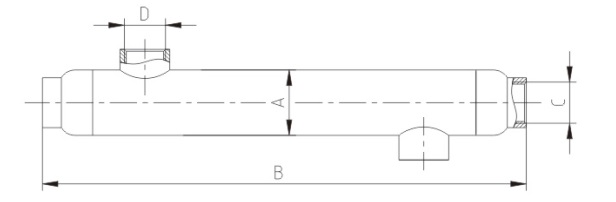

Specification of stainless stell shell and tube heat exchanger for
swimming pool :
| Model | A (mm) | B(mm) | C | E |
| ECO-55K | 60 | 360 | 3/4" | 1" |
| ECO-85K | 60 | 520 | 3/4" | 1" |
| ECO-155K | 76 | 450 | 1" | 1-1/2" |
| ECO-210K | 76 | 570 | 1-1/2" | 1-1/2" |
| ECO-300K | 76 | 780 | 1-1/2" | 2" |
| ECO-360K | 89 | 830 | 1-1/2" | 2" |
| ECO-600K | 114 | 900 | 2" | 2-1/2" |
| ECO-1200K | 133 | 900 | 2" | 2-1/2" |
| ECO-2400K | 168 | 950 | 2" | 4" |
| ECO-3000K | 168 | 1100 | 2-1/2" | 4" |
| ECO-3600K | 168 | 1300 | 2-1/2" | 4" |
| ECO-4500K | 219 | 1070 | 2-1/2" | 4" |
| ECO-5000K | 219 | 1120 | 2-1/2" | 4" |
| ECO-6000K | 219 | 1220 | 2-1/2" | 4" |
| Model No. | Normal Capacity | Pool Capacity | Heat Transfer Area |
| KW | Kbtu/hr | Gallons@1oF/hr | Literes@1o C/hr | m2 |
| ECO-55K | 16 | 55 | 4700 | 32021 | 0.15 |
| ECO-85K | 25 | 85 | 7300 | 49735 | 0.25 |
| ECO-155K | 45 | 155 | 13300 | 90613 | 0.33 |
| ECO-210K | 61 | 210 | 18000 | 122634 | 0.44 |
| ECO-300K | 88 | 300 | 25800 | 175776 | 0.64 |
| ECO-360K | 105 | 360 | 31500 | 21460 | 0.85 |
| ECO-600K | 175 | 600 | 52500 | 357684 | 1.55 |
| ECO-1200K | 352 | 1200 | 105600 | 719455 | 2.01 |
| ECO-2400K | 704 | 2400 | 211200 | 1438910 | 4.47 |
| ECO-3000K | 880 | 3000 | 264000 | 1798638 | 5.30 |
| ECO-3600K | 1056 | 3600 | 316800 | 2158365 | 6.42 |
| ECO-4500K | 1320 | 4500 | 396000 | 2697956 | 8.46 |
| ECO-5000K | 1467 | 5000 | 439000 | 3000000 | 8.87 |
| ECO-6000K | 1760 | 6000 | 526800 | 3600000 | 10.64 |
Application : 1.Typica:l residential apply to
In-floor heating,
Swimming pools, spas heating,
Domestic hot water heating,
outdoor wood furnances ,
hot tube heating
Driveway snowmelts
2.Typical industrial apply to:
Oil cooler or heating,
Steam condenser,
District/central heating,
Transmission and engine cooler,
Boiler sample cooler,
Waste water heat recovery,
Industry process
