High Temperature Explosion Proof Rail Transport Platform

High Temperature Explosion Proof Rail Transport Platform

^{High-Temperature Explosion Proof Rail Transport Platform, is a transfer cart with rails, which is the traditional and mature type transfer cart. More importantly, it has been a new favorite in the industry transport field all over the world with the hot market. Especially for the workshop transportation.}

^{Rail Transport Platform is suitable for various occasions, for example, industries, (steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle, and coil, etc from one location to another; Paper roll plant: transfer paper coil Painting shops: transfer workpiece into the painting room Sandblasting room) Other industries: shipbuilding, quarries, warehouses, and multi-bay workshops, etc. For material handling, it has been widely used in this field with the hot markets.}

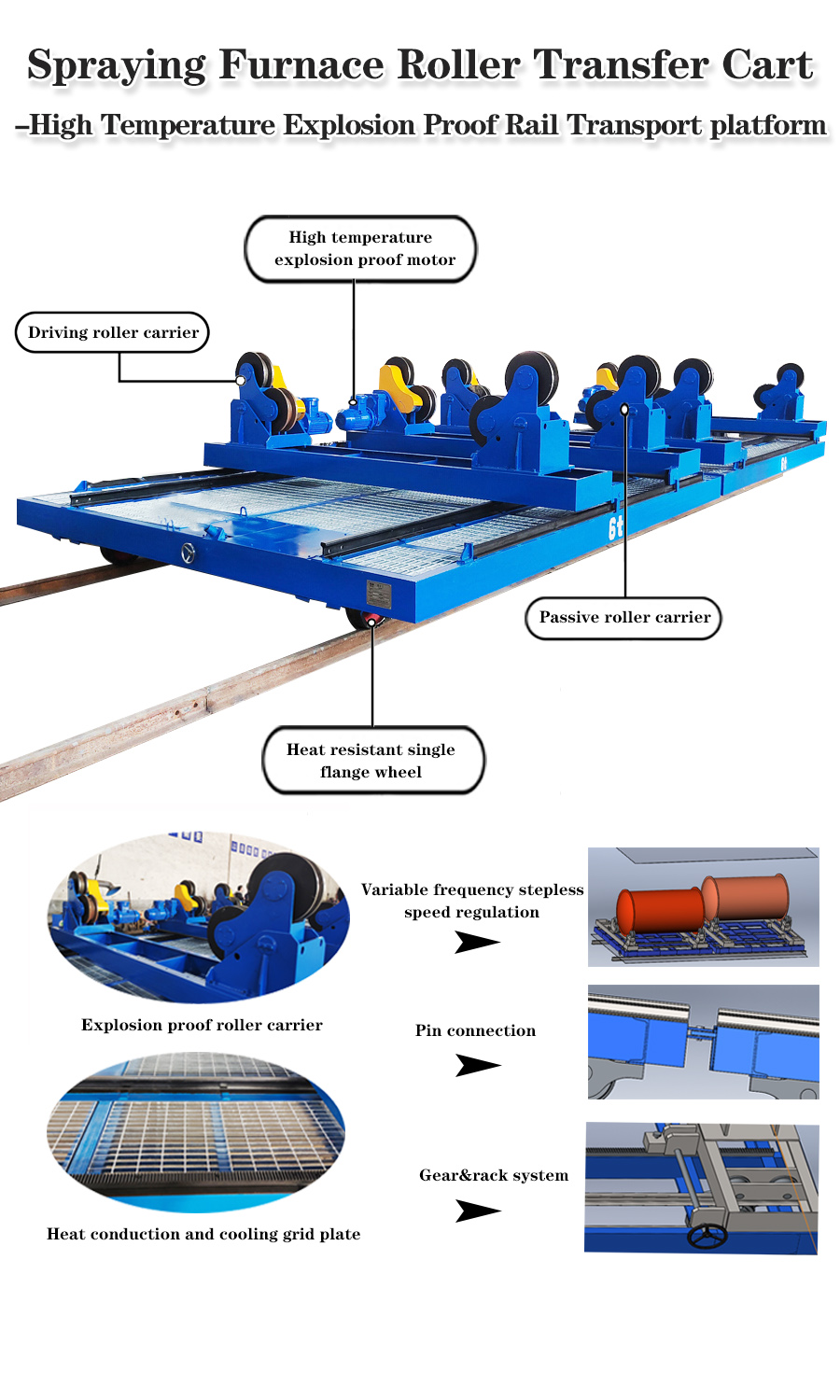

Heat conduction and high-temperature resistant body :

^{The transfer cart adopts a high-strength compressive tensile integral frame structure welded by longitudinal beam and crossbeam. The surface of the frame is paved with a hot-dip galvanized grid plate, and the size of each grid is 100 × 30, leaving a channel for hot airflow. So as to ensure the load compressive strength. The driving part table is provided with a detachable maintenance cover plate, and four lifting rings are arranged on both sides.}

Explosion-proof running device:

^{The transfer cart running device adopts the detachable handle, universal coupling, reducer, and gear to realize the front and back movement of the explosion-proof roller transfer car in and out of the furnace body and high-temperature environment. The eight-point bearing design on the beam is adopted to make the transfer vehicle more stable, safe, and convenient for shipment. The frame is equipped with a gear and rack system, which makes the roller frame move along the axial direction of the workpiece with uniform force and accurate position.}

^{High-temperature explosion-proof motor with ex D Ⅱ BT4 explosion-proof grade is adopted.}

Advantages:

^{1. High temperature resistant, explosion-proof design and device, capable of operating at 90 ℃. transfer cart works normally under high temperatures.}

^{2. High-strength compression tensile integral frame structure.}

^{3. Hot-dip galvanized grid plate, heat conduction, heat dissipation, high-temperature resistance, and load compression strength.}

^{4. Removable access cover plate for easy maintenance.}

^{5. The eight-point loading on the crossbeam makes the transfer car more stable, safe, and convenient for shipment.}

^{6. It is equipped with a gear and rack system, which makes the roller carrier move along the axial direction of the workpiece with uniform force and accurate position}

^{7. The transfer trolley wheel has a high bearing capacity, impact resistance, and strong compression resistance, which is suitable for high-temperature operation}

^{8. Ex D Ⅱ BT4 high-temperature explosion-proof motor is adopted}

^{9. Adopt active and passive roller carrier device to realize stepless speed regulation, low mechanical transmission noise, stable workpiece rotation, and the linear speed of workpiece rotation is 0.6m/s ~ 1m / s(Customized)}

^{10. The transport cart roller adopts an all-steel wheel design, which is durable and not easy to damage. The overall steel plate frame of the roller frame has a large bearing capacity and is not easy to deform.}

^{11. The cable for the motor shall be pluggable and can be connected with the reserved connector. The pluggable mode is convenient, safe, and reliable.}
