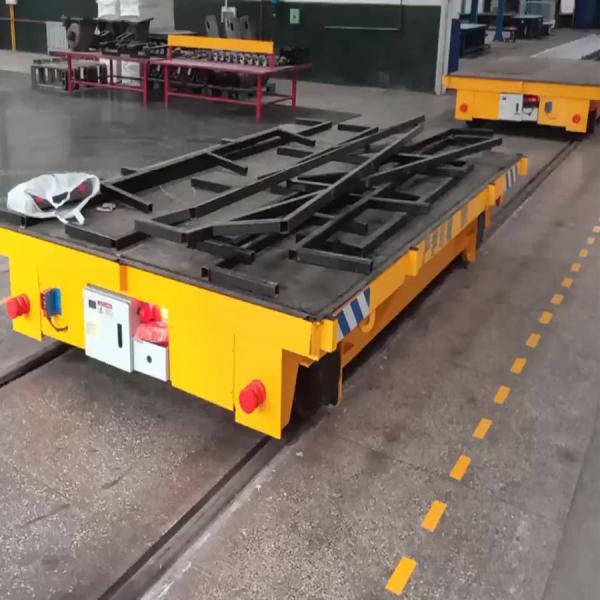

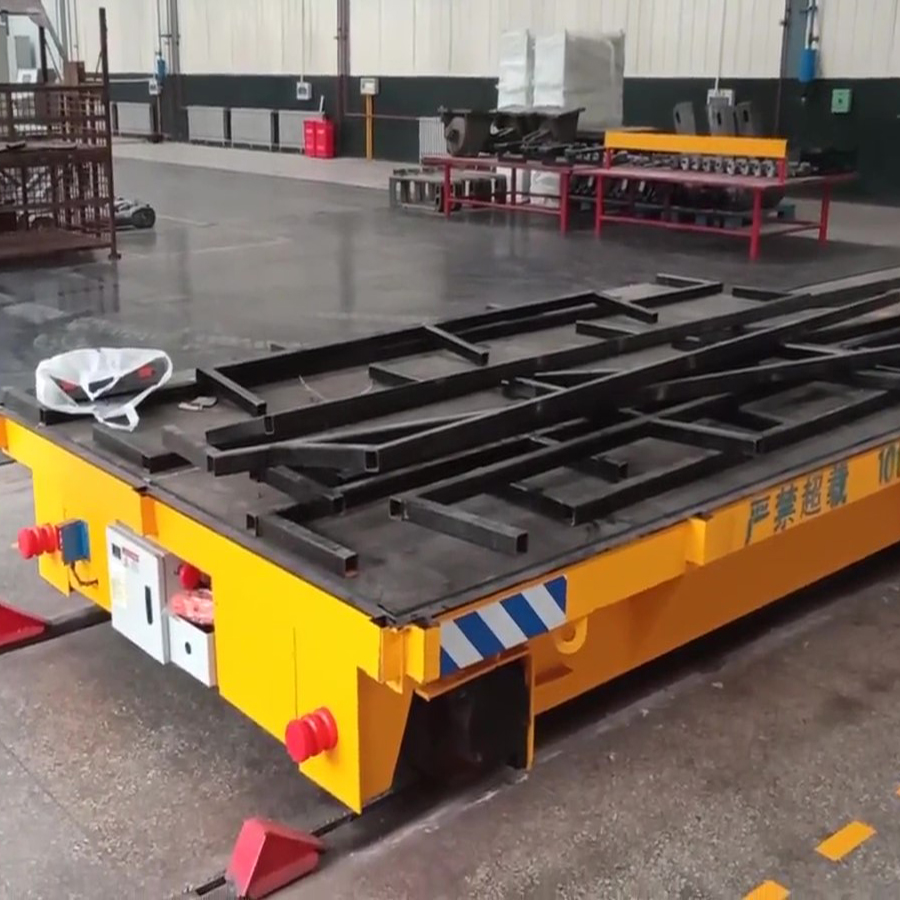

CE Low Voltage Battery Rail Trolley , 30 Tons Electric Rail Cart
CE Low Voltage Battery Rail Trolley , 30 Tons Electric Rail Cart
The storage battery track flat car is driven by the storage battery, so it should be charged in time during use to avoid that the equipment cannot be used or started normally due to insufficient power. When using, you should first turn on the main start switch of the equipment and check the power. If the power is insufficient, you should charge it first and wait until the power is sufficient. Press the start button. After the contactor turns into the pull in state, press and hold the direction button of the handle. During operation, it should be controlled in time to realize its straight travel, turning, turning and other instructions. When it is necessary to stop, press the brake button and remove the above objects. Advantages of battery car: the battery is lead-acid maintenance free, which can be suitable for harsh environment and is not afraid of rain, wind and snow. Because it does not drag cables, it can run on S-shaped track and arc track; And the current manufacturer's design, the battery can be replaced quickly, so that you can easily complete the replacement work in a short time.
Compared with other products, the battery track flat car has the advantage that it can get rid of the shackles of cables, can drive on curves and turnouts, and the running distance is not limited. It can be operated remotely, which is more convenient and safe. It is suitable for long-distance rail transportation system. When using some mechanical equipment, people should operate according to the corresponding operation process, and the same is true when using battery track flat car. If they do not operate according to the procedure, a series of problems may occur. Therefore, it is important to use according to the operation steps. Let's learn about the operation process of the equipment.
CE Low Voltage Battery Rail Trolley , 30 Tons Electric Rail Cart
Henan Remarkable Intelligent Technology Co., Ltd is a professional handling equipment company integrated intelligent R&D, design, manufacturing, sales as well as after-sales service. It specializes in producing electric transfer carts of various tonnages, handling equipment accessories, intelligent crane and crane accessories with professional design, development and manufacture of non-standard, intelligent electric transfer carts and handling robots. According to different power mode, the handling equipment products can be divided into six series including low-voltage track-powered, battery-powered, towline-powered, cable reel-powered, safe-trolley-line powered, and unpowered traction.
| Technical parameters for Battery powered electric transfer carts KPX series | ||||||||||
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-150t | |
| Rated Load(t) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 | |
| Table Size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø300 | Ø350 | Ø400 | Ø400 | Ø500 | Ø500 | Ø600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3 | 3.5 | 4 | 5 | 15 | |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 | |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4 | 4 | 3.5 | 3.6 | 3.3 | 2.9 | |
| Running Distance for One Charge (Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 266 | |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 27 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P38 | P43 | P43 | QU100 | |
| 1. Load capacity, table size and rail gauge can be customized; | ||||||||||
" }
| Sign In | Join Free | My himfr.com |
|
| Ask Lasest Price | |
| Brand Name : | Remarkable |
| Model Number : | KPX |
| Certification : | CE, ISO |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 600 |
| Delivery Time : | 30-45 work days |
CE Low Voltage Battery Rail Trolley , 30 Tons Electric Rail Cart
The storage battery track flat car is driven by the storage battery, so it should be charged in time during use to avoid that the equipment cannot be used or started normally due to insufficient power. When using, you should first turn on the main start switch of the equipment and check the power. If the power is insufficient, you should charge it first and wait until the power is sufficient. Press the start button. After the contactor turns into the pull in state, press and hold the direction button of the handle. During operation, it should be controlled in time to realize its straight travel, turning, turning and other instructions. When it is necessary to stop, press the brake button and remove the above objects. Advantages of battery car: the battery is lead-acid maintenance free, which can be suitable for harsh environment and is not afraid of rain, wind and snow. Because it does not drag cables, it can run on S-shaped track and arc track; And the current manufacturer's design, the battery can be replaced quickly, so that you can easily complete the replacement work in a short time.
Compared with other products, the battery track flat car has the
advantage that it can get rid of the shackles of cables, can drive
on curves and turnouts, and the running distance is not limited. It
can be operated remotely, which is more convenient and safe. It is
suitable for long-distance rail transportation system. When using
some mechanical equipment, people should operate according to the
corresponding operation process, and the same is true when using
battery track flat car. If they do not operate according to the
procedure, a series of problems may occur. Therefore, it is
important to use according to the operation steps. Let's learn
about the operation process of the equipment.
CE Low Voltage Battery Rail Trolley , 30 Tons Electric Rail Cart
Henan Remarkable Intelligent Technology Co., Ltd is a professional
handling equipment company integrated intelligent R&D, design,
manufacturing, sales as well as after-sales service. It specializes
in producing electric transfer carts of various tonnages, handling
equipment accessories, intelligent crane and crane accessories with
professional design, development and manufacture of non-standard,
intelligent electric transfer carts and handling robots. According
to different power mode, the handling equipment products can be
divided into six series including low-voltage track-powered,
battery-powered, towline-powered, cable reel-powered,
safe-trolley-line powered, and unpowered traction.
| Technical parameters for Battery powered electric transfer carts KPX series | ||||||||||
| Model | KPX-2t | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-150t | |
| Rated Load(t) | 2 | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 150 | |
| Table Size(mm) | Length | 2000 | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø300 | Ø350 | Ø400 | Ø400 | Ø500 | Ø500 | Ø600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3 | 3.5 | 4 | 5 | 15 | |
| Battery Capacity (Ah) | 180 | 180 | 180 | 180 | 250 | 250 | 300 | 330 | 600 | |
| Battery Voltage(V) | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4 | 4 | 3.5 | 3.6 | 3.3 | 2.9 | |
| Running Distance for One Charge (Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 266 | |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 27 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P38 | P43 | P43 | QU100 | |
1. Load capacity, table size and rail gauge can be customized; | ||||||||||
|
