10 inch touch screen hmi plc all-in-one programmable 24 relay
outputs modbus
Naming rules
1. Series QM3G: QM3G-FH series
2. HMI 43FH: 4.3inch 50FH: 5inch 70FH/70HD/70KFH: 7inch 100FH:
10inch
3. Digital input and output (DI/DO) 16: 8DI 8DO 24: 12DI 12DO 38:
20DI 18DO 44: 24DI 20 DO 60: 30DI 30DO
4. Module type M: Main module of universal controller
5. Digital output (DO) type R: relay； T: trnasistor(MOS tube)； RT:
both relay and transistor
6. Analog input (AD) 4 channels for 43FH/50FH,12 for 70FH/HD ,16
for 70KFH/100FH
7. Analog output (DA) 2 channels for 43FH/50FH,8 for
70FH/70HD/70KFH/100FH
8. AI type E: Thermocouple E(can be customized as type K T, S or J
supports negative temperature)
PT:PT100 PT1000:PT1000 NTC thermistor 10K, 50K, 100K A0: 0-20mA A4:
4-20mA V5: 0-5V
V: 0-10V V5_:-5V~5V V_:-10~10V (only 7 and 10 inch support V5_ and
V_)
9. AO type A0: 0-20mA A4: 4-20mA V5: 0-5V V: 0-10V V5_:-5V~5V
V_:-10~10V(only 7 inch and 10 inch support negative voltage covers
2 channels)
10. C1 singe phase high-speed counting,C2 AB phase counting,C3 ABZ
phase counting;
Normally support 6 single phase 60KHz , or 2 AB ( Z ) 60KHz + 1 AB
10KHz
11. P0:10KHz high speed pulse;P:100KHz high speed pulse;Normally 8
channels,Y0-Y3 is 100KHz,Y4-Y7 is 10KHz;That high speed counting
plus high speed pulse must be withi 480KHz

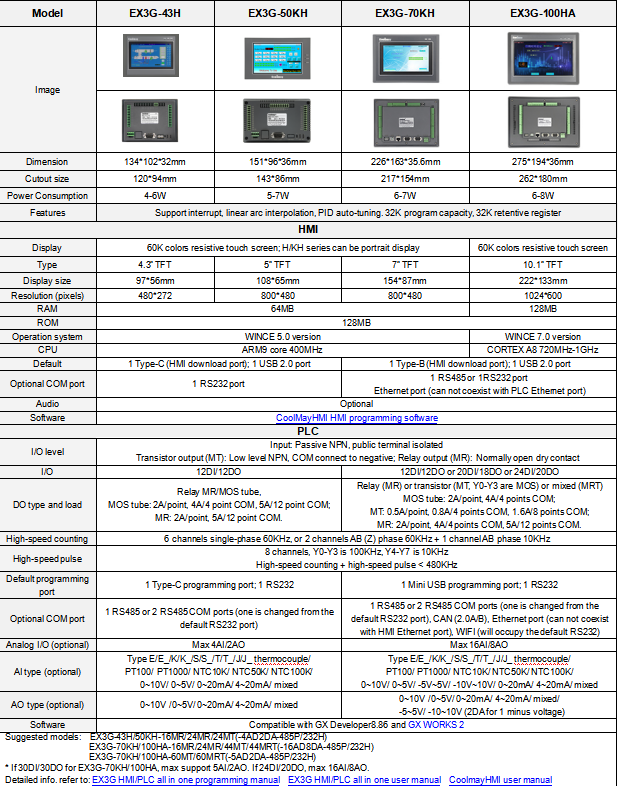

12. com port optional refers to Chart 1'basic parameter
Features
1. Super functions.PLC compatible with FX3G/FX3U/FX3S PLC. It
operate fast.
2. Highly integration.The digital points are 30 inputs and 30
outputs at most.The digital output can be transistor,relay or mixed
output.Analog can reach up to 16 input and 8 output. It has 2 PLC
COM port (Rs232 and USB Port), 1 downloading port on HMI.
3. Support several high-speed counting and high-speed pulse.
Acceleration and deceleration are independent.The total
high-speed counting and pulse can not exceed 480KHz.
4. 32K steps program capacity,32K power-off retentive
registers,support interrupt,linear and circular interpolation,PID
self-adjusting.
5. Special encryption.Set password as 12345678 to thoroughly
prevent reading data.(PLC only supports 8-bit password encryption)
6. PLC is compatible with programming software GX Developer8.86Q
and GX Works2, and HMI is mView software.
7. The network module can be selected according to customer
requirements to realize remote control.
More models are supported to customize if bulk order.
