Small Round Tin Can Making Machine 35CPM Automatic For 1L Paint Can

    Buy cheap Small Round Tin Can Making Machine 35CPM Automatic For 1L Paint Can from wholesalers

    Buy cheap Small Round Tin Can Making Machine 35CPM Automatic For 1L Paint Can from wholesalers
    • Buy cheap Small Round Tin Can Making Machine 35CPM Automatic For 1L Paint Can from wholesalers
    • Buy cheap Small Round Tin Can Making Machine 35CPM Automatic For 1L Paint Can from wholesalers
    • Buy cheap Small Round Tin Can Making Machine 35CPM Automatic For 1L Paint Can from wholesalers
    • Buy cheap Small Round Tin Can Making Machine 35CPM Automatic For 1L Paint Can from wholesalers
    • Buy cheap Small Round Tin Can Making Machine 35CPM Automatic For 1L Paint Can from wholesalers
    • Buy cheap Small Round Tin Can Making Machine 35CPM Automatic For 1L Paint Can from wholesalers

    Small Round Tin Can Making Machine 35CPM Automatic For 1L Paint Can

    Ask Lasest Price
    Brand Name : Sunnran
    Price : $48,000.00 - $60,000.00/Pieces
    Payment Terms : L/C, T/T
    Supply Ability : 20
    Delivery Time : 120 working days
    • Product Details
    • Company Profile

    Small Round Tin Can Making Machine 35CPM Automatic For 1L Paint Can

    Products Description
    Small round can making machine for paint can food can making
    This paint can making line is developed according to customer’s requirements. It is simple but functional. 1-5L cans can be fabricated on this line. The procedures to change the tooling is easy. Speed of this line can reach stable speed 55-60CPM.

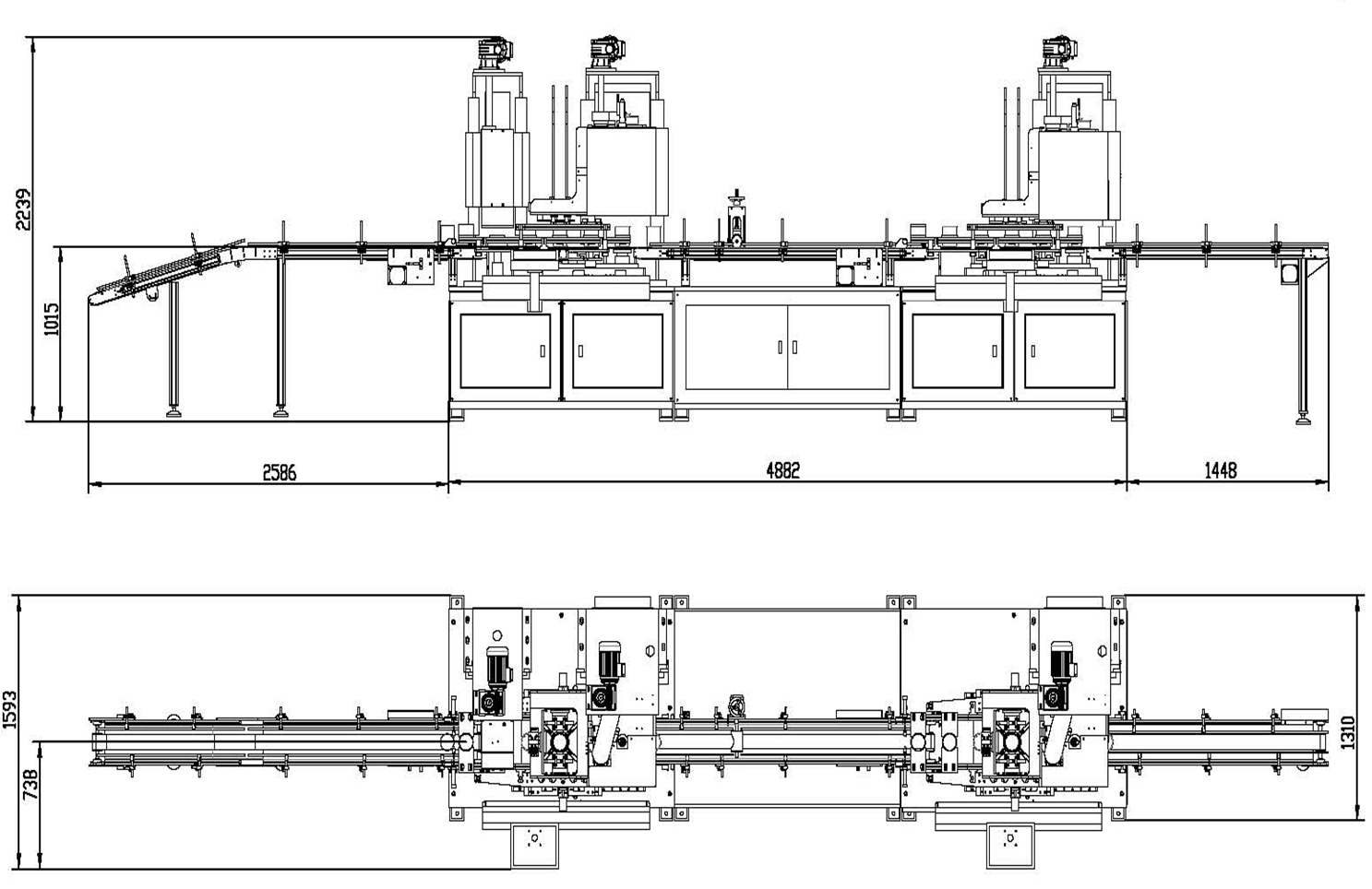

    layLayout of the paint can making machine

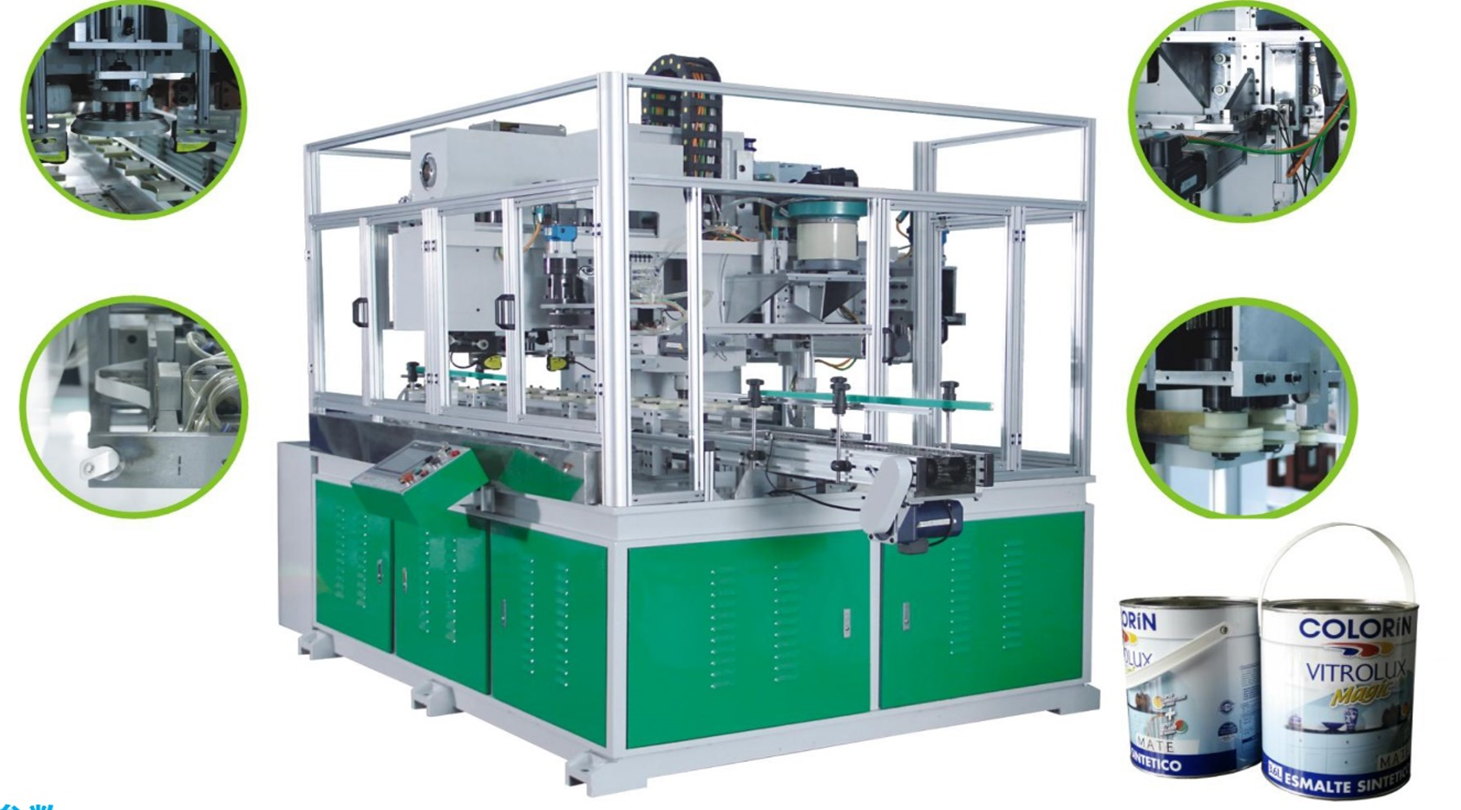

    Plastic handle rivet welder
    This machine is combined plastic stripe cutting, rivet hole punching, rivet inserting and welding. It adopts cam drive, cam transmission to transfer the can body, uses electric cylinder to feed the plastic stripe.Advanced Siemens motion system is adopted to make the movement of this whole machine more precisely. Thus, high speed , high
    stability are the strong points of this machine.
    Applicable can size
    Tinplate round can
    Output
    55-60CPM
    Applicable height
    155-300mm
    Dia. scope
    155-180mm
    Distance from top to rivet center
    33-40mm(Adjustable)
    Rivet thickness
    Above 0.32mm
    Body thickness
    0.23-0.3mm
    Transformer secondary current
    App.5000A
    Total power
    70Kw
    Air pressure
    Above 0.6Mpa
    Connection height
    1000±20mm
    Weight
    App.4.2T
