Tinplate Material Bucket Making Machine 30CPM Fully Automatic

    Buy cheap Tinplate Material Bucket Making Machine 30CPM Fully Automatic from wholesalers

    Buy cheap Tinplate Material Bucket Making Machine 30CPM Fully Automatic from wholesalers
    • Buy cheap Tinplate Material Bucket Making Machine 30CPM Fully Automatic from wholesalers
    • Buy cheap Tinplate Material Bucket Making Machine 30CPM Fully Automatic from wholesalers

    Tinplate Material Bucket Making Machine 30CPM Fully Automatic

    Ask Lasest Price
    Brand Name : Sunnran
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 20
    Delivery Time : 150 working days
    • Product Details
    • Company Profile

    Tinplate Material Bucket Making Machine 30CPM Fully Automatic

    Products Description
    Hot sale Tinplate drum production line bucket making machine
    This line is developed as per client's special requirements. It can be used for double and triple seam in one line.
    In the meanwhile , we also can combine the external beading and internal beading on the same line . Then customer can use to make the pail and drum by one line.
    Max Speed
    Diameter range
    Height range
    Air pressure
    Power
    30CPM
    220-330
    100-350
    ≥0.6Mpa
    APP.58Kw

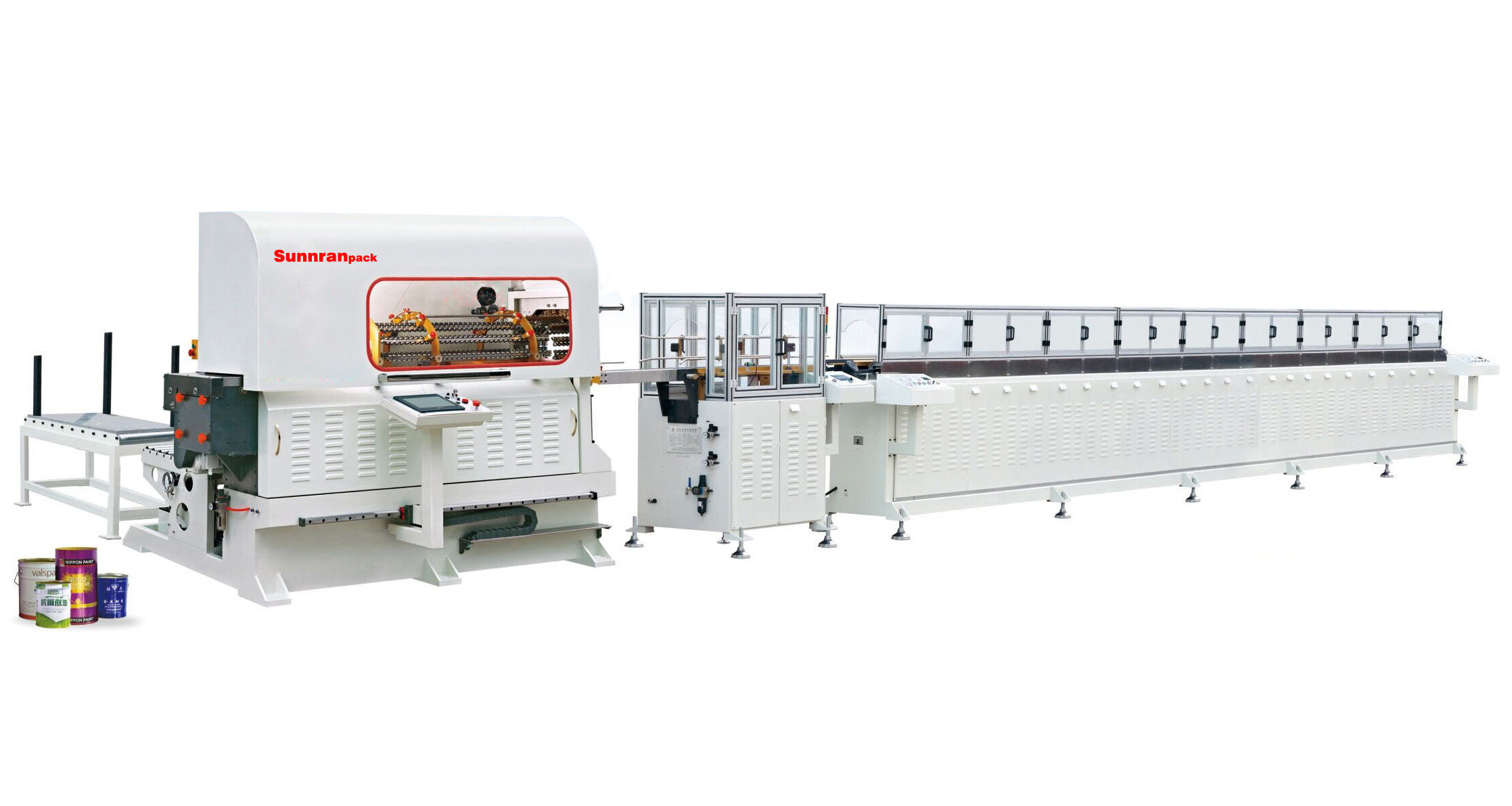

    Welding line
    Adopts sheet upward feeding to avoid double sheet issue. Can add additional storage platform for stocking the body blanks to enable machine continuously running and enhance productivity . With new innovated frequency inverter to make perfect welding seam. Internal and external roller coating machine is quipped with automatic lacquer feeding system to enable continuous operation. After roller coating , the lever-type mechanical brush can prevent the cylinder movement hit off the can bodies. Induction oven can be designed to linear or U-shape according to client’s workshop layout.
    Automatic welder
    Wire speed
    Can diameter
    Can height
    Can material
    Power capacity
    9-24m/Min
    200-260/260-290
    180-450
    Tinplate,Ni-plate,SS
    26Kw
    Internal & external coating machine
    Coating speed
    Can diameter
    Coating width
    Power Consumption
    Power source
    10-35m/min
    52-300
    10-14
    0.6Kwh
    220V
    Induction oven
    Conveying speed
    Heater Qty.
    Power
    Cooling water
    Air source
    9-30m/min
    3 x 2m/Heater
    380V , 50Hz
    >30L/min>400Kpa/cm2<20℃
