    UR5 Collaborative Robot Arm Total Station Picking Robot

    Ask Lasest Price
    Brand Name : UR
    Certification : CE
    Supply Ability : 100 Set/Sets per Month
    Price : Negotiable
    • Product Details
    • Company Profile

    UR5 Collaborative Robot Arm Total Station Picking Robot

    Collaborative robot arm UR5 UR5e robotic total station of picking robot


    Main Specifications:

    UR5 Specification
    Collaborative robot arm UR5 UR5e robotic total station of picking robot
    Weight18.4 kg
    Loading5 kg
    Running range850 mm
    Articular Range+/- 360°
    No limits of Last Articular rounding
    SpeedAll wrist joint ; 360 degree/second
    other Joint : 180 degree/second
    Tool : Normal 1 m/sec. 39.4 inches/sec
    ToolNormal 1 m/sec. 39.4 inch/sec.
    Reiterate Range+/- 0.1 mm
    Bottom widthØ118 mm
    Free roll degree6 units round joints
    Control Box Size(WxHxD)475 mm x 423 mm x 268 mm
    I/O portsCon.BoxTool Conect
    Digital In162
    Digital Out162
    Analog In22
    Analog out2-
    I/O Power SupplingControl Box 24 V 2A &, Tool 12 V/24 V 600 mA
    CommunicationTCP/IP 100 Mbit: IEEE 802.3u, 100BASE-TX
    Socket & Mod bus TCP
    ProgrammingConsumer familier 12 inch touch screen Poly scope
    Grapic User Interface(GUI) Installation
    NoiseComparatively non noise
    IP classIP64
    Power UsageAround 100W in case of general program usage
    Co work15 kinds progressed controlable safety function
    MaterialsAlumimun , PP Plastic
    TemperatureOperating from cetigrade 0 degree to 50
    Power100-240 VAC, 50-60 Hz
    Power Line6m between Robot and Control box
    4.5m between Touch screen and Control Box

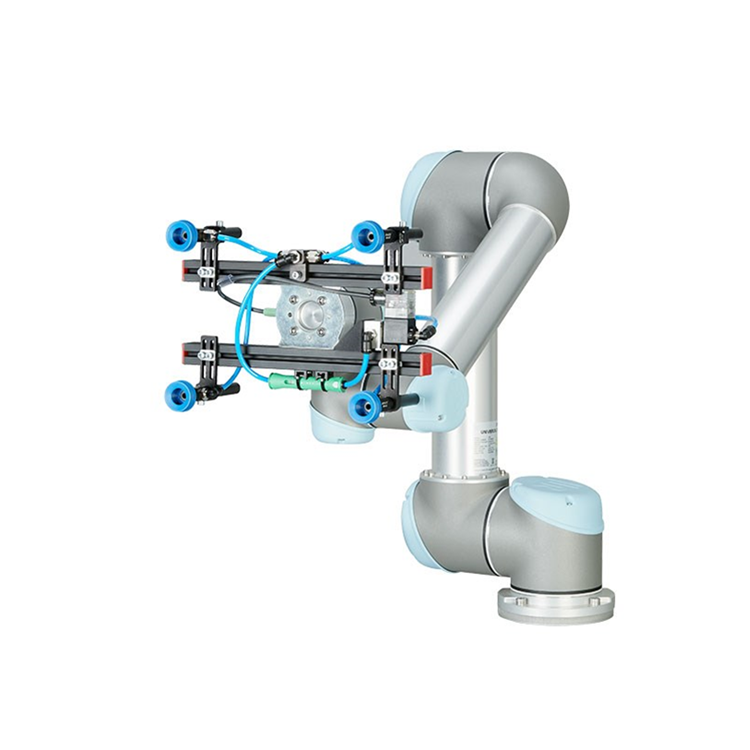

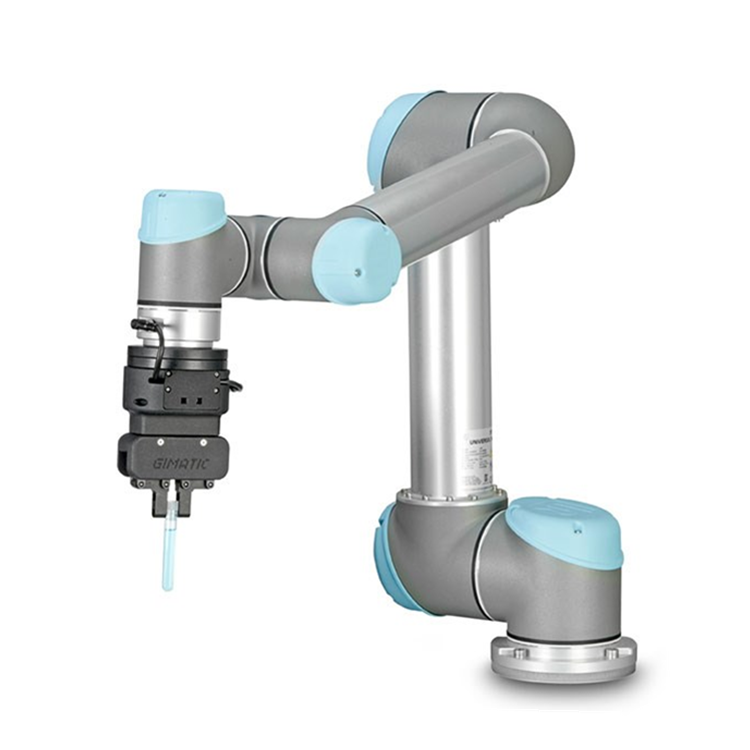

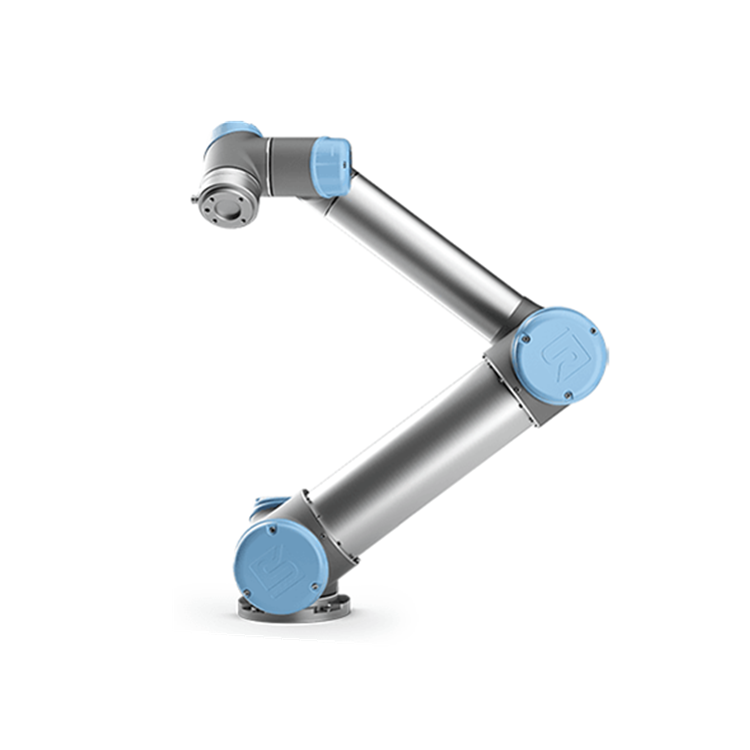

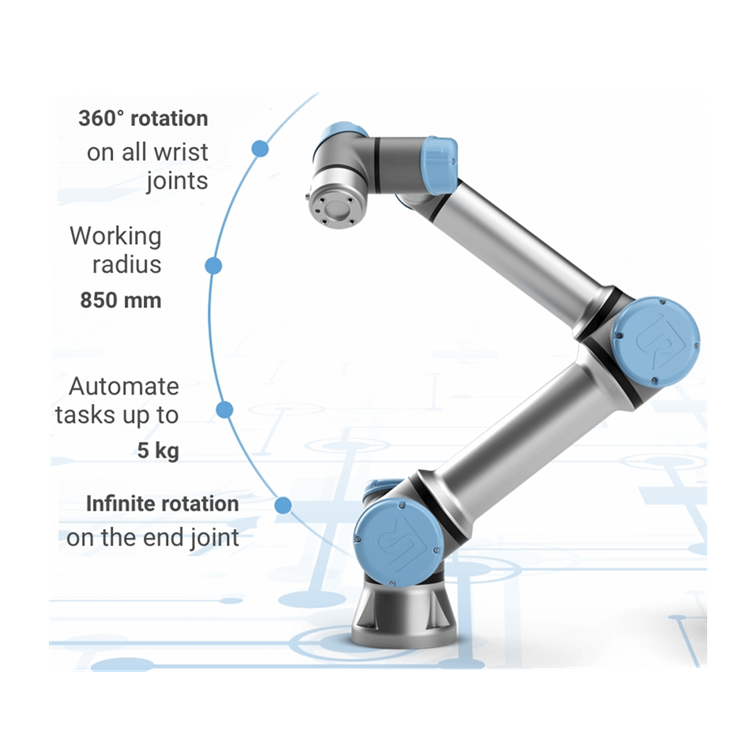

    Detailed Images
