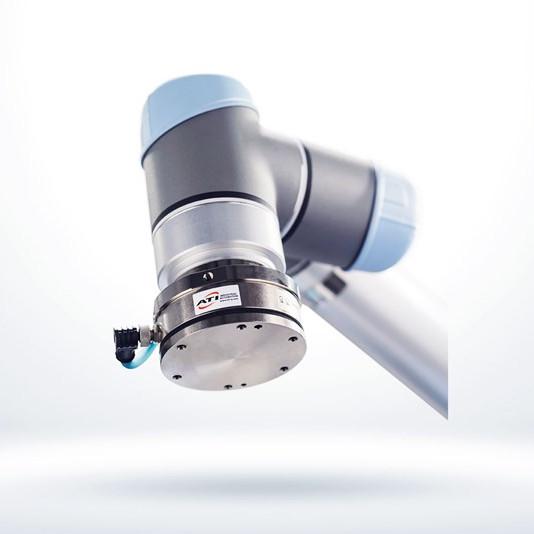

    Universal Force Robot Torque Sensor Package ATI Axia80

    UNIVERSAL ROBOT ACCESSORIES ATI AXIA80 FORCE TORQUE SENSOR PACKAGE

    Introduction

    ATI Industrial Automation’s Axia80 Force/Torque Sensor is a high-performance, low-cost, six-axis sensor that offers the highest resolution, accuracy, and stiffness available to provide a sense of touch to your application.

    Features and Benefits

    The Axia80 has Ethernet communication with a fully integrated software interface for all Universal Robots models. All of the electronics are built into the transducer body enabling a reduction in footprint without sacrificing performance. This premium low-cost sensing option provides unmatched resolution, accuracy, and stiffness. The Axia80 is available as a package that includes a traceable calibration certificate and all interface plates and cables necessary to quickly connect the transducer to a Universal Robot.


    Sensor Dimensions:
    Height 24 mm
    Diameter 82 mm
    Sensor and Interface Plate Dimensions:
    Height 25.4 mm
    Diameter 85.09 mm


    How does it work

    The Axia80 measures six components of force and torque (Fx, Fy, Fz, Tx, Ty, Tz) using a monolithic instrumented transducer. The sensor communicates these measurements over Ethernet at a data rate of up to 8 kHz, and the accompanying URCap streams the force/torque data into the robot controller, providing an accurate and robust alternative to the default internal measurements.


    The ATI URCap plugin enables an integrated communication interface between the ATI F/T sensor and the UR controller, providing programmers with easy access to the force/torque measurements collected at the robot TCP.


    Applications

    • Screw Driving

    • Assembly

    • Pick and Place

    • Polishing

    • Lab Analysis and Testing
