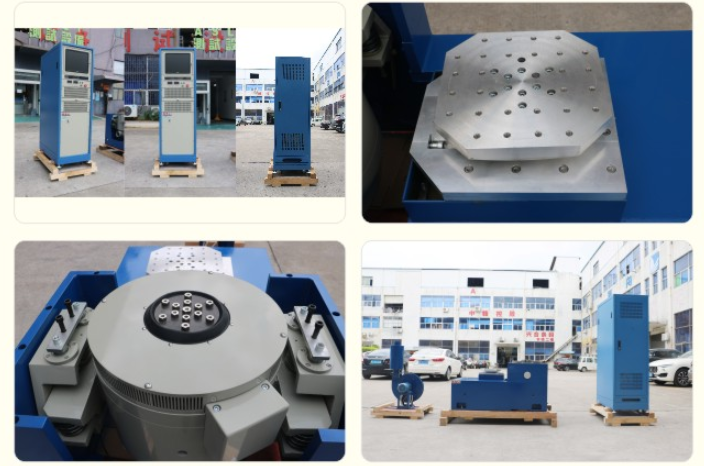

IEC62133 Electromagnetic type high frequency horizontal and
vertical vibration test machine
Product Parameters
| Shaker |
| Sine force (peak) | 30kN |
| Shock force (peak) | 60 kN |
| 3Frequency range | 5~2800 Hz |
| Displacement (continuous) | 51 mm |
| Max. Velocity | 1.8 m/s |
| Max. Acceleration | 100 G |
| Armature Diameter | 445 mm |
| 1st order resonant frequency | 2,400 Hz |
| Allowable eccentric moment | >500 Nxm |
| Armature weight | 40 kg |
| HE/ST screw dimension | M10 (metric) |
| Axial vibration isolation frequency | <3 Hz |
| Max. Payload | 500 kg |
| Magnetic flux leakage | ≤1 mT |
| Dimensions (L×W×H, unpacked) | 1,330x860x1,250 mm |
| Weight (unpacked) | 2,500 kg |
| Installation | Rubber mat (anchor bolts required) |
| Power Amplifier |
| Amplifier output | 30 kVA |
| SNR | >65 dB |
| Rated output voltage | 120 Vrms |
| Dimensions (L×W×H, unpacked) | 800x900x2,100 mm |
| Cooling Fan |
| Air volume | 0.46 m3/s |
| Power | 7.5 kW |
| Air duct diameter | 200 mm |
| Air pressure | 8.8kPa |
| Installation | Able to connect to ceiling (up to two 90 degree bends), max 20’ run |
Vibration test system is mainly used for products vibration and
shock environment test, environmental stress screening test,
reliability test.
Electromagnetic vibration tester completely according to the
standard design battery related testing, simulation, under the
certain condition of the vibration test of battery, the battery or
battery pack is fixed on the vibration table, according to the
prescribed frequency, acceleration and displacement mode along the
battery sample vibration of three mutually perpendicular direction
measured battery should not leak, don't lose heart, not broken, no
fire and explosion.
Vibration test of the application scope is extremely broad, from
circuit board, battery, plane, ship, rocket, missile, cars and home
appliances and other industrial products.
GB/T 31486-2015 <Electrical performance requirements and test
methods for traction battery of electric vehicle> Test
requirements
UL 1642:2012 < Standard for Lithium batteries>
UL 2054: 2012 < Household and Commercial Batteries>
UN38.3(2012) <Part 3: proposal for dangerous goods transport -
test and standard manual>
IEC62133-2:2017 < Safety requirements for portable sealed
secondary cells, and for batteries made from them, for use in
portable applications-Parts 2: Lithium systems>
IEC 62281: 2004 <The safety requirements in transport of Lithium
battery and battery>
IEC 60068: 2007 <Galvanic cell part 4 the security requirements of
lithium-ion batteries>
Characteristics:
Ultra mute work; The machine base uses the high quality material,
installs conveniently, the operation is smooth, does not need to
install the The, the control circuit digitization control and the
display frequency, the PID adjusts the function, causes the
equipment work to be more stable, reliable, sweeps the frequency
and the fixed frequency operation way, adapts to the different
profession test request To solve the interference of the strong
electromagnetic field to the control circuit, and to increase the
working time set, so that the test product reaches the accurate
test time..
if you need more information about IEC62133 Electromagnetic type
high frequency horizontal and vertical vibration test machine,
contact us anytime.
