Name | Electrodynamic Vibration Systems -Environmental Chamber |
Model | THV-408(A~F) | THV-1000(A~F) | THV-1500(A~F) |
Internal Dimension WxHxD(mm) | 600x850x800 | 1000x1000x1000 | 1500x1500x1500 |
External dimension WxHxD (mm) | 850x1950x2100 | 1300x2200x2400 | 1800x2400x3000 |
Temperature Range | Low temperature: ( A:25ºC; B:0ºC; C:-20ºC; D: -40ºC; E: -60ºC; F:-70ºC) High temperature:100ºC(150ºC) |
Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is a special optional
condition, need Dehumidifier) |
Control Accuracy of temperature and humidity | ±0.5ºC; ±2.5% R.H. |
Temperature Rising / Falling Velocity | Temperature rising approx. 0.1~3.0ºC/min ;
temperature falling approx. 0.1~1.2ºC/min;
(Falling velocity Min.1.5ºC/min is optional) |
Protection Devices | Fuse-free switch, overloading protection switch for compressor,
high and low voltage coolant protection switch, over-humidity and
over-temperature protection switch, fuses, fault warning system,
water short storage warning protection |
Vibration Test Equipment | Choose proper vibration test bench according to customer's test
condition, the technical parameters please take Electrodynamics
Type Vibration Tester's parameters in this catalog for reference |

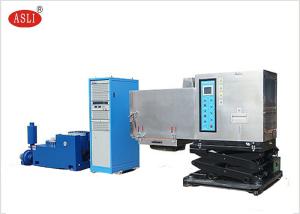

Detailed Electrodynamic Vibration Systems -Environmental Chamber Images
ASTM D3580 Test Method of Vibration test Lab Equipment Use
Electrodynamic Vibration Systems -Environmental Chamber Usage:
Three integrated temperature and humidity testing machine vibration
known as : three integrated chamber , temperature, humidity,
vibration three comprehensive test chamber, temperature / humidity
/ vibration three integrated environmental test systems. ASLI is
Taiwan's three integrated temperature and humidity vibration test
equipment brand. Vibration temperature and humidity chamber for
aerospace products, information,electronic instrumentation,
materials, electrical and electronic products,a variety of
electronic vitality in temperature, humidity , vibration,
environmental Next ,examine its various performance indicators .
ASTM D3580 Test Method of Vibration test Lab Equipment Use
Electrodynamic Vibration Systems -Environmental Chamber technical parameters:
1. Exciting force : 3000N~100KN
2. Frequency range : 5Hz ~ 4000Hz Do fixed-frequency , round sweep
, sine , random waves.
3. Sweep mode: linear , logarithmic , positive and negative sweep,
fixed frequency .
4. Sweep Views: 1-32767 times. [sales(at)aslitesting.com]
5. Sweep time: fixed frequency / single sweep of 1-3600min, and
ready to display a variety of sweeping curves.
6. Maximum acceleration : 1000m/s2 (100G, no load )
7. Maximum speed : 1.8m / s
8. Maximum Displacement : 100mmp-p (. Unloaded ) double peak .
9. effective mass vibration components :
10. Maximum load :
ASTM D3580 Test Method of Vibration test Lab Equipment Use
Electrodynamic Vibration Systems -Environmental Chamber Cooling System
1. refrigerator temperature and humidity chamber vibration using
original French " Taikang" closed compressor .
2. units or refrigeration system uses a binary type cryogenic loop
system design.
3. United States, " Ai high" dry filter , Taiwan's " second best "
oil separator, Italy " Castel properly " solenoid valve
4. Multi -wing powerful air circulation blower , to avoid any dead
ends , make the test area evenly distributed temperature and
humidity .
5. air duct return air circulating wind design wind pressure meet
testing standards , and can open the door the moment the
temperature and humidity stabilization time soon .
6. heating, cooling , humidification system is completely
independent can improve efficiency and reduce testing costs ,
increase life and reduce the failure rate.
ASTM D3580 Test Method of Vibration test Lab Equipment Use
Electrodynamic Vibration Systems -Environmental ChamberFeatures:
1. test chamber and cooling system as a whole modular structure,
compact appearance , the console set separately for easy operation.
2. refrigeration compressors and key parts are imported .
3. Imported LCD color LCD touch screen controller,temperature and
humidity controlled automatically .
4. The stand-alone system with vibration control system ,
temperature and humidity control systems ; respectively on the high
temperature , low temperature, constant temperature Humidity,
vibration tests for individual tests or composite can .
5. The mobile track design , can easily operate complex test or
individual function tests .
6. R232 is equipped with communication interface
For more Electrodynamic Vibration Systems -Environmental Chamber welcome to
contact
