    LED and LCD Keypad Options for MPPT VFD Solar Pump Inverter with GPRS Function

    Ask Lasest Price
    Brand Name : VEIKONG
    Model Number : VFD500-PV
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 15000pcs per Month
    Delivery Time : depend on the order quantity
    • Product Details
    • Company Profile

    LED and LCD Keypad Options for MPPT VFD Solar Pump Inverter with GPRS Function

    Hybrid Solar Pump Inverter DC and AC power input variable frequency drive

    Electrical Specifications and Power degree
    220V Solar Pumping Inverter
    Input Specification
    PV input
    Maxiumum input DC voltage400V DC
    Recommended MPPT voltage range250~350V DC
    Recommended input Operation Voltage310V DC
    Grid or backup generator input
    Input voltageSingle phase 220V(-15%~30%)
    Output Specification
    Rated output voltage3PH 220V
    Output frequency0~500.00Hz (default: 0~50.00Hz)
    380V Solar Pumping Inverter
    Input Specification
    PV input
    Maxiumum input DC voltage800V DC
    Recommended MPPT voltage range450~650V DC
    Recommended input Operation voltage540V DC
    Grid or backup generator input
    Input voltageThree phase 380V(-15%~30%)
    Output specification
    Rated ouput voltage3PH 380V
    Output frequency0~500.00Hz (default: 0~50.00Hz)
    Protection
    Built-in ProtectionLighting Protection ,over-current, overvoltage, ouput phase lose, under-load, under-voltage, short circuit , overheating, water pump run dry etc.

    Product Details and Features:

    1. Built in EMC C3 filter.
    2. Standare LED keypad, Can support optional LCD keypad.
    3. Can support GPRS function.
    4. Dry running protection self learning function.
    5. Water full protection function.
    6. Support 220v single phase pump and three phase pump, and support Permanent magnet synchronous motor
    7. Support solar inverter parameters marco(USER menu). It is easy to find and set parameters.
    8. Sleep and wake up function.
    9. If you use keypad control, no need set parameters, it will run automaticlly after connecting wire
    10. Support PID module

    Accessories:


    1. GPRS (support 2g/3g/4g internet)


    It supplies water volume monitoring and operation of inverter from anywhere at anytim

    It’s convenient to visit real time and historical data via web or Android APP anytime and anywhere.

    This easy-to-use platform makes monitoring of solar pump systems simple and convenient,

    far reducing operate time and monitoring costs as well.

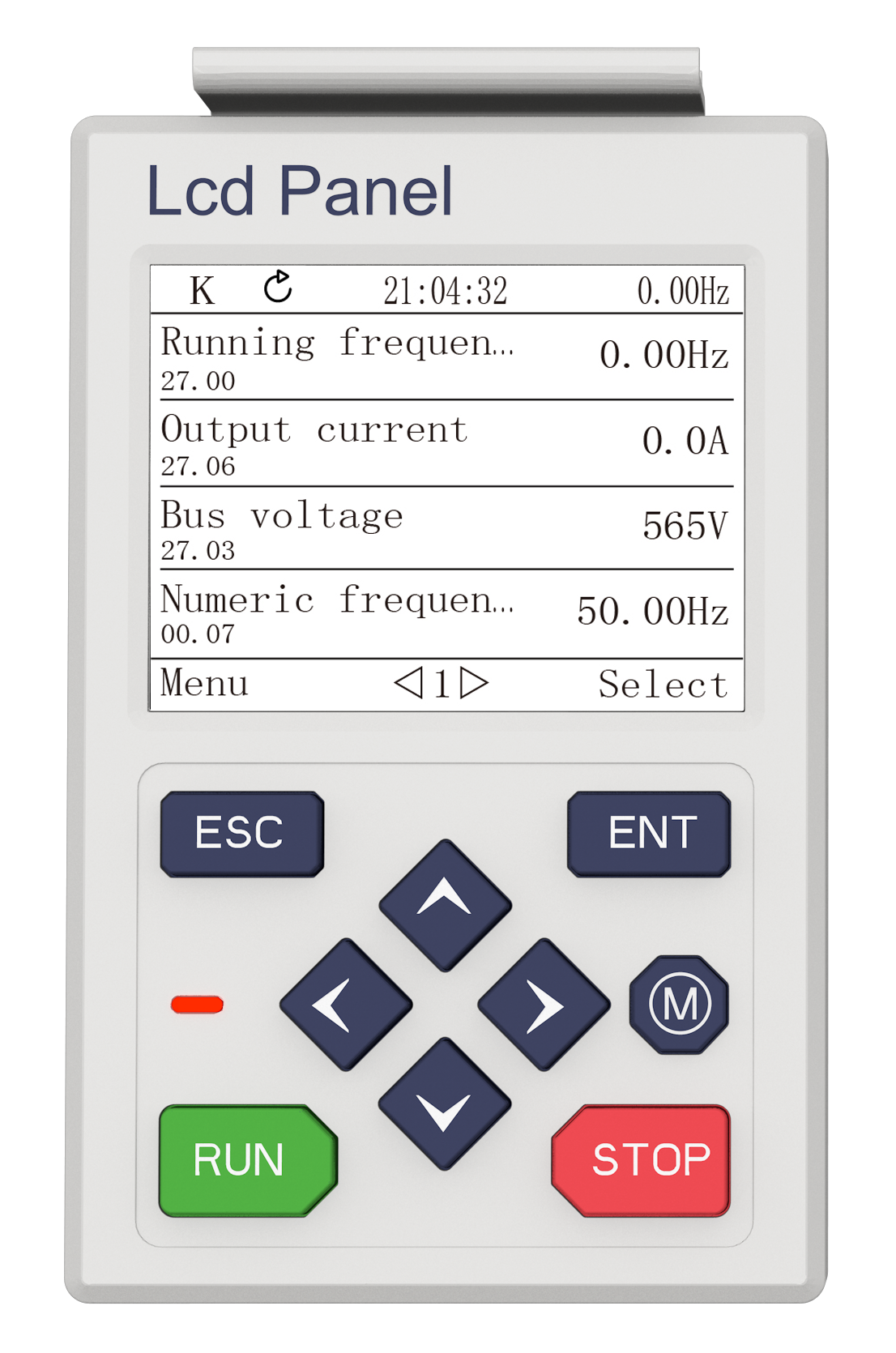

    2. LCD keypad


    Standard inverter are with LED keypad,LCD keypad is optional.

    LCD keypad can monitor 4 parameters at the same time. LED keypad show one parameter only.

    LCD keypad with detailed parameter explain,no need use user manual ,more user friendly.

    LCD keypad with copy and update and download function.widely used for government projects and big farms.


    VEIKONG multi languages choices display


    Product Application:



    Model Range

    Drive ModelRelated VoltageMax DC input voltage (V)Rated output current (A)Applicable water pump (KW)SIZE
    VFD500M-20T00150-PV220V80071.5SIZE A
    VFD500M-20T00220-PV220V80010.62.2SIZE A
    VFD500M-40T00150-PV380V8004.21.5SIZE A
    VFD500M-40T00220-PV380V80062.2SIZE A
    VFD500-20T00150-PV220V80071.5SIZE A
    VFD500-20T00220-PV220V80010.62.2SIZE A
    VFD500-20T00400-PV220V800174SIZE A
    VFD500-40T00150-PV380V8004.21.5SIZE A
    VFD500-40T00220-PV380V80062.2SIZE A
    VFD500-40T00400-PV380V8009.44SIZE A
    VFD500-40T00550-PV380V800135.5SIZE B
    VFD500-40T00750-PV380V800177.5SIZE B
    VFD500-40T01100-PV380V8002511SIZE C
    VFD500-40T01500-PV380V8003215SIZE C
    VFD500-40T01850-PV380V8003818.5SIZE D
    VFD500-40T02200-PV380V8004622SIZE D
    VFD500-40T03000-PV380V8006030SIZE E
    VFD500-40T03700-PV380V8007537SIZE E
    VFD500-40T04500-PV380V8009645SIZE F
    VFD500-40T05500-PV380V80011255SIZE F
    VFD500-40T07500-PV380V80015075SIZE G
    VFD500-40T09000-PV380V80017690SIZE G
    VFD500-40T11000-PV380V800210110SIZE H
    VFD500-40T13200-PV380V800253132SIZE I
    VFD500-40T16000-PV380V800304160SIZE I
    VFD500-40T18500-PV380V800340185SIZE J
    VFD500-40T20000-PV380V800377200SIZE J
