    Energy Saving Motor Soft Starter with Automatic Cooling Function

    Ask Lasest Price
    Brand Name : VEIKONG
    Model Number : VKS6000
    Certification : CE
    Price : Negotiable
    Payment Terms : Western Union, T/T, L/C, D/A, D/P, PayPal
    Supply Ability : 15000pcs per Month
    Delivery Time : 3 days, depend on the order quantity
    • Product Details
    • Company Profile

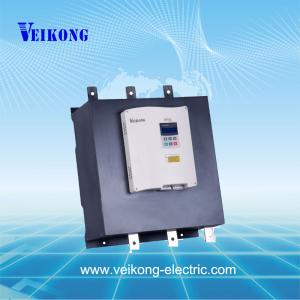

    Energy Saving Motor Soft Starter with Automatic Cooling Function

    200kw 220kw 250kw 280kw Motor Protector AC Contactor Magnetic Motor Soft Starter​


    Product Feature


    1. Debug faster


    The VKS-6000 is easy to use at design time considering the ease of use menu is not surprising. After installation, the quick setup menu assists you in configuring the starter for commonnapplications: it suggests a typical value that you can fine tune to your own needs, all with an easy-to-use dashboard.
    2. Cooling innovation
    High speed fan plus out of the wind grille, 360 degrees all-round cooling, when the soft-start fan high-speed operation, soft start and stop the fan chime five minutes to automatically stop functioning, to achieve intelligent cooling, so that users are not wasting every kWh.
    3. Software innovation
    A wider range of applications Built-in smart power motherboard, but Paul remote places, low voltage or voltage instability led to the device can not get up, intelligent power supply board can be within the voltage 150V- 460V application equipment to achieve the normal starting requirements.
    New current-voltage coefficient, built-in power board can be directly calibrated current and voltage.
    Start delay parameters, when the equipment power failure, the soft starter automatically delayed after 5 minutes
    4. Communication innovation
    (RJ-45, DB9 and other plug-in, built-in RS485, RS232 interface, providing Chinese PC software, user-friendly remote debugging and control)

    Technical Specification

    Item

    Description

    Input Power Supply

    Input Voltage

    Three-phase 380V/480V/660 AC

    Frequency

    50/60Hz

    Adaptive Motor

    Squirrel-cage three-phase asynchronous motor

    Starting Times

    It is recommended not to exceed 20 times per hour.

    Control Mode

    (1) Operation panel control.

    (2) Operation panel + external control.

    (3) External control.

    (4) External control + COM control.

    (5) Operation panel + external + COM control.

    (6) Operation panel + COM control.

    (7) COM control.

    (8) No start or stop operation.

    Start Mode

    (1) Current-limiting to start.

    (2) Voltage ramp to start.

    (3) Torque control + current-limiting to start.

    (4) Torque control + voltage ramp to start.

    (5) Current ramp to start.

    (6) Voltage current-limiting double closed-loop start.

    Stop Mode

    (1) Soft stop.

    (2) Free stop.

    Protective Function

    (1) Open loop protection for external instantaneous stop terminals.

    (2) Over-heat protection for soft starter.

    (3) Protection for too long starting time.

    (4) Input open phase protection.

    (5) Output open phase protection.

    (6) Unbalanced three-phase protection.

    (7) starting over current protection.

    (8) Running overload protection.

    (9) Under voltage protection for power voltage.

    (10) Overvoltage protection for power voltage.

    (11) Protection for fault parameter setting.

    (12) Load short circuit protection.

    (13) Auto restart or incorrect wiring protection.

    (14) Incorrect wiring protection of external control stop terminals.

    Ambient

    Place to be used

    Indoor location with good ventilation free from corrosive gas and conductive dust.

    Altitude

    Below 1000M. It have to rise the rate power when the altitude is more than 1000M.

    o

    Temperature

    -20 +45 C

    Humidity

    90%RH without dew condensation.

    Vibration

    <0.5G

    Structure

    Protection Class

    IP20

    Cooling Pattern

    Fans cooling.


    Product Application




    FAQ


    1. Do you accept customized order?


    Yes, we do.


    2. Can I have a sample order?


    Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


    3. How to ship?


    Please inform us of your requirements, whether it is by sea, air or express, it is all right for us. We have very professional logistics channels to provide the best transportation cost, service and guarantee.
