    Two Phase Nema 23 Stepper Motor For Cnc 3N.M

    Ask Lasest Price
    Brand Name : JSS
    Model Number : JSS57HS112-3004A08-D21
    Certification : CE
    Price : USD$16.2~18
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 800pcs/day
    Delivery Time : 15days
    • Product Details
    • Company Profile

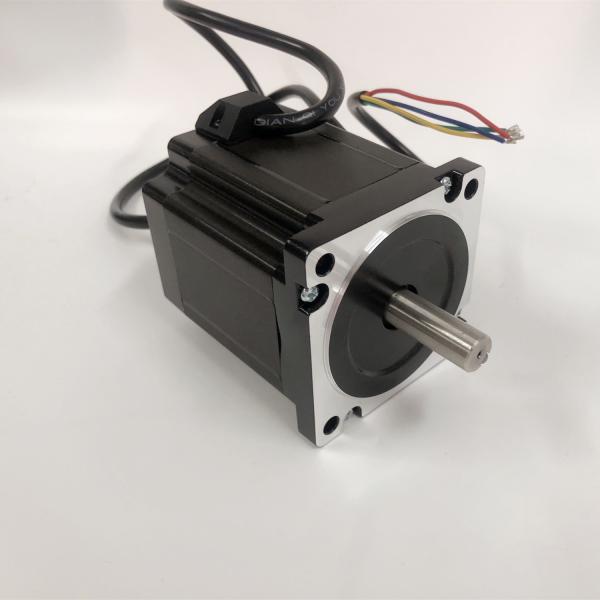

    Two Phase Nema 23 Stepper Motor For Cnc 3N.M

    Product Description

    China Two Phase Nema23 3N.M Holding torque Stepping Motor For CNC



    General specification:

    Step Angle1.8°
    Temperature Rise80℃ Max
    Ambient Temperature-20℃ Max∼+50℃
    Insulation Resistance100M ΩMin.,500VDC
    Dielectric Strength500VAC for 1 minute
    Shaft Radial Play0.02Max (450g-load)
    Shaft Axial Play0.08Max (450g-load)
    Max. Radial Force75N (20mm from the flange)
    Max. Asial Force15N

    Electrical Specification:

    Model No.

    Step Angle

    (°)

    Voltage /Phase (V)Current /Phase (A)

    Resistance /Phase

    (Ω)

    Inductance Phase (mH)Holding Torque (kg.cm)Detent Torque (g.cm.Max)Rotor Inertia (g.cm²)Motor Length (mm)Lead Wires No.Motor Weight (kg)
    57HS41-20041.82211.23.22101204140.45
    57HS41-10041.85.415.49.55.52101204140.45
    57HS41-20041.82212.252101204140.45
    57HS51-15041.82.41.51.63.88.23602755140.65
    57HS51-20041.82.421.2393602755140.65
    57HS51-20061.82211.673602755160.65
    57HS56-15041.85.71.53.81213.54003005640.7
    57HS56-30041.82.8530.952.8124003005640.7
    57HS56-20061.83.621.82.894003005660.7
    57HS64-30041.83.931.32.2155003806440.8
    57HS76-20041.88.624.316.2246804807641
    57HS76-30041.82.730.93.5206804807641
    57HS76-40041.82.440.62.2206804807641
    57HS82-30041.84.231.45227005108241.2
    57HS82-40041.8340.753.5207005108241.2
    57HS100-30041.83314.525100068010041.4
    57HS112-30041.83.931.36.530120080011241.7
    57HS112-35041.82.453.50.7328120080011241.7

    Dimensions: Wiring Diagram:

    (Unit=mm)

    L1 and L2 can be customized according to customers' requirements.

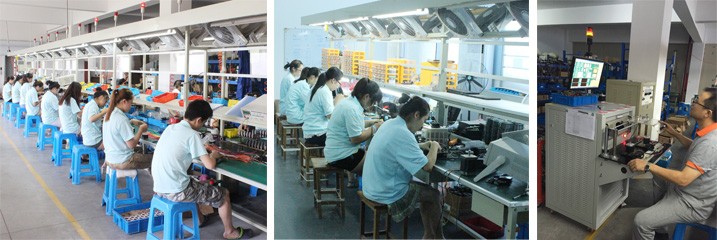

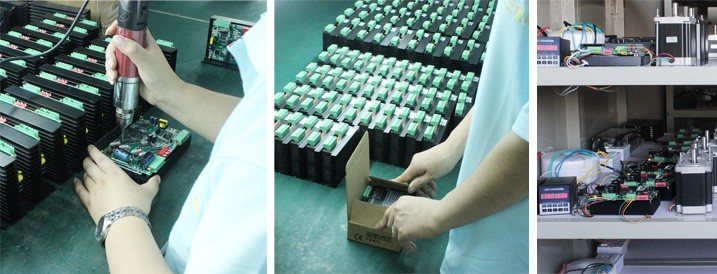

    Production process





    Our Services

    Different specification of stepper motor with competitive price for your choice:

    A wide range of application:


    Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.



    First-class service:

    customization and OEM is available.

    Warranty: 12 months

    Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us without any hestation. It's a pleasure to serve you.


    Contact me :

    WhatsApp: +86 18306110590

    Phone: +86 18306110590


    Packaging & Shipping

    We have standard package for our products. We can also make it as per your special requirements.

    .jpg

    Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.


    Company Information

    Changzhou JianSanShi Mechatronics Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting stepper motor, motor driver, BLDC motor and PM motor for several years. We have two our own production base and a strong R&D team.


    Till now, JSS has a variouty of specifications of hybrid stepper motors, and different linear stepper motor, geared stepper motor, stepper motor with brake. Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CE, RoHS and ISO9001:2008.


    If you are interested in any of our products, please feel free to visit our website and contact us directly for more informations. We are looking forward to cooperate with you!

    Certifications:



    Contact Informations:

    Changzhou JianSanShi Mechatronics Co., Ltd

    Website: www.jss-motor.com

    Address: Dai Luo Road 135,Luoyang Town, Wujin District, Changzhou City, Jiangsu Province, China

    FAQ

    1.Q:Can I get some samples first?

    A:Sure, we are honored to offer you samples for your check.

    2.Q:Do you have the products in stock?

    A:Our products are manufactured according to your order except the normal products.

    3.Q:What's the delivery time?

    A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.

    4.Q: How does your factory do regarding quality control?

    A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.

    5.Q:What's your warranty terms?
    A: We offer different warranty terms for different products. Please contact with us for details.
