Block Forklift Clamp Attachments Turn A Load 1015mm Width

    Buy cheap Block Forklift Clamp Attachments Turn A Load 1015mm Width from wholesalers

    Buy cheap Block Forklift Clamp Attachments Turn A Load 1015mm Width from wholesalers
    • Buy cheap Block Forklift Clamp Attachments Turn A Load 1015mm Width from wholesalers

    Block Forklift Clamp Attachments Turn A Load 1015mm Width

    Ask Lasest Price
    Brand Name : Bonafe
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000 Unit/Units per Year
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

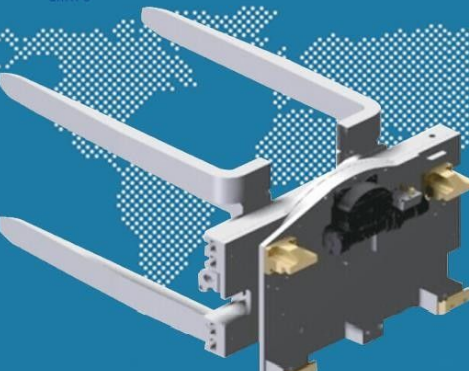

    Block Forklift Clamp Attachments Turn A Load 1015mm Width

    Forklift connecting turntable with 50x150x1220mm forklift fork


    Parameter

    Capacity@
    Load Center
    (Kg@mm)
    Model No.Mounting ClassOpening Range
    (mm)
    Fork
    Size
    (mm)
    Frame
    Width
    D(mm)
    Fork
    Spacing (mm)
    Vertical
    Center of
    Gravity
    CGV(mm)
    Weight
    (kg)
    Effective
    Thickness
    ET(mm)
    Horizontal
    Center of
    Gravity
    CGH(mm)
    2300@600TAL30D-006BIII640-195050x150x12201015635(4fork)270880345300
    2300@600TAL30D-007BIII710-206050x150x12201015754(4fork)270760345300

    Product Description

    TAL30D-006B Fork Size 50x150x1220mm, Frame Width 1015mm, EffectiveThickness 345mm, Vertical Center of Gravity 270mm

    TAL30D-007B Fork Size 50x150x1220mm, Frame Width 1015mm, EffectiveThickness 345mm, Vertical Center of Gravity 270mm


    Options

    * Fork sizes

    * Various mounting classes available

    * Custom opening ranges



    Remark:

    1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.

    2. Two sets of additional oil circuits are required on the forklift.

    3. The opening range is the space between the tips of the two arms.

    4. The fork size can be customized according to user requirements.


    Installation&Option

    Hydraulic Flow&Pressure

    ModelMin.
    Hydraulic
    Flow(L/min)
    Rec.
    Hydraulic
    Flow(L/min)
    Max.
    Hydraulic
    Flow(L/min)
    Min.
    Hydraulic
    Pressure(Bar)
    Max.
    Hydraulic
    Pressure(Bar)
    TAL30D20406035160

    Rotator Specifications

    ModelRotator SpeedRotator Torque
    TAL30D5.2r/min@57L/min9000N.m@160Bar

    Applicable Industries

    Manufacturing plant, chemical fiber, workshop, port industry



    Can be customized according to size

    Customized solutions:

    1. Carton Clamp

    2. Block Clamp

    3. Bale Clamp

    4. Roll Clamp

    ......

    all kinds of attachment
