Product description
ISO9001 Wet Pan Mill Gold Mining 1300 Round Mill Gold
1. Description
Specifications are coded by roller diameter Φ Type 160 Φ 150 Φ Type
140 Φ Model 130 wet mill can be used to select iron, molybdenum,
zinc, lead, antimony, tungsten and other ores. Φ 120 Φ 110, 100 Φ
Type Φ Model 900 can be used for customers to choose money.
900-1500 wet mill fundamentally solves the problems of uneven
mixing and difficult air discharge of similar mixing equipment. It
is the latest and most suitable professional equipment for grinding
ore, slag and refractory materials in mines.
2. Technical parameters
| Model | Specifications | Capacityt/d | speed r/min | Powerkw | |
| 900 | 900×180×70×230± 20mm | 4 | 11-14 | 4-4 | -100 mesh accounts for 70-80% |
| 1000 | 1000×200×80×250± 20mm | 6 | 13-15 | 4-5.5 | -100 mesh accounts for 70-80% |
| 1100 A | 1100×200×80×250± 20mm | 10 | 17-19 | 6-7.5 | -100 mesh accounts for 70-80% |
| 1100 B | 1100×200×80×250± 20mm | 10 | 23-25 | 4-7.5 | -100 mesh accounts for 70-80% |
| 1200 A | 1200×200×80×250± 20mm | 15 | 17-19 | 6-7.5 | -100 mesh accounts for 70-80% |
| 1200 B | 1200×200×80×250± 20mm | 15 | 23-25 | 4-7.5 | -100 mesh accounts for 70-80% |
| 1300 A | 1300×250×150×350± 20mm | 18 | 16-18 | 6-15 | -100 mesh accounts for 70-80% |
| 1300 B | 1300×250×150×350± 20mm | 18 | 21-23 | 4-15 | -100 mesh accounts for 70-80% |
| 1350 A | 1350×250×150×350± 20mm | 25 | 16-18 | 6-18.5 | -100 mesh accounts for 70-80% |
| 1350 B | 1350×250×150×350± 20mm | 25 | 21-23 | 6-18.5 | -100 mesh accounts for 70-80% |
| 1400 A | 1400×250×150×350± 20mm | 35 | 16-18 | 6-18.5 | -100 mesh accounts for 70-80% |
| 1400 B | 1400×250×150×350± 20mm | 35 | 21-23 | 6-18.5 | -100 mesh accounts for 70-80% |
| 1500 A | 1500×350×200×460± 20mm | 50 | 20-22 | 6-22 | -100 mesh accounts for 70-80% |
| 1500 B | 1500×350×150×460± 20mm | 50 | 20-22 | 6-22 | -100 mesh accounts for 70-80% |
| 1500 C | 1500×300×150×420± 20mm | 45 | 20-22 | 6-22 | -100 mesh accounts for 70-80% |
| 1600 A | 1600×400×200×500± 20mm | 80 | 20-22 | 6-30 | -100 mesh accounts for 70-80% |
3. Product advantages
This machine also fundamentally solves the problems of uneven
mixing and difficult ventilation of similar mixing equipment. Is
the latest most suitable for refractory molding raw material
processing equipment.
This machine is mainly through the repeated mixed rolling, crushing
and rolling of raw materials to achieve the goal of water balance,
uniform ratio and low air content, so as to improve the forming
rate and forming quality. The products made of wet ball milling
materials have the characteristics of high density, good strength,
no pores and large ratio.
4. Working principle
The power of the wet roller is that the motor is driven to the
gearbox through the V-belt, and then the gearbox drives the roller,
so that the roller runs clockwise. When the raw materials in the
basin run with the roller, they rotate with the roller, so as to
achieve the purpose of uniform mixing. At the same time, the raw
material is rubbed with the roller and the roller plate, so that
the raw material is stirred, rolled, crushed and rolled repeatedly
to a certain fineness, and then discharged with water to achieve
the purpose of mineral processing.

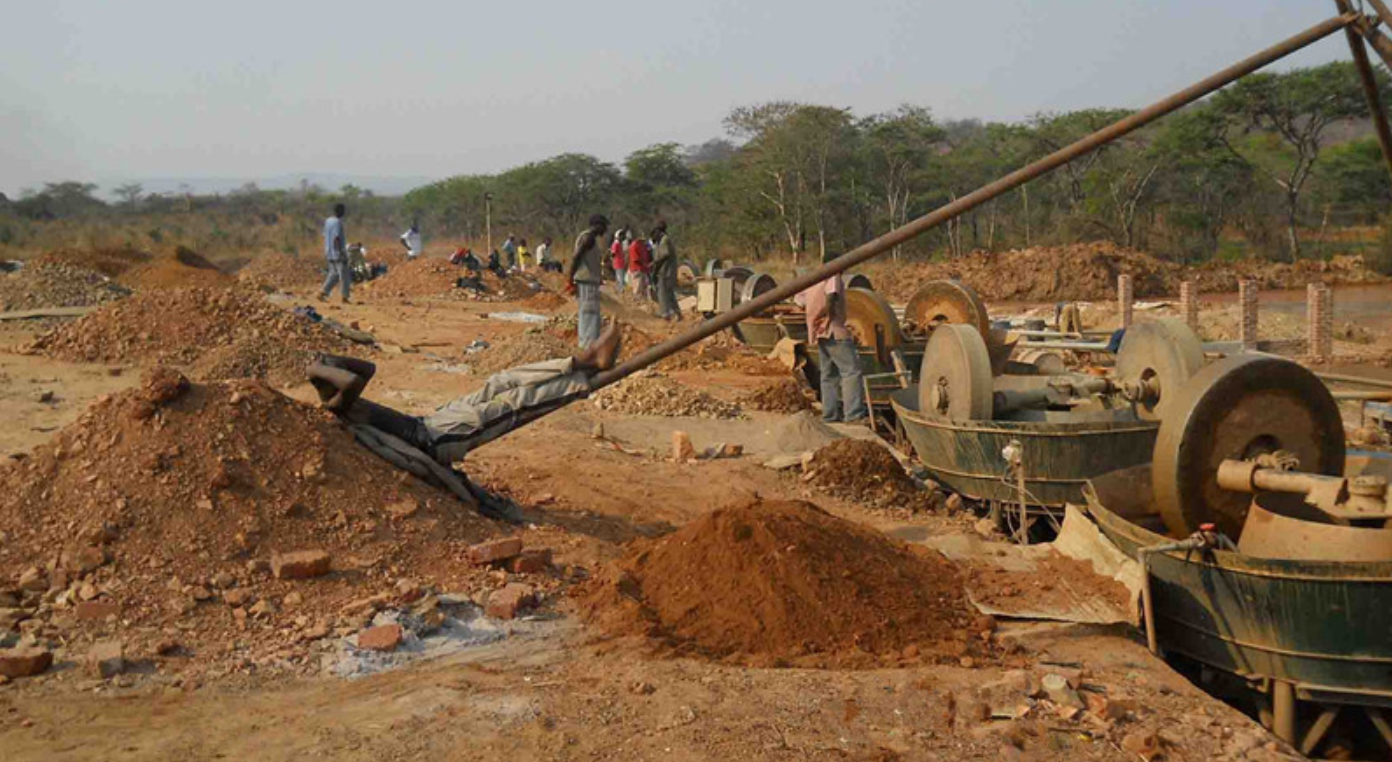

5. Factory manufacturing and scene
