    10/100M Fiber Optic Ethernet Switch

    Ask Lasest Price
    Brand Name : OLYCOM
    Model Number : TA723-FE/XX
    Certification : CE, RoHS, FCC
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C, D/A, D/P, MoneyGram
    Supply Ability : 6000 sets per month
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

    10/100M Fiber Optic Ethernet Switch

    10/100M 5 Port Fiber Optic Switch With 2 Fiber Ports + 3 RJ45 Ports BIDI SC

    Introduction


    TA723-FE/XX 2 fiber to 3 UTP 5 Port fiber optic switch uses 1X9 fiber modules which supports multimode or single mode dual fiber, bi-directional single fiber. The transmission distance is 2km max on MMF and 100km max on SMF. Standard in-stock fiber interface is SC. ST and FC available upon requests.

    Key Features


    1. 2 x SMF/MMF, simplex/duplex fiber port

    2. 3 x 10/100M auto-sensing Half/Full duplex RJ45 ports
    3. Excellent cooling system with unique HIC solution
    4. Follow control and broadcast storm control

    5. IEEE802.3/u/x compliant

    6. Conspicuous LED indicators for power/link diagnose/data

      50,000 hours MTBF

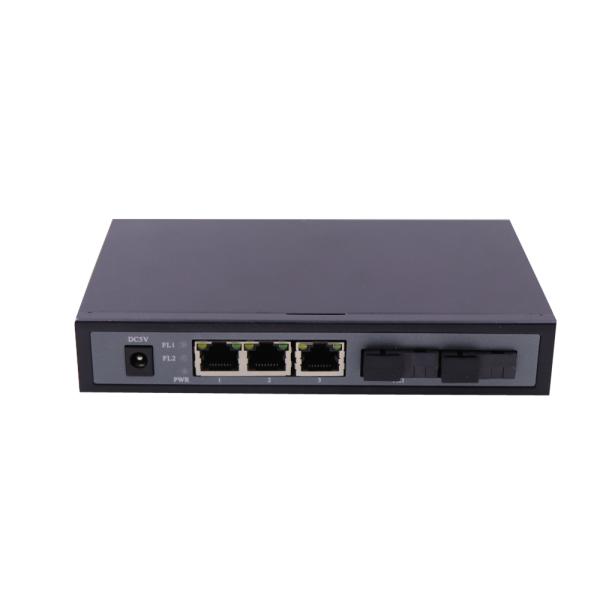

    Note: product picture here is single fiber (WDM), dual fiber also is optional. Kindly contact us for more details.


    Specification

    StandardIEEE802.3, IEEE802.3u, IEEE802.3x
    ProtocolCSMA/CD
    Fiber2 x Single fiber or Dual fiber
    DistanceSingle fiber SM: 20-100km, Dual fiber MM: 1km, Dual fiber SM:20-120km
    Optical interfaceSC (ST, FC)
    Ethernet Interface3x MDI/MDIX RJ45 ports
    Power supplyDC5V 1A (external power)
    Operating temperature0℃-50℃
    Storage temperature-30℃-60℃
    Humidity5%~90% non-condensing
    Dimension-standalone106mm ×83mm ×22mm
    Weight0.5 kg (Gross Weight)


    Application

    1. Where 2 FX needs to be extended to several copper ports

    2. 2 fiber source to multi-users

    3. Offices and work groups

    4. Schools

    5. Power supply stations



    Order Details

    TA723-FE/M2-SC10/100Mbps, 2 fiber to 3 UTP, dual fiber, MMF, SC, 2Km
    TA723-FE/S20-SC10/100Mbps, 2 fiber to 3 UTP, dual fiber, SMF, SC, 20Km
    TA732S/U-FE/S20-SC10/100Mbps,3 fiber to 2 UTP, single fiber, SMF,SC,20Km
    TA712-FE/S20-SC10/100Mbps, 1 fiber to 2 UTP, dual fiber, SMF, SC, 20Km
    TA714-FE/S20-SC10/100Mbps, 1 fiber to 4 UTP, dual fiber, SMF, SC, 20Km
    TA717-FE/S20-SC10/100Mbps, 1 fiber to 7 UTP, dual fiber, SMF, SC, 20Km
    TA732-FE/S20-SC10/100Mbps, 3 fiber to 2 UTP, dual fiber, SMF, SC, 20Km
    TA726-FE/S20-SC10/100Mbps, 2 fiber to 6 UTP, dual fiber, SMF, SC, 20Km
