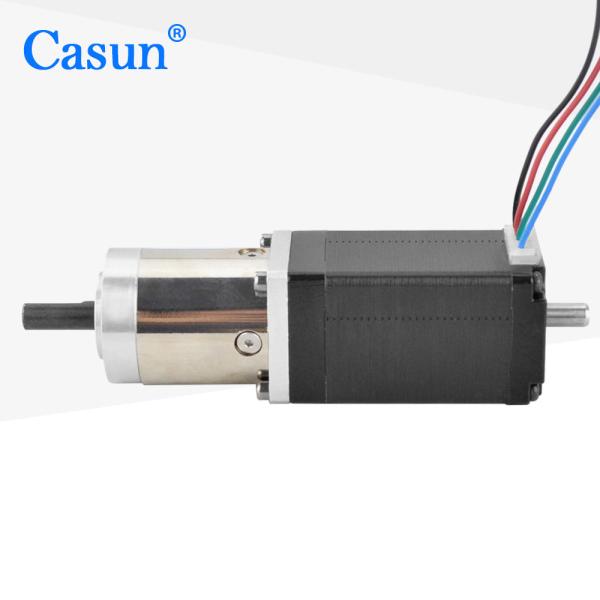

    Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot

    Ask Lasest Price
    Brand Name : Casun
    Model Number : 28SHD4301-19G
    Certification : CE,ROHS,ISO
    Price : $24-$35
    Payment Terms : D/A, T/T, L/C, D/P
    Supply Ability : 40000+PCS+Month
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    Casun 28*40.5mm NEMA 11 Gearbox Stepper Motor 0.95A stepping motor 3.6V AR3 Open Source Robot

    CASUN Stufe stufe 28*28*40.5mm NEMA 11 Geared Stepper Motor 0.95A stepping motor 3.6V AR3 Open-Source Robot


    Planetary Gearbox with 28*28*40.5mm Casun 0.95A Nema 11 Stepper Motor


    Micro Geared Stepper Motor with Planetary Gearbox and Small Gear Stepper Motor 28*28*40.5mm NEMA 11


    In a range of sizes, the 28mm Hybrid Stepper Motor Series provides strong holding torque.


    To lessen vibration and achieve a greater step resolution, use with a microstepping driver.


    Select a standard version or ask for a specially configured version.


    Features:

    • Bipolar or unipolar versions available

    • Hybrid stepper construction

    • Available in single or double shaft versions

    • CE and RoHS approved

    • Customizations on request

    Dimensions


    Motor Specifications

    Step Angel


    1.8 °

    Fram Size


    28 mm

    Number of Phase


    2 Phase

    Rated Current


    0.95 A

    Holding Torque


    100mN.m

    Resistance


    3.8 om

    Inductance


    2 mH

    Rotor Inertia


    12g-cm²

    Motor weight


    0.25kg

    Gear Reduction Ratio


    19:1

    Connection


    Bipolar


    Operating Specifications


    Motor


    Step Angle: 1.8°

    Maximum Temperature :80°C maximum

    Ambient Temperature: -20 °C to 50°C

    Storage Temperature -20: °C to 100°C

    Humidity Range (%) :85% or less, non-condensing

    Magnet Wire Insulation :Class B 130 deg C

    Insulation Resistance :100M Ohm at 500 VDC

    Dielectric Strength :500 VDC for 1 min


    Gear Box


    Housing Material:Metal
    Bearing at Output:Ball Bearings
    Max.Radial Load(12mm from flange):≤80N
    Max.Shaft Axial Load:≤30N
    Radial Play of Shaft (near to Flange):≤0.06mm
    Axial Play of Shaft:≤0.3mm
    Backlash at No-load:1.5°


    Torque Curves


    Submodels

    Motor LengthLength of GearboxRaioEfficiency
    34 mm

    40 mm

    48 mm

    60 mm
    27.2 mm3.7190%
    5.18
    35 mm13.7680%
    19.2
    26.8
    42.7 mm5170%
    71
    99.5
    139


    Download


    If our basic motor is unable to satisfy your needs, we can modify the motor to do so.


    Special shafts, winding parameters, installation measurements, lead wires with unique specifications, connections, etc. are only a few examples of customized content.

    Options:
    Encoder | Brake | Gearbox | Shaft


    Please click the "Get a quote" button below to tell us your requirements.
