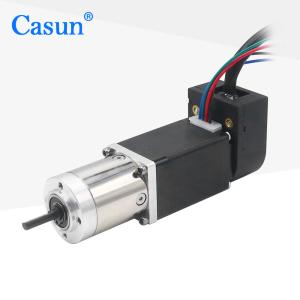

    0.67A Nema 11 High Precision Gearbox Stepper Motor 55mN.M For Coordinate Measuring Instrument

    Ask Lasest Price
    Brand Name : Casun
    Model Number : 28SHD4111-5G
    Certification : CE,ROHS,ISO
    Price : $16-$25
    Payment Terms : D/A, T/T, L/C, D/P
    Supply Ability : 40000+PCS+Month
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    0.67A Nema 11 High Precision Gearbox Stepper Motor 55mN.M For Coordinate Measuring Instrument

    Casun 0.67A Nema 11 High Precision Gearbox Stepper Motor 55mN.M Stepping Motors For Coordinate Measuring Instrument

    28*28*27.5mm Casun 0.67A Nema 11 6.12V Geared Stepper Motor with Planetary Gearbox

    Small Gear Stepper Motor 28*28*27.5mm Micro Geared Stepper Motor with Planetary Gearbox NEMA 11

    The 28mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

    Use with a microstepping driver to reduce vibration and achieve higher step resolution.

    Choose a baseline version or request your own customized configuration.


    Features:

    • Bipolar or unipolar versions available

    • Hybrid stepper construction

    • Available in single or double shaft versions

    • CE and RoHS approved

    • Customizations on request

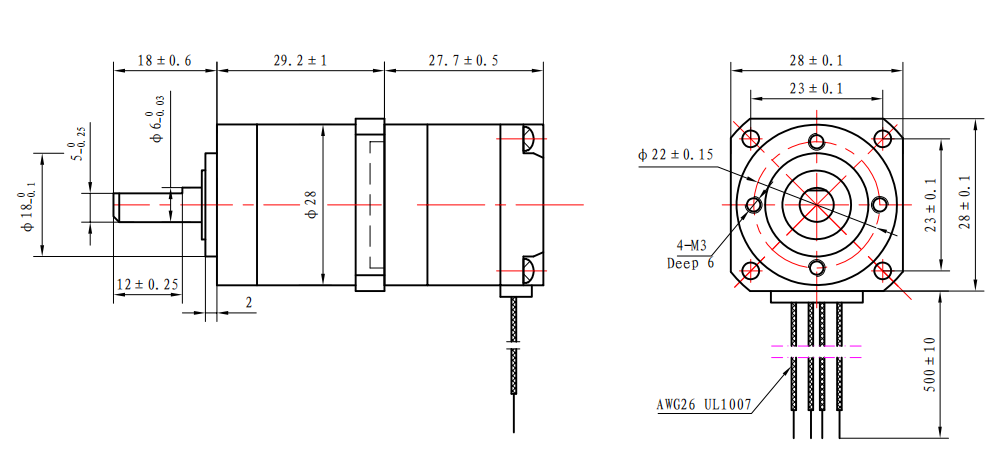

    Dimensions


    Motor Specifications

    Step Angel


    1.8 °

    Fram Size


    28 mm

    Number of Phase


    2 Phase

    Rated Current


    0.67 A

    Holding Torque


    55mN.m

    Resistance


    9.2Ohm

    Inductance


    5.7 mH

    Rotor Inertia


    9.2g-cm²

    Motor weight


    0.2kg

    Gear Reduction Ratio


    5.18:1

    Connection


    Bipolar


    Operating Specifications


    Motor


    Step Angle: 1.8°

    Maximum Temperature :80°C maximum

    Ambient Temperature: -20 °C to 50°C

    Storage Temperature -20: °C to 100°C

    Humidity Range (%) :85% or less, non-condensing

    Magnet Wire Insulation :Class B 130 deg C

    Insulation Resistance :100M Ohm at 500 VDC

    Dielectric Strength :500 VDC for 1 min


    Gear Box


    Housing Material:Metal
    Bearing at Output:Ball Bearings
    Max.Radial Load(12mm from flange):≤80N
    Max.Shaft Axial Load:≤30N
    Radial Play of Shaft (near to Flange):≤0.06mm
    Axial Play of Shaft:≤0.3mm
    Backlash at No-load:1.5°


    Torque Curves


    Submodels

    Motor LengthLength of GearboxRaioEfficiency
    34 mm

    40 mm

    48 mm

    60 mm
    27.2 mm3.7190%
    5.18
    35 mm13.7680%
    19.2
    26.8
    42.7 mm5170%
    71
    99.5
    139


    Download


    If our standard motor cannot meet your needs,

    we can customize the motor according to your needs


    Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

    Options:
    Encoder | Brake | Gearbox | Shaft


    Please click the "Get a quote" button below to tell us your requirements.
