Description of transformer core stacking table FZT-5T

Transformer core stacking table FZT-5T is a special tilting table, which is mainly used to stack silicon steel sheet for making transformer cores. The transformer core stacking table is provided with a hydraulic station to drive the table to tilt the stacked core, which makes the stacked core be taken away from the table easily. The transformer core stacking table features easy operation and so on.


Quick details of transformer core stacking table FZT-5T

• Platform size:2000x1600mm
• Platform height from the floor:1000mm
• Maximum capacity:5000kg
• Maximum thickness of stacking: 600mm
• Power: 3kw
• Color: optional

Main components of transformer core stacking table FZT-5T

• Main frame
• Hydraulic station
• Linear guide
• Control panel
• Cylinder
• Motor

Main Parameters of transformer core stacking table FZT-5T

Typical standard specifications of transformer core stacking table FZT-5T are shown below, however, the transformer core stacking table can also be manufactured as requested.

Fig 1: Transformer core stacking table FZT-5T's full view

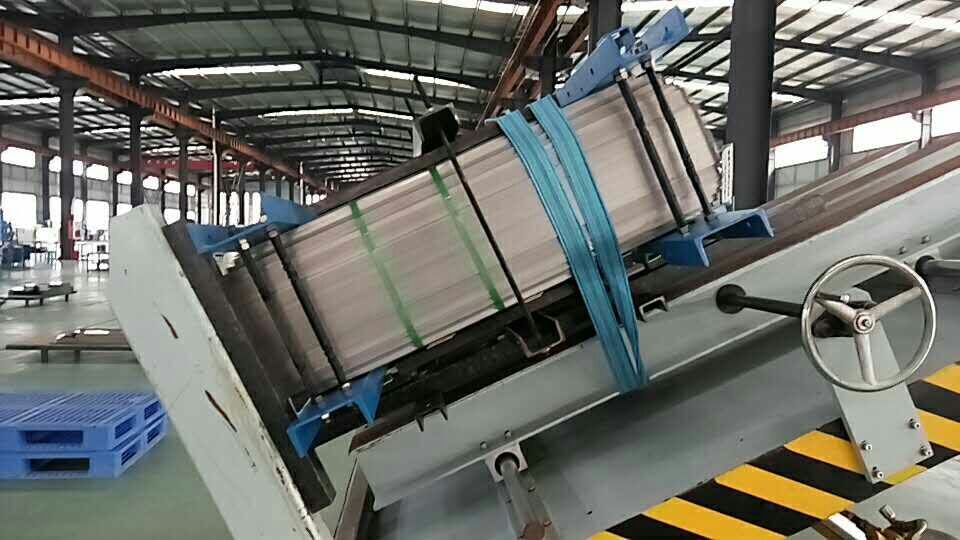

Fig 2: Transformer core stacking table FZT-5T's tilting stacked core
