    5A NEMA 34 Closed Loop Stepper Motor Kit 4 Motor 4 Driver 4 Power Supply 1 Mach3

    Ask Lasest Price
    Brand Name : Casun
    Model Number : 86HS12N+HB860H
    Certification : CE,ROHS,ISO
    Price : $443-$450
    Payment Terms : D/A, T/T, L/C, D/P
    Supply Ability : 40000+PCS+Month
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    5A NEMA 34 Closed Loop Stepper Motor Kit 4 Motor 4 Driver 4 Power Supply 1 Mach3

    5A 86*86*188mm NEMA 34 Closed Loop Stepper Motor kit 4 motor+4 Driver+4 Power supply+1 mach3


    NEMA 34 Steppper Motor with Magnetic Encoder 86*86*188mm 5A

    The 86mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

    Use with a microstepping driver to reduce vibration and achieve higher step resolution.

    Choose a baseline version or request your own customized configuration.


    Features:

    • High torque and high precision

    • For high-tech industry and electronic industry equipment

    • Available in single or double shaft versions

    • Established in China for 12 years and has served more than 800 customers.

    • Professional research and development manufacturing

    Appearance

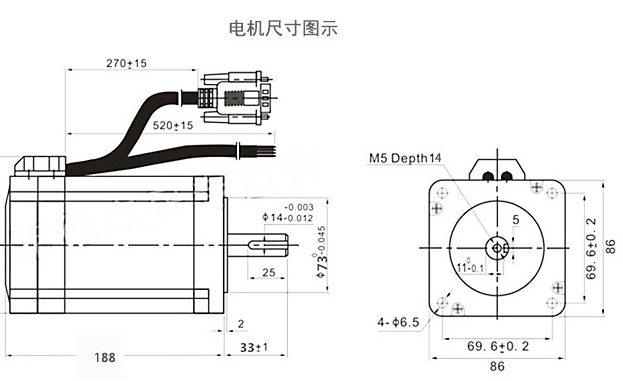

    Dimensions

    Motor Specifications


    Step Angel

    1.8 °

    Fram Size

    86mm

    Number of Phase

    2 Phase

    Rated Current

    5 A

    Holding Torque

    12N.m

    Resistance

    1.1ohm

    Inductance

    7.5 mH

    Rotor Inertia

    3600 g-cm²

    Motor weight

    5.5 kg

    Number of leads

    4

    Connection

    Bipolar

    Operating Specifications

    Step Angle: 1.8°

    Maximum Temperature :80°C maximum

    Ambient Temperature: -20 °C to 50°C

    Storage Temperature -20: °C to 100°C

    Humidity Range (%) :85% or less, non-condensing

    Magnet Wire Insulation :Class B 130 deg C

    Insulation Resistance :100M Ohm at 500 VDC

    Dielectric Strength :500 VDC for 1 min


    Torque Curves


    Submodels

    ModelHolding
    Torque
    Rated
    Current
    Resistance
    per phase
    Inductance
    per phase
    Detent
    torque
    Rotor
    inertia
    Lead
    wire
    Motor
    length
    mN.mAΩmHmN.mg.cm²No.mm
    60SHD42016500.6152050280445
    60SHD440115002.813.370450456
    60SHD460132004.20.753.7120580486
    60SHD6602250031.553.71205804

    Download

    If our standard motor cannot meet your needs,

    we can customize the motor according to your needs


    Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

    Options:

    Encoder

    Brake

    Gearbox

    Shaft


    Please click the "Get a quote" button below to tell us your requirements.
