    NEMA 34 Encoder Step Motor 12N.M Big Holding Torque Close Loop Stepper Motor For CNC

    Ask Lasest Price
    Brand Name : Casun
    Model Number : 86SHD4509-34Q
    Certification : CE,ROHS,ISO
    Price : $29.9-$39.99
    Payment Terms : D/A, T/T, L/C, D/P
    Supply Ability : 40000+PCS+Month
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    NEMA 34 Encoder Step Motor 12N.M Big Holding Torque Close Loop Stepper Motor For CNC

    NEMA 34 12N.m closed loop 1000PPR stepper motor kits with magnetic encoder for layer machines

    A closed-loop stepper motor system utilizes feedback to ensure accurate positioning. In this case, the system includes a magnetic encoder, which provides position feedback to the motor controller. This feedback allows the controller to monitor and adjust the motor's position in real-time, minimizing potential errors and improving overall accuracy.

    The 1000PPR (Pulses Per Revolution) specification indicates the resolution of the magnetic encoder. It means that the encoder generates 1000 pulses for every complete revolution of the motor shaft. This high resolution enables precise control and positioning in layer machines or any other application that requires accurate movement.

    Features:

    • High torque and high precision

    • For high-tech industry and electronic industry equipment

    • Available in single or double shaft versions

    • Established in China for 12 years and has served more than 800 customers.

    • Professional research and development manufacturing

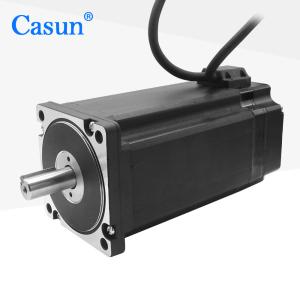

    Appearance

    Dimensions

    Motor Specifications


    Step Angel

    1.8 °

    Fram Size

    60mm

    Number of Phase

    2 Phase

    Rated Current

    6A

    Holding Torque

    12N.m

    Resistance

    1.5ohm

    Inductance

    7.2 mH

    Rotor Inertia

    3600g-cm²

    Motor weight

    5.15 kg

    Number of leads

    4

    Connection

    Bipolar

    Operating Specifications

    Step Angle: 1.8°

    Maximum Temperature :80°C maximum

    Ambient Temperature: -20 °C to 50°C

    Storage Temperature -20: °C to 100°C

    Humidity Range (%) :85% or less, non-condensing

    Magnet Wire Insulation :Class B 130 deg C

    Insulation Resistance :100M Ohm at 500 VDC

    Dielectric Strength :500 VDC for 1 min


    Torque Curves


    Submodels

    ModelHolding
    Torque
    Rated
    Current
    Resistance
    per phase
    Inductance
    per phase
    Detent
    torque
    Rotor
    inertia
    Lead
    wire
    Motor
    length
    mN.mAΩmHmN.mg.cm²No.mm
    60SHD42016500.6152050280445
    60SHD440115002.813.370450456
    60SHD460132004.20.753.7120580486
    60SHD6602250031.553.71205804

    Download

    If our standard motor cannot meet your needs,

    we can customize the motor according to your needs


    Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

    Options:

    Encoder

    Brake

    Gearbox

    Shaft


    Please click the "Get a quote" button below to tell us your requirements.
