    ASTM D3330 Computer Type Servo Horizontal Universal Testing Machine

    Ask Lasest Price
    Brand Name : ZL
    Model Number : ZL-8005
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 60 Sets
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

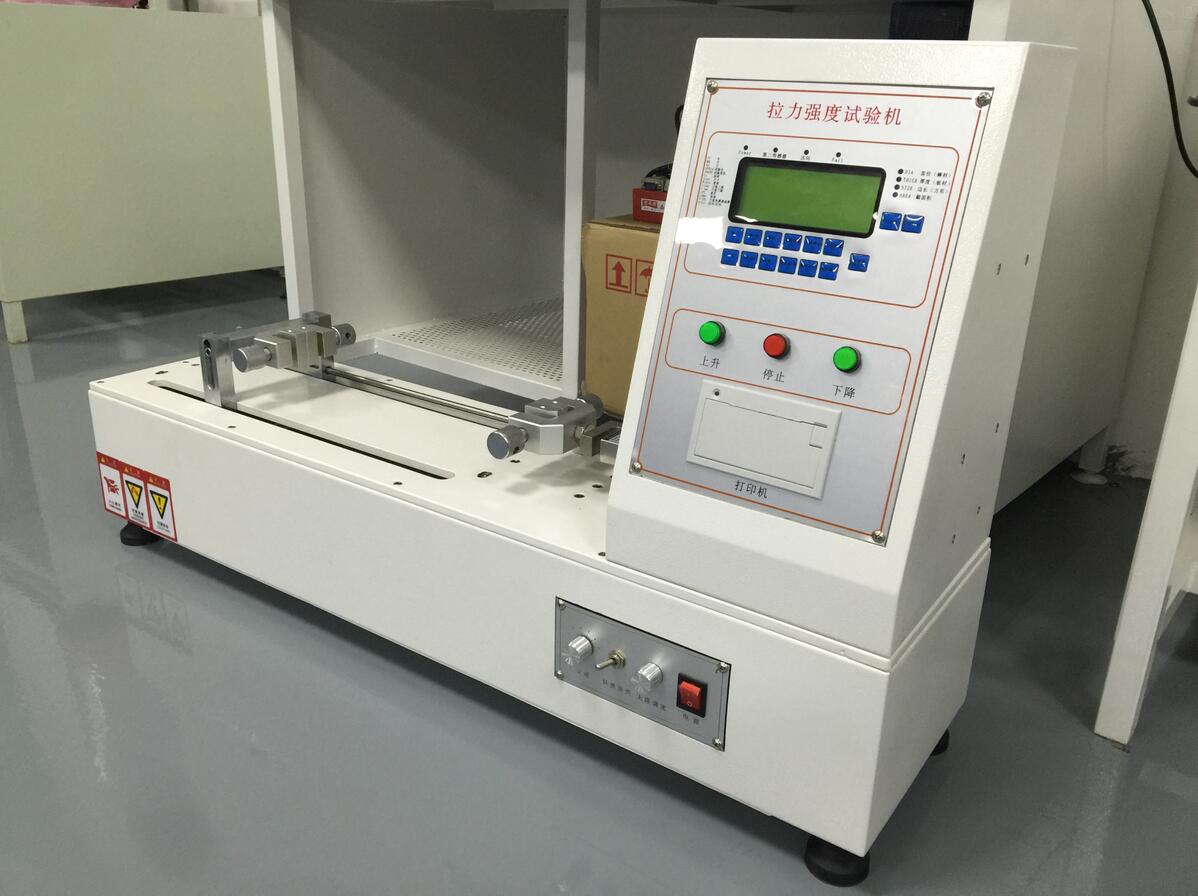

    ASTM D3330 Computer Type Servo Horizontal Universal Testing Machine

    ASTM D3330 Computer Type Servo Horizontal Universal Testing Machine


    Summary:


    Applicable to rubber and plastics, paper products, color printing packaging, adhesive tape, luggage handbags, textiles, pharmaceuticals, cosmetic, food, wire and electronics industries. Can test a variety of materials and finished products, the physical properties of semi-finished products, buy a variety of fixtures can do tensile, compression, holding, holding pressure, bending, tearing, peeling, adhesion, shear and other tests.

    This machine is a new design and development of large and medium-sized computer-based pull (pressure) force testing machine. The company completely changed the traditional material testing machine machine heavy, complex operation, the performance of a single shortcomings, the structure of the use of high-level paint processing of aluminum extrusion plate built-in high-precision, low resistance, gapless screw and guide column; monitoring and control system data acquisition And the operation speed is high, the test result can be printed out by the liquid crystal display or by the printer. Product performance is stable and reliable, high precision measurement, easy to understand.


    Parameter:


    ModelZL-8005 Computer Type Servo Hydraulic Horizontal Universal Testing Machine
    Max. Force500N,1KN,2KN,5KN optional
    Accuracy1 grade
    Force range1% ~ 100% FS
    Force accuracy±1% of reading
    Deformation indication accuracybetter than ± 1.0%
    Test speed50 ~ 500mm / min, can be adjusted
    Test maximum strokeup to 500mm without fixture
    Effective test spaceφ140mm
    Force unitswitching kgf, gf, n, kN, Ibf
    Stress unitswitching MPa, kPa, kgf / cm2, Ibf / in2
    Machine working table size30 × 26 × 100cm
    Machine weight:about 75kg
    Power supplyAC220V, 50 / 60Hz, 10A or specified

    Quality ASTM D3330 Computer Type Servo Horizontal Universal Testing Machine for sale
