Computer Servo Type Universal Testing Machine With Extensometer
Download Brief:
ZL-8001A
Computer servo testing machine.pdf
Equipment summary:
ZL-8001A Computer Servo Type Universal Testing Machine is a new
material testing machine that combined with the electronic
technology and mechanical transmission, it has accurate load speed,
range of force measurement, Has high accuracy and sensitivity for
the load, displacement measurement and control, it also can be
tested the constant-velocity loading, constant- velocity
displacement. This machine is simple to operate, especially
suitable for controlling quality in production line, This series of
machine is mainly applied to test the non-metallic and metallic
materials which the load is less than 2 ton.
Main feature:
Adopted photoelectric encoder to measure the displacement, the
controller uses the embedded single-chip microcomputer structure
with multi-function software, which combined with measurement,
control, calculation and storage. It can automatic calculate the
stress, rate of elongation (need to add with extensometers),
tensile strength, elastic modulus, automated statistical results;
automatically recorded the biggest point, breaking point, the
designated point value or the rate of elongation; Using computer to
display the dynamic curves in the testing process and process the
data, After testing, it can re-analysis and editing the data by
amplifying the curves through the graphics processing module,
printing reports, product performance reached the international
advanced level.
Main functions:
This test machine is applied to test the flexible material with
large deformation. such as rubber, plastics, leather and others to
complete the test of tensile, tear, adhesive strength, peel and
other tests, it is equipped with large deformative extensometer
which has the specialized terminology used in measurement of
specimen, suitable for testing large deformation of materials.
Applicable industry:
It is widely used in controlling the quality; Rubber & Plastics;
metallurgical iron and steel; manufacturing machinery; electronic
equipment; automobile production; textile fiber; wire and cable;
packaging materials and foodstuffs; instrumentation; medical
equipment; civilian nuclear energy; civil aviation; colleges and
universities; research Laboratory; inspection arbitration,
technical supervision departments; building materials, ceramic;
Petroleum & Chemical; other industries.
Corresponding standard :
Technical parameter:
| Model | ZL-8001A |
| Max load | 5KN,10KN, 20KN |
| Accurate grade | 1 % /0.5 % |
| Effective measuring range | 0.2％～100％(1grade)/0.4％～100％(0.5 grade) |
| Measuring accuracy | Display the value ±1％/Display the value±0.5％ |
| Tester resolution | Max load 1/200000,regardless of inside and outside,constant the
resolution |
| Load sensor | Basic configuration:sensor(max load): one
Extended configuration:can add more sensors |
| Effective testing width | 390mm(can be widened according to customer’s requirement ) |
| Effective Tensile stroke | 800mm;1000mm;1200mm,(can be increased the height according to
customer’s requirement) |
| Range of testing speed | 0.001～200mm/min ; 500mm/min (1000mm/min is option) |
| Accuracy of displacement measurement | Tolerance: ±0.5％/ tolerance: ±0.2％ |
| Deformation of measured system(according to the requirements) | Min span :10mm, Max range of deformation :800mm
Extended deformation :Min span: 25mm,50mm,100mm, range of
deformation :5mm,10mm,25mm |
| Accuracy of measured deformation | Tolerance :±0.5％ (according to requirement of customer to choose
the larger or small deformation) |
| Safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow two speeds to control,can jog |
| Return back | Manual or automatic operation,After the test, the moving iron
return to initial position with the highest speed by manual or
automatic operation |
| Overload protection | Overload 10％,automatic protection |

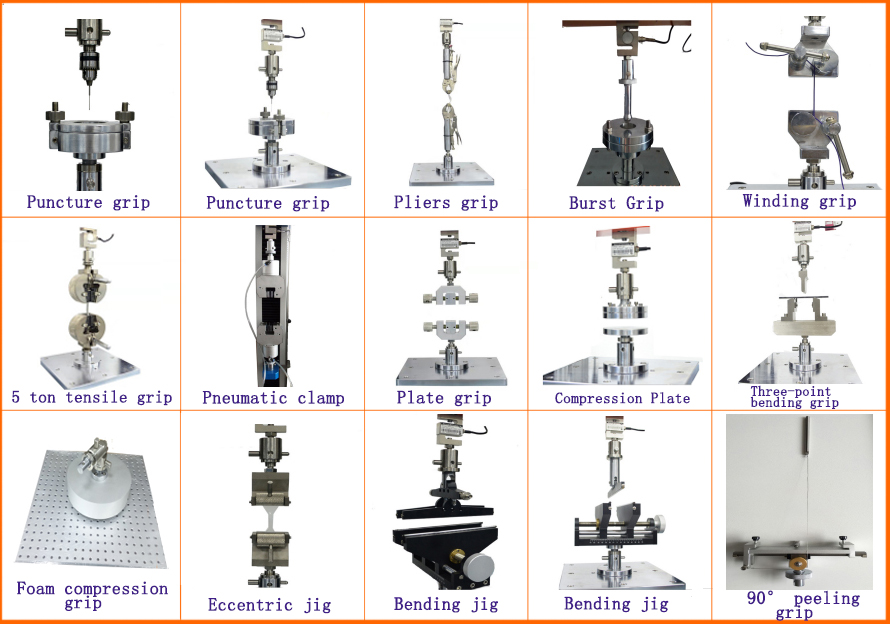

| Fixture | A set of tensile fixture |
| Machine size | 80x55x220cm(length*width*height) |
| Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply | 220V,50HZ, |
| Power | 0．4KW(depending on different demand of force, using different
motor) |
| Machine weight | (about)250 Kg |
| Units | Kg, N, LB, TON, can be exchanged. |
Software features:
1.The software description about Computer servo testing machine
A. Function of standard modular: provide users with the necessary
applications to the test, covering GB, ASTM, DIN, JIS, BS ... and
other testing standard specification.
B. Tested product information: provide users with the data to set
about the products, one time to input and re-use permanently . for
improving the accuracy, the data can be corrected by the formula
automatically.
C. Dual-Report Editor: provide users with the reported format that
users choose (testing program add EXCEL reported format, Extend the
previous single pattern of statements)
D. The data’s unit of length and force can be exchanged, unit of
force is T, Kg, N, KN, g, lb, unit of length is mm, cm, inch.
E. Auto-optimization of graphic scale, display the best measurement
of graphics. It can test the moving exchange in graphics. It has
the load - displacement, load - time, displacement - time, stress -
strain load -2 points extending maps, and lots of graph compared.
F. Test results can be output in EXCEL format.
G. Testing result can be automatically preserved or manual
preserved, after the test, it can automatically calculate the most
strength, up and down yield strength, loop method, best method,
non-proportional extended strength, tensile strength, compressive
strength, tensile strength at any point, constant load extension,
elastic modulus, rate of elongation, peel range of maximum force,
minimum force, average force, total energy, bending modulus, x%
load in break displacement, load X% in break displacement, and so
on . the test data can be stored in any disk.
H. Software has a capability that can output the before data.
2.The accessories about Computer servo testing machine
A. Warranted book within one-year and operating instructions.
B. A group of fixture
C. Testing software for tensile machine.
D. A set of brand computer, color printer
3. Items can be tested in the Computer servo testing machine
Common items: ( display data and calculation )
●tensile stress ● tensile strength
● tensile strength ● rate of elongation at break
●fixed stress ● rate of stress at break
●stress strength ● tear strength
●the value of force at any point ●rate of elongation at any point
●pull-out strength ● force of adhesion and the peak of force

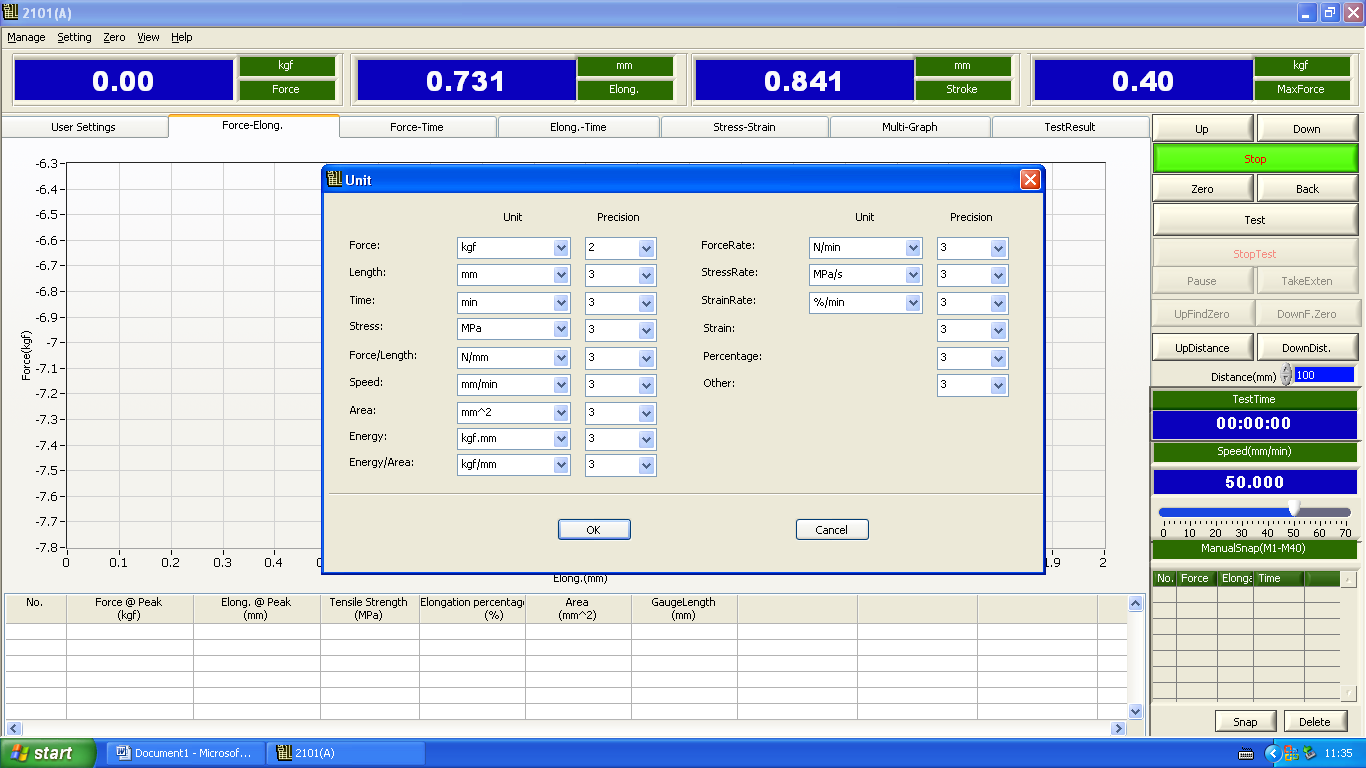

4. Computer servo control material testing machine software operation interface
1. Choose you need units, setting==>unit
2. There are so many units, just choose you need.
3. Connect computer and software online.
Setting==>Online==>COM1 or COM2..., after it shows success
connected.
5. Test results
6. Computer servo control material testing machine test curve
