IEC 60068-2-75 EVSE Test Equipment IK Pendulum And Vertical Impact
Test Device
Product Information For IK Pendulum And Vertical Impact Test
Device:
Standard: IEC60068-2-75:1997” Environment testing for electric and
electronic products Part2: Test methods Test Eh: Hammer tests IDT”
IEC62262:2002 "Degrees of protection provided by enclosures for
electrical equipment against external mechanical impacts (IK code)"
Sample: Electric vehicle charging pile
Test purpose: It is used for the mechanical strength test of
electric vehicle charging piles used for charging vehicles, and is
also used for the mechanical strength verification of metal sheets
such as transformer cabinets and non-metallic electric energy
metering cabinets
Test principle: According to the test Eha: pendulum, the impact
element is freely released at a certain height through a 1-meter
pendulum tube, and hits the sample at the lowest point in the
vertical direction, and through the conversion of gravitational
potential energy to kinetic energy, the purpose of impact testing
on the sample is achieved.
According to the test Ehc: vertical drop hammer, the impact element
is released freely at a certain height, falls vertically in a
static state, hits the sample, and through the conversion of
gravitational potential energy to kinetic energy, the purpose of
impact testing on the sample is achieved.
Structure For IK Pendulum And Vertical Impact Test Device:
1. The trolley structure is adopted, the mounting bracket seat can
be adjusted up and down, and the impact angle can be adjusted to
match the height requirements of charging piles of different sizes
and different impact points of charging piles
2. The motor is used to drive the lifting, which is easy to operate
3. Both pendulum and vertical impact are released by electromagnet
4. The pendulum has the function of anti-secondary impact
Technical Parameters For IK Pendulum And Vertical Impact Test
Device:
| Control and operation mode | Electrically integrated control, anj operation, with remote control
operation, electromagnet release |
| Test sample range | W (0.2~1m) *D (0.2~1m) *H (0.5~1.5m)
|
| Impact method | 1. Pendulum impact 2. Vertical impact |
| Impact energy | 20J (2,5,10,50J energy can be customized) |
| Main parameters of pendulum impact | 1. Impact component equivalent mass 5Kg±1% 2. A steel pipe with a pendulum length of 1000 mm, an outer

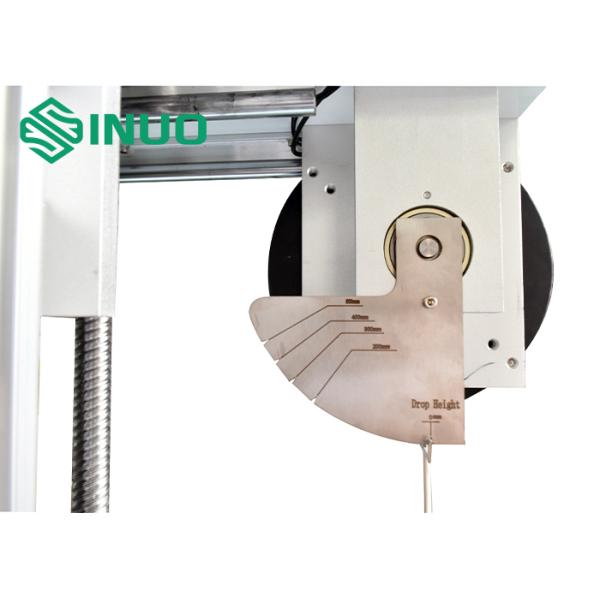

diameter of 15.9 mm, and a wall thickness of 1.5 mm 3. Swing vertical height (drop height): 0-500mm, scale display 4. The position of the impact point of the pendulum: adjustable up
and down by electric motor, stroke 300-1500mm 5. Fixation and release of the impact element: fixation and release
of the plug-in electromagnet 6. Anti-secondary impact function: brake disc brake |
| Main parameters of vertical impact | 1. Impact component equivalent mass 5Kg±1% 2. One piece of conduit with a flange mounting plate 3. Vertical drop height: 500mm, the conduit is fixed, and the
distance from the bottom of the impacting element to the bottom of
the conduit 4. Vertical impact point position: Electric up and down adjustable,
stroke 300-1500mm, horizontal mechanically adjustable, can extend
the equipment 800mm 5. Fixation and release of the impact element: Suction cup
electromagnet fixation and release |
| Bottom plate and frame | Thickened load-bearing steel base plate, four industrial aluminum
profile column frames |
| Way of moving | With support and roller feet, it can be moved to the position of
the impact point of the sample |
| Attached schedule | References for impact energy and impact element selection |
Attached: Table 1 Impact component characteristics
| Energy/J | ≤1 ±10% | 2 ±5% | 5 ±5% | 10 ±5% | 20 ±5% | 50 ±5% |
| Equivalent mass ± 2% kg | 0.25(0.2) | 0.5 | 1.7 | 5 | 5 | 10 |
| Material | Nylon | Steel |
| R/mm | 10 | 25 | 25 | 50 | 50 | 50 |
| D/mm | 18.5(20) | 35 | 60 | 80 | 100 | 125 |
| f/mm | 6.2(10) | 7 | 10 | 20 | 20 | 25 |
| r/mm | - | - | 6 | - | 10 | 17 |
| l/mm | Determined based on equivalent mass adjustment, see Appendix A |
Table 2 Drop height
| Energy/J | 0.14 | 0.2 | (0.3) | 0.35 | (0.4) | 0.5 | 0.7 | 1 | 2 | 5 | 10 | 20 | 50 |
| Equivalent mass/kg | 0.25 | (0.2) | 0.25 | (0.2) | 0.25 | (0.2) | (0.2) | 0.25 | 0.25 | 0.25 | 0.5 | 1.7 | 5 | 5 | 10 |
| Drop height ±1%mm | 56 | (100) | 80 | (150) | 140 | (200) | (250) | 200 | 280 | 400 | 400 | 300 | 200 | 400 | 500 |
| Note 1. See Note 3.2.2; Note 2. The energy unit joule (J) in this
part is derived from the standard gravitational acceleration (g),
and the value of g is rounded to 10m/s². |
Table 3 Correspondence between IK codes and their corresponding
collision energies
| IK code | IK00 | IK01 | IK02 | IK03 | IK04 | IK05 | IK06 | IK07 | IK08 | IK09 | IK10 |
| Collision energy/J | a | 0.14 | 0.2 | 0.35 | 0.5 | 0.7 | 1 | 2 | 5 | 10 | 20 |
| Note 1. If a higher collision energy is required, the recommended
value is 50J; Note 2. Some national standards use one digit to
represent the specified collision energy. In order to avoid
confusion with it, the characteristic number is represented by two
digits. |
| Unprotected according to this standard |
