| 001 | Internal Base Band Generator w/1 MRAM updated to 601 |
| 002 | Internal Base Band Generator w/ 32 MRAM updated to 602 |
| 003 | Enables ESG digital output connectivity with N5102A |
| 004 | Enables ESG digital input connectivity with N5102A |
| 005 | Hard Drive 6 Gbyte |
| 0BV | Service Documentation, Component Level |
| 0BW | Service Documentation, Assembly Level |
| 1A7 | ESG-C Series ISO 17025 compliant calibration with test data |
| 1CM | Rack mount without handle |
| 1CN | Handle kit |
| 1CP | Rackmount kit with front handles |
| 1E5 | |
| 1E5 | High-stability time-base |

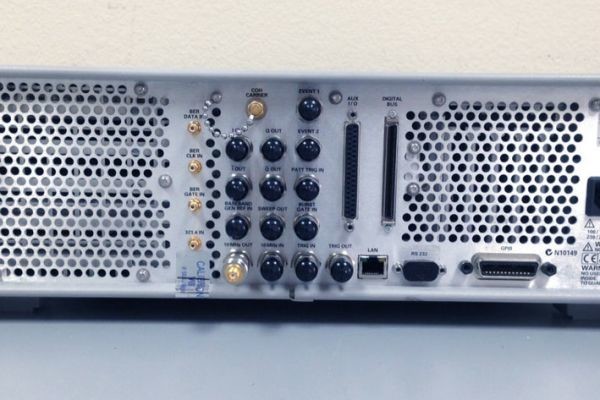

| 1EM | Moves all front panel connectors to rear panel |
| 221 | Waveform license 5-pack1 |
| 222 | Waveform license 5-pack2 |
| 223 | Waveform license 5-pack3 |
| 224 | Waveform license 5-pack4 |
| 225 | Waveform license 5-pack5 |
| 226 | Waveform license 5-pack6 |
| 227 | Waveform license 5-pack7 |
| 228 | Waveform license 5-pack8 |
| 229 | Waveform license 5-pack9 |
| 250 | Waveform license 50-pack1 |
| 251 | Waveform license 50-pack2 |
| 252 | Waveform license 50-pack3 |
| 253 | Waveform license 50-pack4 |
| 254 | Waveform license 50-pack5 |
| 255 | Waveform license 50-pack6 |
| 256 | Waveform license 50-pack7 |
| 257 | Waveform license 50-pack8 |
| 258 | Waveform license 50-pack9 |
| 259 | Waveform license 50-pack10 |
| 300 | GSM/EDGE basestation loop back BER test capability |
| 400 | WCDMA 3GPP (FDD) personalities |
| 401 | CDMA2000 and IS-95-A personalities |
| 402 | TDMA personalities (GSM, EDGE, NADC, PDC, PHS, DECT, TETRA) |
| 403 | Calibrated noise personalities |
| 404 | 1XEV-DO Signal Studio Software |
| 405 | P/O Wireless Lan Package opt 417 |
| 406 | Bluetooth Signal Studio S/W |
| 407 | Signal Studio for S-DMB |
| 408 | Signal Studio for Enhanced Multi-tone signals |
| 409 | GPS personality |
| 410 | P/O Wireless Lan Package OPT 417 |
| 411 | Signal Studio for TD-SCDMA (TSM) |
| 412 | |
| 414 | Option Package of 401 and 404 |
| 415 | Part of Option 417 WLAN Software Suite. |
| 417 | Signal Studio for 802.11 WLAN consists of Opt 405/410/415 |
| 418 | Signal Studio for HSDPA over W-CDMA |
| 419 | Signal Studio for 3GPP W-CDMA HSPA |
| 420 | Signal Studio for Pulse Building |
| 421 | Signal Studio for noise power ratio (NPR) |
| 422 | Scenario generator for GPS personality |
| 423 | |
| 501 | 250kHz to 1 GHz |
| 502 | 250kHz to 2 GHz |
| 503 | 250kHz to 3 GHz |
| 504 | 250kHz to 4 GHz |
| 506 | 250kHz to 6GHz |
| 601 | Internal baseband generator, 8 Msa memory with digital bus capability |
| 602 | Internal baseband generator, 64 Msa memory with digital bus capability |
| 701 | Standard Chassis |
| 702 | IEM Chassis |
| 703 | UN7 Chassis |
| 704 | UNB Chassis |
| 705 | Standard and 005 chassis |
| 706 | 1EM and 005 chassis |
| 707 | UN7 and 005 chassis |
| 708 | UNB and 005 chassis |
| 709 | UN7 and 300 Chassis |
| 710 | UN7 and 300 and 005 Chassis |
| 711 | UN7 and UNB Chassis |
| 712 | UN7 and UNB and 005 Chassis |
| 713 | 506 and UN7 Chassis |
| 714 | 506 and UN7 and 005 Chassis |
| 715 | 506 Chassis |
| 716 | 506 and 005 Chassis |
| 717 | 1EM and UN7 and 300 Chassis |
| 718 | 1EM and UN7 and 300 and 005 Chassis |
| 719 | 1EM and UN7 Chassis |
| 720 | 1EM and UN7 and 005 Chassis |
| 730 | MATERIAL FOR UNM + HCC |
| 731 | MATERIAL FOR 1EM + HCC |
| 791 | Implied by E4438C-OC-SOFTWR |
| 792 | Implied by E4438C-300 |
| A6J | ESG-C Series ANSI Z540 compliant calibration with test data |
| AB0 | Taiwan Quick Users Guide (Chinese localization) |
| AB1 | Korea Quick Users Guide (Korean localization) |
| AB2 | China Quick Users Guide (Chinese localization) |
| ABA | U.S. Quick Users Guide (English localization) |
| ABF | France Quick Users Guide (French localization) |
| ABJ | Japan Quick Users Guide (Japanese localization) |
| CD1 | CD-ROM - English documentation set |
| D01 | Hardware option for E4438C |
| D02 | Hardware option for E4438C |
| D03 | Hardware option for E4438C |
| D04 | Hardware option for E4438C |
| D05 | Hardware option for E4438C |
| D06 | Hardware option for E4438C |
| D07 | Hardware option for E4438C; 503,1EM,UNB,UNP,1E5 |
| D08 | Hardware option for E4438C; 503,1EM,UNB,UNJ,1E5 |
| D09 | Hardware option for E4438C; 504,UNM,UNN,UNP,1E5 |
| D10 | Hardware option for E4438C; 504,UNM,UNN,UNJ,1E5 |
| D11 | Hardware option for E4438C; 504,UNM,UNB,UNP,1E5 |
| D12 | Hardware option for E4438C; 504,UNM,UNB,UNJ,1E5 |
| D13 | Hardware option for E4438C (504/1EM/UNN/UNP/1E5) |
| D14 | Hardware option for E4438C (504/1EM/UNN/UNJ/1E5) |
| D15 | Hardware option for E4438C (504/1EM/UNB/UNP/1E5) |
| D16 | Hardware option for E4438C (504/1EM/UNB/UNJ/1E5) |
| D17 | Hardware option for E4438C (506/UNM/UNB/UNJ/1E5) |
| D18 | Hardware option for E4438C (506/1EM/UNB/UNJ/1E5) |
| H08 | enchancement to E4438C-408 |
| H13 | Signal Studio for WiMAX for Wireless MAN-OFDM physical layer |
| H14 | Improved Phase Noise performance for a specific frequency |
| H16 | Warranted +16dBm maximum leveled RF output over 250MHz to 3GHz with option 506 |
| H20 | Signal studio for pulse building for the E8267C opt. 420 to operate in the E4438C |
| H25 | Extends the lower limit to Swept-Sine frequency to 25 MHz for LF Out |
| H3V | Increases the I/Q output voltage from 1.5V pk-pk to 3.0V pk-pk for the E4438C |
| H58 | Provide ACLR <= 58db for multi-carrier WCDMA |
| HA3 | Tested 100 Hz phase noise at 6 GHz and 100 Hz spurs at 5.18 GHz |
| HA6 | Provide ACLR less than= - 60dbc for muti-carrier WCDMA |
| HA7 | Specify Non-harmonics for frequency 136 MHz to 174 MHz to be less than -75 dBc |
| HBC | Provides frequency from 4GHz up to 6GHz In and Out on the rear panel |
| HCC | .25 - 4 GHZ in/out on rear panel for Phase Coherent Carriers |
| HDS | Provides synchronized DSIM device clock |
| HEC | External Clock Input for synchronization of two or more ESG baseband generators |
| HEC | Provides External BBG Clock Input on Rear Panel |
| HF8 | Extends the Frequency to 6.5 GHz for the E4438C with unspecified performance |
| HM3 | 2nd BaseBand Generator, 8 MSA Memory with I/Q summing ratio and freq offset. |
| HM4 | 2nd BaseBand Generator, 64 MSA Memory with I/Q summing ratio and freq offset. |
| HP3 | Second internal baseband generator for polar modulation with synchronization between two baseband generators, 8 Msa memory |
| HP4 | Second internal baseband generator for polar modulation with synchronization between two baseband generators, 64 Msa memory |
| LIC | License CD-ROM |
| N5102A | BROADBAND STUDIO DIG SIGNAL MODULE |
| N6171A | MATLAB Software |
| N6171A-M01 | MATLAB - Basic Package |
| N6171A-M02 | MATLAB - Standard Package |
| N6171A-M03 | MATLAB - Advanced Package |
| N7060A-101 | Signal Studio for 3GPP W-CDMA with HDSP/HSUPA |
| N7600B | Signal Studio for 3GPP W-CDMA FDD |
| N7600B-1F1 | Connect to E4438C signal generator, fixed, 1 month license |
| N7600B-1FP | Connect to E4438C signal generator, fixed, perpetual license |
| N7600B-1TP | Connect to E4438C signal generator, transportable, perpetual license |
| N7600B-2F1 | Connect to E8267D signal generator, fixed, 1 month license |
| N7600B-2FP | Connect to E8267D signal generator, fixed, perpetual license |
| N7600B-2TP | Connect to E8267D signal generator, transportable, perpetual license |
| N7600B-3F1 | Connect to N5162A/N5182A signal generator, fixed, 1 month license |
| N7600B-3FP | Connect to N5162A/N5182A signal generator, fixed, perpetual license |
| N7600B-3TP | Connect to N5162A/N5182A signal generator, transportable, perpetual license |
| N7601A-SW1 | 1XEV-DO REV.A |
| N7601B | Signal Studio for 3GPP2 CDMA |
| N7602B | Signal Studio for GSM/EDGE |
| N7612A-101 | Signal Studio for TD-SCDMA (LCR) |
| N7613A-101 | Signal Studio for 802.16-2004 WiMAX |
| N7615A-101 | Signal Studio for 802.16 OFDMA |
| N7615B | Signal Studio for 802.16 WiMAX |
| N7616A-101 | Signal Studio for T-DMB |
| N7620A | Signal Studio for pulse building |
| N7620A-101 | License: Internal baseband generator, E4438C |
| N7621-EFP | Enhanced Multitone, fixed, perpetual license |
| N7621-ETP | Enhanced Multitone, transportable, perpetual license |
| N7622A | Signal Studio Kit |
| N7623A-101 | Signal Studio for DVB |
| QUO | N7617B-1FP 802.11 WLAN - connect to E4438C signalá generator, fixed, perpetual license |
| R-50C-011-3 | Agilent Calibration - 3 years |
| R-51B-001-3C | Return to Agilent Warranty - 3 years |
| RMKT | Agilent Refurbished Product (Do Not Use - Certiprime Option) |
| SK1 | SW KIT- Pre-Installed SW LIC Notice |
| SK2 | SW KIT- SW CD, Pre-Installed SW LIC Notice |
| SP1 | Provides jitter injection for signal studio software |
| SP2 | Provides dynamic sequencing capability in the E4438C |
| U03 | R2C: Core FW Enhancements C.05.84 |
| UBN | |
| UK6 | Commercial calibration certificate with test data |
| UN7 | Internal Bit Error Rate analyzer |
| UNB | High output power with mechanical attenuator |
| UNJ | Enhanced phase noise performance [includes 1E5] |
| UNM | Standard Front and Rear Panel Connector Configuration |
| UNN | Standard output power with electronic attenuator |
