    Professional Automatic Armature Winding Machine For Hook Commutator

    Ask Lasest Price
    Brand Name : WEDE
    Model Number : WD-1-WAW
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 15PCS/Month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

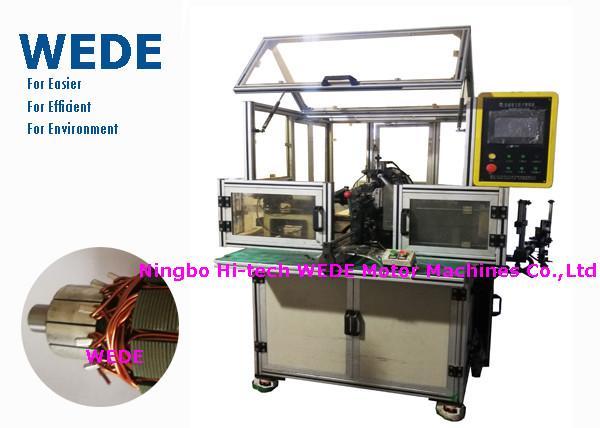

    Professional Automatic Armature Winding Machine For Hook Commutator

    Armature winding machine double flyers is suitable to do winding for the armature with hook commutator even slots such as power tool, mixer, wiper motor, window lift motor, electric chair motor, vacuum cleaner etc.


    WD-1-SAW armature winding machine parameter:

    Wire diameter0.15-1.1 mm
    Armature diameter20-60 mm
    Stack length10-60 mm
    Shaft diameter3-15 mm
    Shaft lengthless than 250mm
    Armature Sloteven slot
    Turn number0-9999
    Commutator diameter18-40 mm
    Winding speed0-2500 rpm
    Indexing speed0-3000rpm
    Action modeManual and Auto
    Air supply pressure4-6 Kg/cm2
    The machine total power4.0 KW
    Voltagethree phase AC380V±10%, 50/60 Hz
    Weight600 Kg
    Dimension2000X1300X1800mm

    Main Components:
    Indexing servo motor: 750WX1 spindle: MITSUBISH

    Winding servo motor 1500WX2 spindle: MITSUBISH
    PLC: FX3G, MITSUBISHI
    Interface module: MITSUBISHI
    Extension module: MITSUBISHI
    Touch screen: 7”, MITSUBISHI
    Electromagnetic valve: SMC
    Cylinder: SMC and CKD(2 pieces)
    Air source handling unit: AIRTAC
    Buffer: AIRTAC
    Floating joint: AIRTAC
    Winding transmission base: cast iron
    Indexing transmission base: nodular cast iron
    Winding flyer: aluminum die-cast alloy, double spindle balancing adjustment (easy for disassembling)
    Indexing spindle: design according to customer’s commutator
    Winding tooling: Cr12,integral quenching HRC50-55
    Loading structure: cylinder loading (linear bearing + guiding rod)
    Provided your armature is with riser commutator, you can use WD-2B-TAW



    Customer Service
    Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.

    • Your inquiry related to our products or price will be replied in 24hrs.
    • Keep informing our customer production process and help arrange quality checking in the factory if necessary.
    • 1 year warranty for the non-wearing parts which not resulting from improper operation free of cost, and through the machine life, we supply the replacement with extra charge.
    • Buyer can dispatch technician to our factory for free training before delivery.
    • For essential equipment failure, we can give remote guiding by mails, videos and face talk. If customers need our engineer to be at site for support, also ok while the customer borne its travel cost.

    Previous step: insulation paper inserting machine

    Next step: wedge insertion machine
