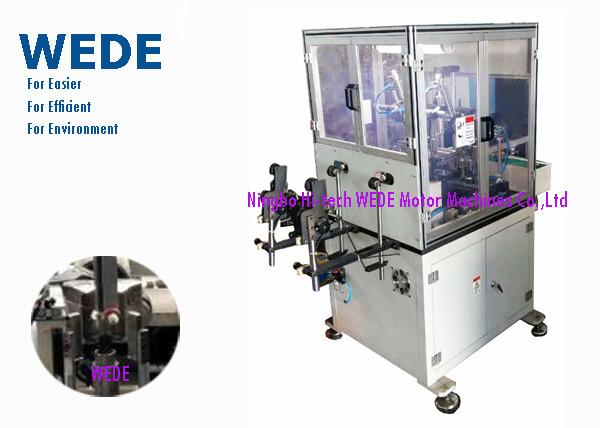

Servo Motor Armature Winding Machine 3 Phases 800 X 1000 X 1750mm Size

Application:
Ceiling Fan Coil Winding Machine is suitable for winding ceiling fan stator, external armature such as frequency conversion alternator and generator armature.

External armature ( stator ) winding machine can do coils winding as insertion style. The armature winding machine do the auto winding, auto bridge wire, auto wire cut.

Photos of wound part in the stator winding machine,

Main parameter:

Main composition:

Control system: OMRON PLC

HMI:WEINVIEW,7"

Winding spindle motor:PANASONIC OR MITSUBISHI 1.5KW, 1 set

Indexing spindle motor:PANASONIC OR MITSUBISHI 750W, 1 set

Bearing:NSK

Railway:HIWIN

Tensioner:Magnetic damping style

A professional supplier of motor machines with motor components, MCB machines, induction cooker coils machines and induction cooker named Ningbo Hi-tech WEDE Motor Machines Co.,ltd makes fully preparation to open our arms to welcome your specific inquiries.

Joining hands with 6 factories, WEDE give customers one stop turnkey packaging service.

They are locating at,

Factory 1:50 west JinAiFeng technology zone FuHua Road, Suzhou (DongGuan,WenZhou)

Factory 2:No.165 ShengXin Road, BaChe development zone,Suzhou

Factory 3:No.74 QingSong Road,Zhenlu town,WuJin district,Changzhou

Factory 4:No.66 XiaoWang village, QinXinCun,YaoGuan town,WuJin district,Changzhou

Factory 5:YuLong Bridge SanMen,Taizhou (Yongkang)

Factory 6:150 southwest cross of WuFangShaDaDaoZhong and Xi,NanHai District,FoShan(Huzhou)

Covering products are

Motor Machines:

rotor casting machine, rotor runner press, turning machine, shaft press, end flowers press, commutator press, paper inserting machine, armature winding machine, stator winding machines, coils inserting machine with wedge insertion, wedge inserting machine, coils forming machine, lacing machine, armature welding machine, balancing machine, testing machine, varnish machine, sleeve cutting machine, terminal press

Motor Components:

Ferrite core, magnet, commutator, shaft, bearing, stack core

MCB machines:

MCB coils winding machine, MCB coils forming machine, MCB holder terminal assembly machine, MCB printing machine

Induction cooker coils machines:

wires strands binding machine, coils winding machine, gluing machine, ferrite core inserting machine, heating press

Induction cooker:

Commercial application induction cooker, steamer, noodles cooker

WEDE team promise to give you fully heart service to obtain long term multi-parties wins cooperation. Welcome you join in us for this target too.
