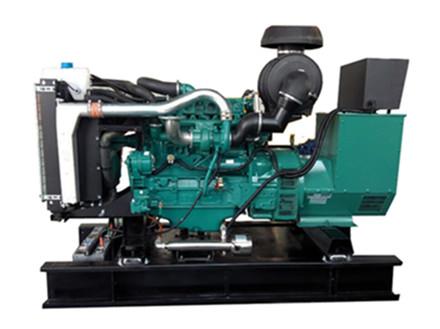

250kVA Open Diesel Generator Set High Integration 50hz Diesel Generator

Rated Power 68-200kWe Volvo Diesel Generator Set Base Type Oil Tank Land Power Station
1. Reliable power quality: The diesel generator set produced by our company uses the world-renowned brand Volvo engine (VOLVO). Brief introduction of Volvo engine: Volvo company was formally established in 1927. After more than 90 years of accumulation, the power range covers 98~800 horsepower. It is widely used in construction machinery, mining machinery, agricultural machinery, ships, and oil and gas fields.
2. Reliable generator quality: The diesel generators produced by our company are equipped with generators with reliable quality and high market holdings, such as ① Stamford generator (STAMFORD) ② Mecc alte generator (mecc alte) ③ Marathon power generation Generators with excellent performance such as marathon.
3. The control system has high precision: the diesel generator set control system produced by our company uses the LCD screen controller,Such as: deep sea controller (DSE) has the characteristics of high integration and high management accuracy.
4. The overall performance of the unit is reliable: In addition to choosing well-known brand power, brand output generators, and precise controllers, our company also uses well-known brands for other components such as Schneider for circuit breakers and camel for batteries. The quality of the whole machine is reliable, and it is safe and convenient to use.
5. Super high cost performance,Free solution before purchasing,Existing equipment provides free repair and maintenance services,According to the different needs of customers, we have a team of experts to customize project solutions for you free of charge,Durable, safe and reliable, with a service life of more than 15 years.
6. Alternator - Low reactance 2/3 pitch windings; low waveform distortion with non-linear loads, fault clearing short-circuits capability, and class H insulation

Engine Technical Datasheet
Engine Series	TAD53/TAD73	Brand	VOLVO
Rated Power	75-219kW	Number of Cylinders	4/6
Displacement	4.76-7.15 Liters	Governor	Electronic control(ECU)
Starting method	DC12V/DC24V	Lubricant Capacity	13-34L

Alternator Technical Datasheet
Rated Power	68-200kWe	Brand	Stanford
Type	3phase 4wire	Protection Grade	IP23
Voltage regulation	AVR	Excitation	brushless PMG
Insulation Grade	H

Control system Technical Datasheet

1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines. 2,Microcomputer can be set on the control panel input, output, alarm, delay and other 3,parameters.Maintenance, manual, automatic and other modes of operation. Display Data 1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator 2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh Detection and protection function 1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm 2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit

Optional

Factory reserve

The container diesel generator set produced by our company uses well-known engines such as CUMMINS, Perkins, and VLOVO, and other brands to support the generator. Products with reliable quality and high market retention are selected, and brands such as ① Stanford generator (STAMFORD), ② Meiaudi generator (mecc alte), ③ Marathon generator, and other generators with excellent performance are selected, with a power coverage of 10-3000 kWe.Subvert the traditional sales model, implement the factory direct sales model, directly target end customers, save intermediate links, and the price is more favorable
