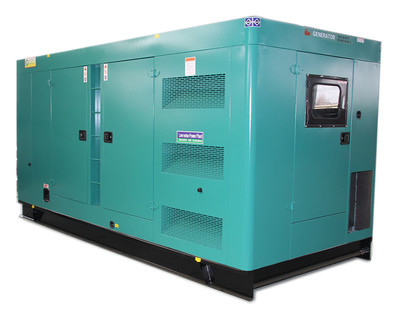

350kVA 3 Phase Diesel Generator ISO9001 Power Generator Set Base Type

Rated Power 350kVA Volvo Diesel Generator Set Base Type Oil Tank Land Power Station

1. Reliable power quality: The diesel generator set produced by our company uses the world-renowned brand Volvo engine (VOLVO). Brief introduction of Volvo engine: Volvo company was formally established in 1927. After more than 90 years of accumulation, the power range covers 98~800 horsepower. It is widely used in construction machinery, mining machinery, agricultural machinery, ships, and oil and gas fields.

2. Reliable generator quality: The diesel generators produced by our company are equipped with generators with reliable quality and high market holdings, such as ① Stamford generator (STAMFORD) ② Mecc alte generator (mecc alte) ③ Marathon power generation Generators with excellent performance such as marathon.

3. Wide power coverage: The power of diesel generator sets produced by our company covers 20-1200kWe, which can meet various electricity needs of users.

4. The overall performance of the unit is reliable: In addition to choosing well-known brand power, brand output generators, and precise controllers, our company also uses well-known brands for other components such as Schneider for circuit breakers and camel for batteries. The quality of the whole machine is reliable, and it is safe and convenient to use.

5. Diesel generator sets are widely used in high-rise office buildings, hotels, hospitals, industrial and mining, rural areas, field operations in mountainous areas, power and lighting for enterprises, institutions, schools or professional households

6. Our power system products,generator-drive engines, battery storage systems and integrated power systems that combine generator sets, paralleling controls and switchgear technologies, all connected to our industry-leading digital solutions for complete power system control.

Engine Technical Datasheet
Engine Model	TAD1352GE	Brand	Volvo
Rated Power	314kW	Number of Cylinders	6
Bore×Stroke	131mm×158mm	Governor	Electronic control(ECU)
Displacement	12.78Liters	Lubricant Capacity	36L
Starting method	DC24V

Alternator Technical Datasheet
Alternator Model	HCI444E	Brand	Stamford
Rated Power	280kW	Protection Grade	IP23
Voltage regulation	AVR	Excitation	brushless PMG
Insulation Grade	H	Type	3phase 4wire

Control system Technical Datasheet

1,Multi-interface display unit work and alarm state, intuitively clear, LCD displays the parameters of diesel engines. 2,Microcomputer can be set on the control panel input, output, alarm, delay and other 3,parameters.Maintenance, manual, automatic and other modes of operation. Display Data 1,Engine Data: Speed, Oil Pressure, Water Temperature, Battery Volt, Running TimingAlternator 2,Data: Gen-set/Mains Frequency, Gen-set/Mains 3-Phase Volt(L-L,L-N) ,Current, kVA,kW,PF,kVAR,kWh,kVAh,kVARh Detection and protection function 1,Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt,Low water level,Three failed to start alarm 2,Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit

Optional

Factory reserve

The container diesel generator set produced by our company uses well-known engines such as CUMMINS, Perkins, and VLOVO, and other brands to support the generator. Products with reliable quality and high market retention are selected, and brands such as ① Stanford generator (STAMFORD), ② Meiaudi generator (mecc alte), ③ Marathon generator, and other generators with excellent performance are selected, with a power coverage of 10-3000 kWe.Subvert the traditional sales model, implement the factory direct sales model, directly target end customers, save intermediate links, and the price is more favorable
