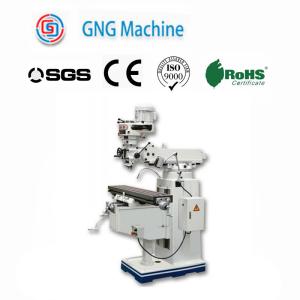

    3HP Milling Drilling Machine ISO 9001 Universal Milling Machine

    Ask Lasest Price
    Certification : CE, ISO 9001
    Supply Ability : 300/Per Month
    Delivery Time : 30-45days
    Payment Terms : T/T
    • Product Details
    • Company Profile

    3HP Milling Drilling Machine ISO 9001 Universal Milling Machine

    Electric CNC High Precision Universal Milling Machine

    Company Info.

    Basic Info.

    Model NO.
    X6325A
    Automatic Grade
    Semiautomatic
    Precision
    Precision
    Certification
    CE, ISO 9001
    Table Size
    254X1270mm ( 10"X42")
    Long Travel Size
    850mm
    Scross Travel Size
    380mm
    Vertical Travel Size
    400mm
    Spindle Motor
    2250W/3HP
    Transport Package
    Package
    Specification
    CE
    Trademark
    G&G
    Origin
    China Shandong
    HS Code
    845959000
    Production Capacity
    300/Per Month

    Product Description

    Electric CNC High Precision Universal Milling Machine
    Min. Order Quantity: 1 Set/Sets
    Port: Qingdao
    Payment Terms: L/C, T/T
    Quick Details
    Condition: New
    CNC or Not: Normal
    Place of Origin: Shandong, China (Mainland)
    Brand Name: GNG
    Model Number: X6325A
    Type: Universal
    Voltage: 380V
    Power(W): 2250W
    Dimension(L*W*H): 1516X1550X2080mm
    Weight: 1280kgs
    Certification: CE
    Warranty: 12months
    After-sales Service Provided: No overseas service provided
    Packaging & Delivery
    Delivery Detail: 30-45days
    Specifications
    Table size 254X1270(10"X50")
    Spindle hole taper R8 or ISO30/40
    Spindle travel127
    Universal milling machine X6325A
    Table size: 254X1270(9"X42")
    Long travel: 850mm
    Cross travel: 380mm
    Vertical travel: 400mm
    T-slot number and size: 3X16
    RAM travel: 470mm
    Distance from spindle nose to table surface: 0-400mm
    Spindle hole taper: STANDARD-R8, OPTIONAL ISO30/40
    Spindle travel: 127mm
    Spindle speed: Standard 16shift grade-50Hz 66-4540, 60Hz 80-5440
    Optional variable - 60-4200
    Auto quill feed: Three steps 0.04/0.08/0.15mm/revolution(0.0015"/0.003"/0.006")
    Spindle motor: 2250W
    Head swivel 90°
    Head tilting 45°
    Packing size: 1516X1550X2080mm
    Gross weight 1280kgs
    Electric CNC High Precision Universal Milling Machine
    Electric CNC High Precision Universal Milling Machine
    Electric CNC High Precision Universal Milling Machine
    Electric CNC High Precision Universal Milling Machine
    Electric CNC High Precision Universal Milling Machine
