    Cantilevered Structure Turret Drilling Machine CNC Universal

    Ask Lasest Price
    Certification : CE, ISO 9001
    Supply Ability : 300/Per Month
    Delivery Time : 30-45days
    Payment Terms : T/T
    • Product Details
    • Company Profile

    Cantilevered Structure Turret Drilling Machine CNC Universal

    CNC Universal Turret Milling & Drilling Machine, Turret Turning Milling Drilling Machine

    Company Info.

    Basic Info.

    Model NO.
    X6323B
    Automatic Grade
    Semiautomatic
    Precision
    Precision
    Certification
    CE, ISO 9001
    Working Table Size
    230X1246(9"X49")
    Spindle Hole Taper
    R8 or ISO30/40
    Long Travel
    840mm
    Cross Travel
    305mm
    Spindle Motor Power
    2.25kw/3HP
    Transport Package
    Package
    Specification
    CE
    Trademark
    G&G
    Origin
    China
    HS Code
    84595900
    Production Capacity
    300/Per Month

    Product Description

    CNC Universal Turret Milling & Drilling Machine, Turret Turning Milling Drilling Machine
    Min. Order Quantity: 1 Set/Sets
    Port: Qingdao
    Payment Terms: L/C, T/T
    Quick Details
    Condition: New
    Place of Origin: Shandong, China (Mainland)
    Brand Name: GNG
    Model Number: X6323B
    Type: Universal
    CNC or Not: Normal
    Voltage: 380V
    Power(W): 2250W
    Dimension(L*W*H): 1400X1476X2030mm
    Weight: 1060kgs
    Certification: CE
    Warranty: 12months
    After-sales Service Provided: No overseas service provided
    Packaging & Delivery
    Delivery Detail: 30-45days
    Specifications

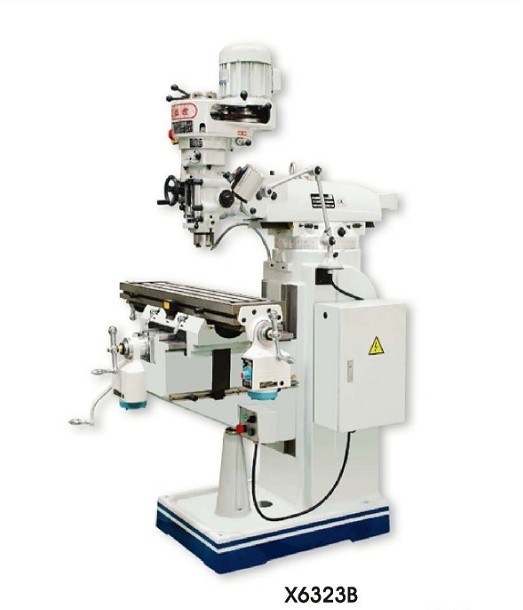

    Universal milling machine X6323b
    Table size: 230X1246(9"X49")
    Long travel: 840mm
    Cross travel: 305mm
    Vertical travel: 350mm
    T-slot number and size: 3X16
    RAM travel: 315mm
    Distance from spindle nose to table surface: 0-350mm
    Spindle hole taper: STANDARD-R8, OPTIONAL ISO30/40
    Spindle travel: 127mm
    Spindle speed: Standard 16shift grade-50Hz 66-4540, 60Hz 80-5440
    Optional variable - 60-4200
    Auto quill feed: Three steps 0.04/0.08/0.15mm/revolution(0.0015"/0.003"/0.006")
    Spindle motor: 2250W
    Head swivel 90°
    Head tilting 45°
    Packing size: 1400X1476X2030mm
    Gross weight 1060kgs

    FAQ:
    Question 1: what is your target market?
    A1: we are now focusing on Europe and North America.
    Question 2: what is the biggest advantage over competitors?
    A2: we are one of the most powerful suppliers of vibration Multi Tool saw blades in China. We have our own brand, and we can also customize the brand according to the needs of customers.
    Question 3: what about payment and delivery time?
    A3: delivery time: within 30 days after receiving the advance payment.
    Terms of payment: 50% t / T in advance, 50% against copy of B / L (or other)
    Question 4: can I have some samples?
    A4: Yes, we are honored to provide you with samples for quality inspection.
    Q5: how is your factory doing in quality control?
    A5: quality first. From the beginning to the end of production, we always attach great importance to quality control. Every product must be carefully inspected before packing and shipment.
    Why choose us?
    1. GNG has a strong sales team and rich export experience.
    2. The brand of GNG has a long history and its products are rich but not monotonous.
    3. The products from GNG have long service life, stable quality and stable beating.
    4. High temperature Tools pay more attention to production details, and the packaging is firm and exquisite.
    5. GNG supports non-standard customization.
    6. GNG has its own strong R & D team and strong innovation ability.
    7. Our sales response is accurate, timely, professional and long-term after-sales service.
