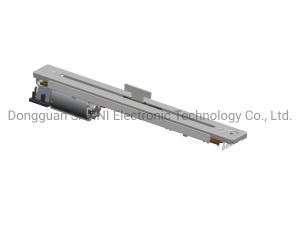

    RB1576N0 Linear Slide Potentiometer For Radio Frequency Volume Control

    Ask Lasest Price
    Brand Name : SANNI
    Model Number : RB1576N0
    Price : USD0.3~0.5 per pc
    Payment Terms : T/T
    Supply Ability : 10000pccs per Month
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    RB1576N0 Linear Slide Potentiometer For Radio Frequency Volume Control

    RB1576N0 Linear Slide Potentiometer For Radio Frequency Volume Control Or Other Control

    Application of linear slide potentiometer


    The linear slide potentiometers are commonly used in audio equipment such as graphic equalizers and audio mixers as they are easy to visualize from the position of the slider.


    Product features

    • RoHS compliant
    • Seal type
    • Small volume
    • Structural diversification
    • High Quality

    Product Specification


    1.Mechanical Characteristics
    Lever stop strength6Kgf.cm Min
    Lever travel100±1mm
    Lever wobble2(2xL/25)mm P-P Max.
    Operating force5-35gf.cm
    Slide trust of the Lever5Kgf 10s Min
    Life Cycle30,000 cycles
    2.Electrical Characteristics
    Total resistance5KΩ-500KΩ
    Total resistance tolerance±10% or ±20%
    Max. operating voltage50V AC, 20V DC
    Residual resistance50Ω Max
    Rated Power0.05W for linear taper, 0.025W for audio taper
    Insulation resistance100MΩ min.(DC 500V)
    Dielctrical proof250V DC for 1minute
    Noise47 mV max
    3.Environmental Performance
    Operating temperature range-10oC to +70oC
    Storage temperature range-30oC to +70oC
    4.Welding Performance
    Reference for hand soldering235℃ 5sec.
    RB1576N0 Slide PotentiometerRB1576N0 Slide PotentiometerRB1576N0 Slide PotentiometerRB1576N0 Slide PotentiometerRB1576N0 Slide PotentiometerRB1576N0 Slide PotentiometerRB1576N0 Slide PotentiometerRB1576N0 Slide PotentiometerRB1576N0 Slide Potentiometer
