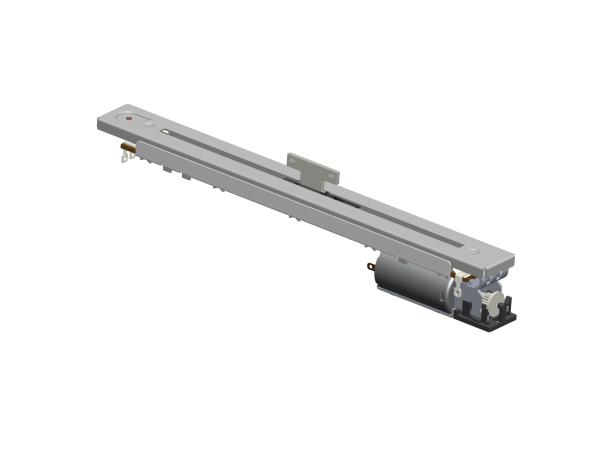

- Linear slide potentiometer
- Wideth:16mm
- Slide Strock:100mm
- Controlled by WiFi
- Use:Used for Player.Sound.Sound console.walkie-talkie.Medical
equipment.Instrument equipment .Meter and Auto AV
Product Features
- High Quality
- RoHS compliant
- Vertical PCB insert type
- Small volume
- Structural diversification
- Inner double slide rail
Product Characteristics
| 1.Electrical Characteristics |
| Total resistance | 5KΩ-500KΩ |
| Total resistance tolerance | ±10% or ±20% |
| Residual resistance | 50Ω Max |
| Max. operating voltage | 50V AC, 20V DC |
| Rated Power | 0.05W for linear taper, 0.025W for audio taper |
| Insulation resistance | 100MΩ min．(DC 500V) |
| Dielctrical proof | 250V DC for １minute |
| Noise | 47 mV max |
| 2.Mechanical Characteristics |
| Lever travel | 100±1mm |
| Lever stop strength | 6Kgf.cm Min |
| Lever wobble | 2(2xL/25)mm P-P Max. |
| Operating force | 5-35gf.cm |
| Slide trust of the Lever | 5Kgf 10s Min |
| Life Cycle | 30,000 cycles |
| 3.Environmental Performance |
| Operating temperature range | -10oC to +70oC |
| Storage temperature range | -30oC to +70oC |
| 4.Welding Performance |
| Reference for hand soldering | 235℃ 5sec. |
| Motor Drive Characteristics |
| Rated voltage | 5V DC |
| Operating voltage | 4~6V DC |
| Actuator move speed | 20mm/0.1 sec. Min. |
| Max current | 300-600mA |
Our Services
1. Offer 1 year warranty
2. within 24 hours to reply your inquiries
3. OEM/ODM service available to meet your requirement
4. Strong technical support in R&D
5. Offer free sample for test
FAQ
• Q: Can I get sample from you?
• A: Yes, we can provide the free samples for your testing, please
contact us for free and tell us which product you need.
• Q: Do you accept customization?
• A: Yes, customization is acceptable, please contact our sales
staffs for consult.
• Q: Can you provide help for technical issues?
• A: Yes, we have more than 10 years of research and development in
the electronic potentiometer industry. If you need technical help
in the purchase process, please feel free to contact us.
