    1.2N.M 3A NEMA 23 Closed Loop Motor With Brake Easy Servo Motor For CNC

    Ask Lasest Price
    Brand Name : Casun
    Model Number : 57SHD4406-20BQH
    Certification : CE,ROHS,ISO
    Payment Terms : D/A, T/T, L/C, D/P
    Supply Ability : 40000+PCS+Month
    Delivery Time : 7-15 days
    Price : $21.54-$24.94
    • Product Details
    • Company Profile

    1.2N.M 3A NEMA 23 Closed Loop Motor With Brake Easy Servo Motor For CNC

    Nema 23 Stepper Motor Closed Loop 1.2N.m 3A with Encoder with Brake Easy Servo Motor for CNC

    The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

    Use with a microstepping driver to reduce vibration and achieve higher step resolution.

    Choose a baseline version or request your own customized configuration.


    Features:

    • Bipolar or unipolar versions available

    • Hybrid stepper construction

    • Available in single or double shaft versions

    • CE and RoHS approved

    • Customizations on request

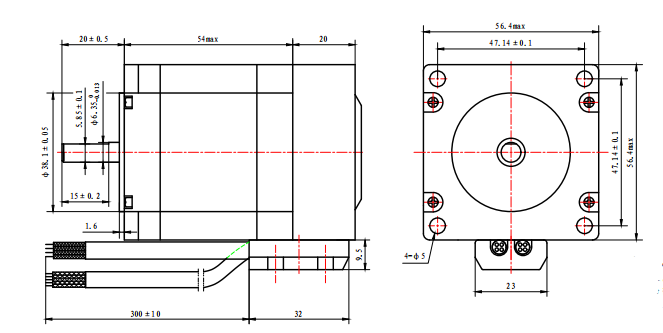

    Dimensions


    Motor Specifications

    Step Angel


    1.8 °

    Fram Size


    57mm

    Number of Phase


    2 Phase

    Rated Current


    3 Amp

    Holding Torque


    1.2N.m

    Resistance


    0.9 hm

    Inductance


    4.5mH

    Rotor Inertia


    260g-cm²

    Motor weight


    0.8 kg

    Encoder Pulsh


    1000

    Connection


    Bipolar


    Operating Specifications


    Motor


    Step Angle: 1.8°

    Maximum Temperature :80°C maximum

    Ambient Temperature: -20 °C to 50°C

    Storage Temperature -20: °C to 100°C

    Humidity Range (%) :85% or less, non-condensing

    Magnet Wire Insulation :Class B 130 deg C

    Insulation Resistance :100M Ohm at 500 VDC

    Dielectric Strength :500 VDC for 1 min


    Encoder


    Voltage: 5 v

    Output: A + A - B + B - Z + Z -


    Torque Curves


    Submodels

    ModelHolding TorqueStep AngleLengthType of ShaftRated Current
    42SHD49500.13N.m1.8°20mmD Shaft-20mm1.0A
    42SHD40030.26N.m1.8°34mmD Shaft-20mm0.4A
    42SHD02610.45N.m1.8°40mmD Shaft-20mm1.68A
    42SHD44250.59N.m1.8°48mmD Shaft-24mm2.0A
    42SHD48130.8N.m1.8°60mmD Shaft-24mm2.1A

    Download


    If our standard motor cannot meet your needs,

    we can customize the motor according to your needs


    Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

    Options:
    Encoder | Brake | Gearbox | Shaft


    Please click the "Get a quote" button below to tell us your requirements.
