    Close Loop 1750mN.M Nema 23 Stepping Motor With Encoder For Automation Equipment

    Ask Lasest Price
    Brand Name : Casun
    Model Number : 57SHD4811-26Q
    Certification : CE,ROHS,ISO
    Price : $19.9-$39.99
    Payment Terms : D/A, T/T, L/C, D/P
    Supply Ability : 40000+PCS+Month
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    Close Loop 1750mN.M Nema 23 Stepping Motor With Encoder For Automation Equipment

    NEMA 23 1750mN.m closed loop stepper motor kits withencoder for CNC machines

    Close Loop Stepper Motor 1750mN.M Nema23 Stepping Motor With Encoder For Automation Equipment

    A closed-loop stepper motor system typically includes an encoder that provides feedback to the controller, allowing it to monitor and adjust the motor's position in real-time. This helps to eliminate position errors and ensures accurate positioning in CNC (Computer Numerical Control) machines.

    Features:

    • High torque and high precision

    • For high-tech industry and electronic industry equipment

    • Available in single or double shaft versions

    • Established in China for 12 years and has served more than 800 customers.

    • Professional research and development manufacturing

    Appearance

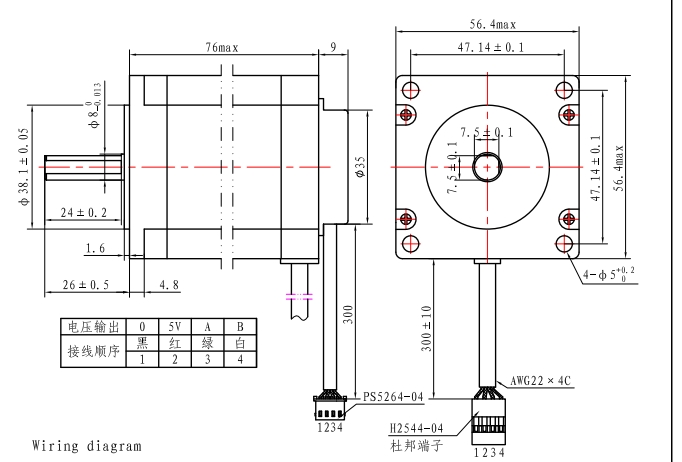

    Dimensions

    Motor Specifications


    Step Angel

    1.8 °

    Fram Size

    86mm

    Number of Phase

    2 Phase

    Rated Current

    4.2 A

    Holding Torque

    1750mN.m

    Resistance

    1.5ohm

    Inductance

    15 mH

    Rotor Inertia

    460 g-cm²

    Motor weight

    1kg

    Number of leads

    4

    Connection

    Bipolar

    Operating Specifications

    Step Angle: 1.8°

    Maximum Temperature :80°C maximum

    Ambient Temperature: -20 °C to 50°C

    Storage Temperature -20: °C to 100°C

    Humidity Range (%) :85% or less, non-condensing

    Magnet Wire Insulation :Class B 130 deg C

    Insulation Resistance :100M Ohm at 500 VDC

    Dielectric Strength :500 VDC for 1 min


    Torque Curves


    Submodels

    ModelHolding
    Torque
    Rated
    Current
    Resistance
    per phase
    Inductance
    per phase
    Detent
    torque
    Rotor
    inertia
    Lead
    wire
    Motor
    length
    mN.mAΩmHmN.mg.cm²No.mm
    60SHD42016500.6152050280445
    60SHD440115002.813.370450456
    60SHD460132004.20.753.7120580486
    60SHD6602250031.553.71205804

    Download

    If our standard motor cannot meet your needs,

    we can customize the motor according to your needs


    Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

    Options:

    Encoder

    Brake

    Gearbox

    Shaft


    Please click the "Get a quote" button below to tell us your requirements.
