    SPI Touch Screen Lcd Display Module ILI9488 Tft Lcd Module 3.5 Inch 480x320


    3.5 inch Capacitive touch SPI LCD TFT Module TFT display Module 3.5 Inch 480*320 SPI Panel Driver IC ILI9488 Support


    Provide 51 MCU, stm32 MCU, Arduino sample program, copy the download link to the browser to download the information:

    Product Description

    JC3248S035C is a SPI module with capacitive touch. The touch chip uses GT911, which supports multi-touch and has strong anti-interference ability. It is widely used in some industrial occasions. The LCD module uses the 4-wire SPI communication method, and has the ILI9488 driver IC with a resolution of 320x480 and touch function (optional). The module includes LCD display, backlight control circuit and touch screen control circuit.

    ● 3.5-inch color screen,support 65K color display,display rich colors ·

    ● 320X480 resolution with optional touch function·

    ● Using the SPI serial bus, it only takes a few IOs to illuminate the display·

    ● Easy to expand the experiment with SD card slot·

    ● Military-grade process standards, long-term stable work ·

    ● Provide underlying driver technical support·

    Product Parameters

    NameParameter
    SKUJC3248R035C
    Display ColorRGB 65K color
    Touch modeCapacitive touch
    Screen Size3.5(inch)
    TypeTFT
    Driver ICILI9488
    Resolution320*480 (Pixel)
    Module Interface4-wire SPI
    Active Area73.44(L))X48.96(W)MM

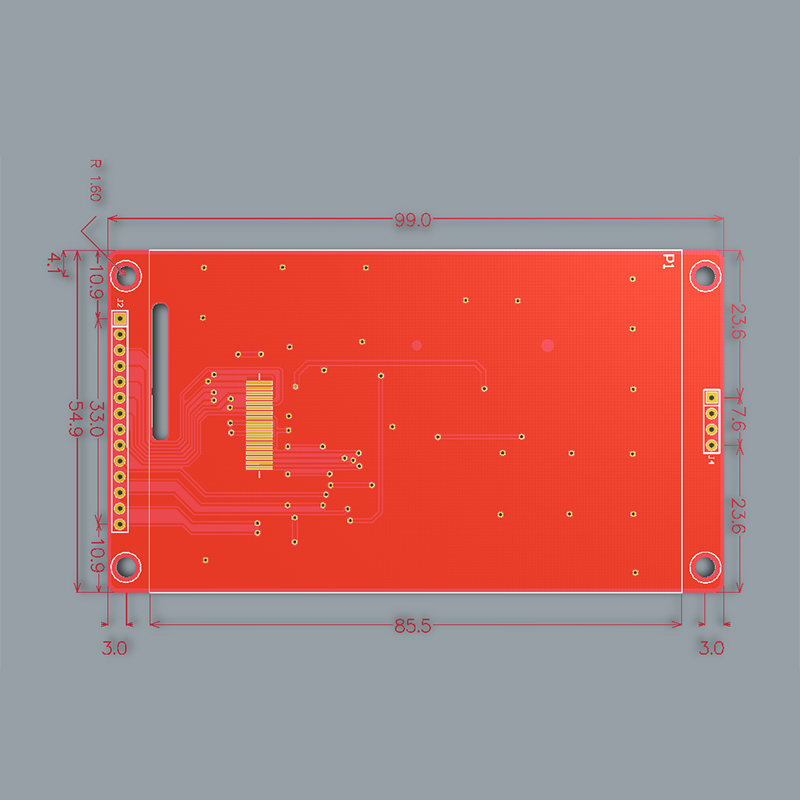

    External dimension99.0(L)X54.9(W)MM
    Operating Temperature-20℃~60℃
    Storage Temperature-30℃~70℃
    Operating Voltage3.3V
    Visual angle12:00 o'clock
    Product Weight(Package containing)58(g)

    Interface Definition


    NumberPin LabelPin Description
    1VCC5.0 power input
    2GNDPower ground
    3CSLCD chip select signal, active low
    4RESTLCD reset signal, low level reset
    5D/CControl register selection
    6SDI(MOSI)Control data transmission
    7SCKClock signal
    8LEDBacklight control, high level lighting, connected to 3.3V
    9SDO(MISO)SPI bus read data signal
    10C_SCLCapacitive touch I2C bus clock signal
    11C_RSTCapacitive touch screen reset signal, low level enable
    12
    13C_SDACapacitive touch I2C bus data port
    14C_INT
    Capacitive touch screen interrupt signal, low level when touch is detected
