    2.8 Spi Tft Module SPI Display Module TFT Display 240x320 2.8 Inch Spi Tft Lcd Ili9341

    Ask Lasest Price
    Model Number : JC2432S028N
    Price : ¥45/PCS
    Payment Terms : L/C, T/T
    Supply Ability : 5000pcs/day
    Delivery Time : 28day
    • Product Details
    • Company Profile

    2.8 Spi Tft Module SPI Display Module TFT Display 240x320 2.8 Inch Spi Tft Lcd Ili9341

    2.8 inch Without Touch SPI LCD TFT Module TFT display 2.8" 240*320 ILI9341 Smart Display Screen


    Provide 51 MCU, stm32 MCU, Arduino sample program, copy the download link to the browser to download the information

    Product Description

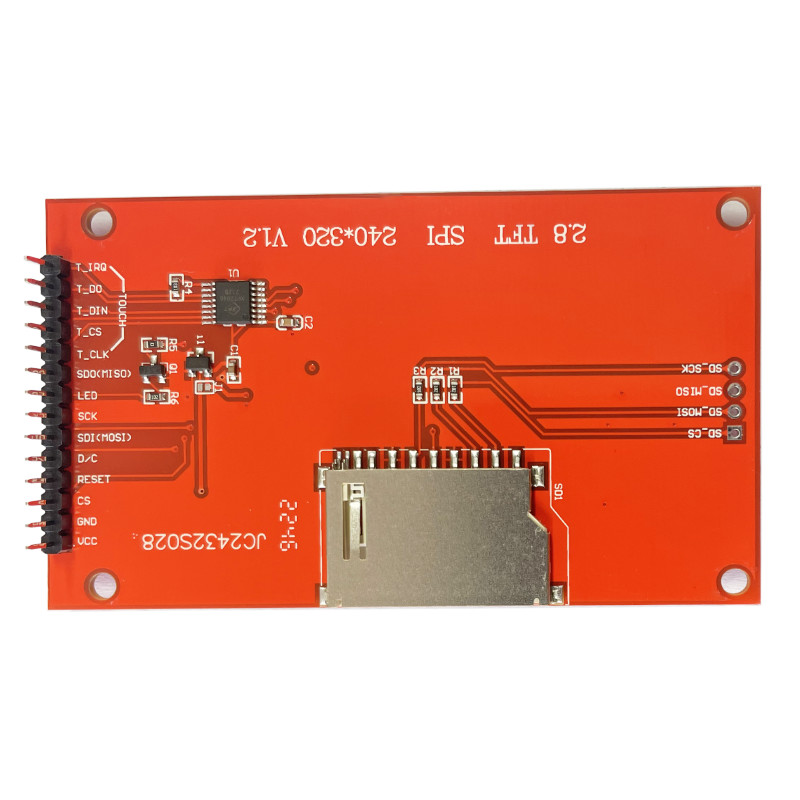

    • Red PCB, 14-pin 2.54-pin interface
    • 2.8 inch 2.8 "SPI red module CTC LCD ILI9341 TFT LCD Display module Screen.
    • DC 3.3V 2.8 inch TFT LCD Display Module ILI9341 Driver 4 Wire SPI Interface 240x320.
    • Industrial quality.
    • Long-term stable supply.
    • With a wide range of standard and customized LCD and TFT modules, BACKLIGHT. We offer to customers the solutions and technologies best suited for the applications.
    • Our products have been applied in a wide range of industries including financial devices, energy meter equipment, check-in machines, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial equipment.

    Product Parameters

    NameParameter
    SKUJC2432S028N
    Display ColorRGB 65K color
    Touch modeWithout touch
    Screen Size2.8(inch)
    TypeTFT
    Driver ICILI9341
    Resolution240*320 (Pixel)
    Module Interface4-wire SPI
    Active Area57.60(L))X43.20(W)MM

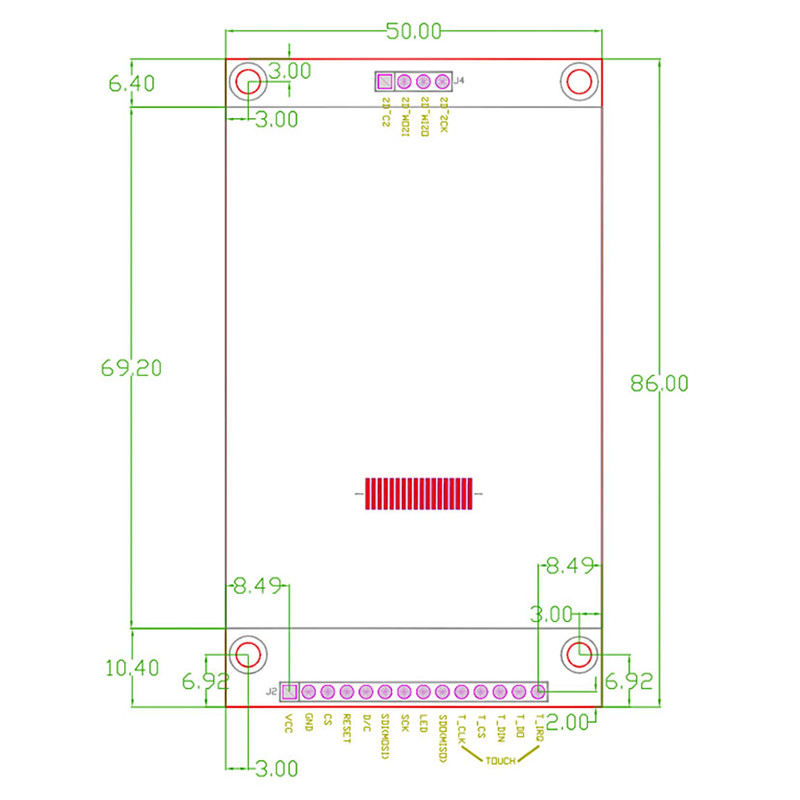

    External dimension86.00(L)X50.00(W)MM
    Operating Temperature-20℃~60℃
    Storage Temperature-30℃~70℃
    Operating Voltage3.3V
    Visual angle12:00 o'clock
    Product Weight(Package containing)48(g)

    Interface Definition


    NumberPin LabelPin Description
    1VCC5.0 power input
    2GNDPower ground
    3CSLCD chip select signal, active low
    4RESTLCD reset signal, low level reset
    5D/CControl register selection
    6SDI(MOSI)Control data transmission
    7SCKClock signal
    8LEDBacklight control, high level lighting, connected to 3.3V
    9SDO(MISO)SPI bus read data signal
    10T_CLKTouch SPI bus clock signal
    11T_CSTouch screen chip selection signal, low-level enable
    12T_DINTouch SPI bus input
    13T_DOTouch SPI bus output
    14T_IRQTouch screen interrupt signal, low level when touch is detected
