    LVGL 7 Inch Resistive Touch Screen ESP32-S3 8M PSRAM Tft Lcd Display Module

    Ask Lasest Price
    Model Number : ESP32-8048S070R
    Price : ¥208/PCS
    Payment Terms : L/C, T/T
    Supply Ability : 5000PCS/day
    Delivery Time : 28day
    • Product Details
    • Company Profile

    LVGL 7 Inch Resistive Touch Screen ESP32-S3 8M PSRAM Tft Lcd Display Module

    7.0 inch Resistance Touch 7 " 800*480 ESP32-S3 8M PSRAM LVGL WIFI&Bluetooth Smart Display Screen RGB LCD TFT Module

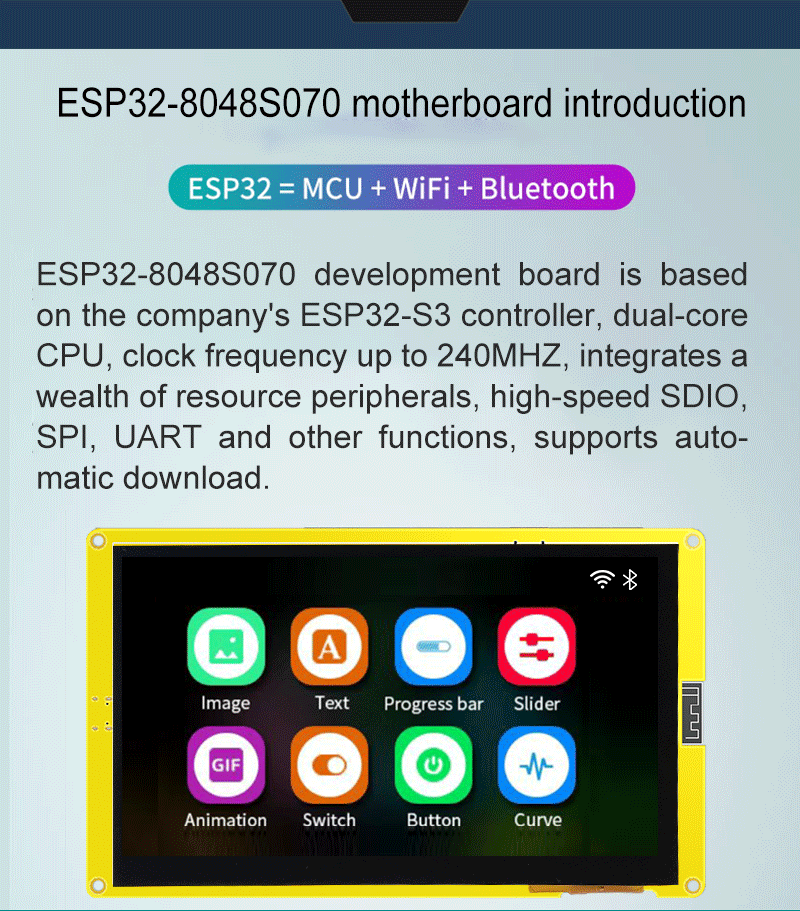

    ESP32 development board-8M PSRAM 16M Flash, standard 7.0-inch TFT screen and Without touch or Capacitive touch , support one-key automatic download, provide LVGL demo and arduino examples
    Features
    • ESP32-S3 dual-core Xtensa 32-bit LX7 microprocessor, up to 240 MHz with 384KB ROM, 512KB SRAM. 2.4GHz WiFi and Bluetooth 5
    • PSRAM: 8MB FLASH: 16MB
    • Storage: Micro-SD card slot
    • Display: 7.0-inch display with 800×480 resolution
    • Touch mode, resistance touch, touch chip XPT2046
    • Display interface: 16-bits, 8080 parallel communication
    • Audio: Codec, Audio amplifier, speaker
    • USB: 1x USB-C OTG (DFU/CDC) port, 1x USB-C debug port
    • Sensors: 3-axis accelerometer, 3-axis gyroscope, temperature and humidity sensors
    • Peripheral interface: I2C, SPI, GPIOs
    • Miscellaneous: Reset buttons, Boot buttons
    • Power Supply: 5V / 1A
    • Dimension: 181 x 108 mm
    • Programming Platform: Arduino-ide ESP-IDF
