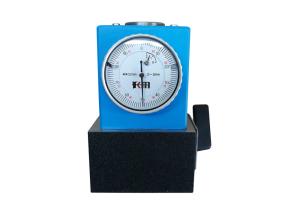

0-2mmx0.01mm Precise Z-axis Setting Dial Indicator with Magnetic
Base
Quick Detail:
1. Efficient to set zero point with built in dial indicator.
2. Positing accuracy and repeatability.
3. Spring loaded setting face to safeguard against damage from
overrun.
4. Position alignment of zero position with easy reading precision
dial indicator.
5. Supplied in fitted case.
Description:
This Z-axis setting indicator supplied with a magnetic base, with
measuring range 0-2mm and graduation 0.01mm.
Provided with high-quality materials and critical manufacturing,
processes to ensure their stability and durability in harsh
industrial
environments.
It is available in a variety of types, such as round, square,
scheduled, photoelectric and magnetic, etc., to suit different CNC
machine
tools and application needs.
Our Z-axis can set the length of cutting and calculate the main
shaft reference point of traditional boring-milling machine and CNC
machining center. It is convenient, accurate checking outer and
high efficiency, which reduced the time of processing preparation.
Specification:
| Order No. | Range | Graduation | Remark |
| KM-442-002 | 0-2mm | 0.01mm | / |
| KM-442-003 | 0-2mm | 0.01mm | With Magnetic Stand |
Notices:
1. Make sure the Z-axis setting indicator is properly installed and
calibrated.
2. Before use, check that it is in good condition and that there
are no damaged or worn parts.
3. When in use, take care to avoid collisions or excessive pressure
to avoid damage to the device.
4. Keep equipment clean and avoid dust and dirt that can affect its
accuracy and performance.
5. Regular inspection and maintenance to ensure its long-term
stable operation.
Applications:
The Z-axis setting indicator is mainly used in CNC machine tools to
set and measure the length of the tool or the position of the
Z-axis.
It ensures the precise position of the workpiece in the Z-axis
direction, thus avoiding machining errors and improving machining
quality.
In addition, the Z-axis setting indicator can be used for tool
length measurement and compensation, as well as for setting the
zero
position of the workpiece.
FAQ:
1) Who are we?
Deko Corporation mainly dedicate to the development, manufacture
and marketing of KM brand precision measuring tools
in China mainland.
2) What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges,
dial thickness gauges, depth gauges, bevel protractors,
gauge, blocks, level, etc.
3) What are the terms of trade?
We support FOB, CFR, CIF, EXW.
4) What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.
5) Do we accept customization?
Yes, OEM is available.
6) How about after-sales service?
One year warranty for all kinds of products.
If you find any defective accessories when receive goods, we will
ship your news parts or new product to replace.
As an experienced manufacturer, we have very strict calibration and
inspection team, you can rest assured of our product quality.
