Fr4 06 0.5 0.8mm Multilayer Controlled Impedance PCB Trace 50ohm

    Buy cheap Fr4 06 0.5 0.8mm Multilayer Controlled Impedance PCB Trace 50ohm from wholesalers

    Buy cheap Fr4 06 0.5 0.8mm Multilayer Controlled Impedance PCB Trace 50ohm from wholesalers
    • Buy cheap Fr4 06 0.5 0.8mm Multilayer Controlled Impedance PCB Trace 50ohm from wholesalers

    Fr4 06 0.5 0.8mm Multilayer Controlled Impedance PCB Trace 50ohm

    Ask Lasest Price
    Brand Name : ONESEINE
    Certification : ISO9001,ISO14001
    Model Number : ONE-102
    Price : USD0.1-1000
    Delivery Time : 5-8 working days
    Payment Terms : T/T, Western Union
    Supply Ability : 1000000000pcs/mon
    • Product Details
    • Company Profile

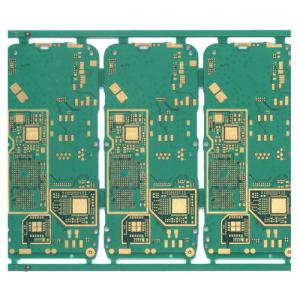

    Fr4 06 0.5 0.8mm Multilayer Controlled Impedance PCB Trace 50ohm

    Fr4 06 0.5 0.8mm Multilayer Controlled Impedance PCB Trace 50ohm


    Quick detail:


    PCB layer

    Materials

    · Multilayer PCB with 8 layers

    · Fr4

    PCB thickness

    Final copper

    · 2.6 mm

    · 2OZ

    Conductor track widths

    Minimum drilling diameter

    · ≥ 90 µm

    · 0.2 mm

    Contour production

    Solder masks

    · Milling

    · Scoring

    · Photosensitive solder mask systems

    · UV solder mask system, screen printing

    Surfaces

    Additional printing

    Immersion gold

    · Impedance 50ohm PCB

    Manufacture of Controlled Impedance PCBs,Impedance PCB prototype, Controlled impedance PCB fabrication

    50 ohm controlled impedance PCB, pcb trace resistance calculator, pcb trace impedance


    Parameter:


    Layer

    12-26

    Material type

    FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers

    Board thickness

    0.21mm to 7.0mm

    Copper thickness

    0.5 OZ to 6 oz

    Size

    Max. Board Size: 580mm×1100mm

    Min. Drilled Hole Size: 0.2 mm (8 mil)

    Min. Line Width: 4mil (0.1mm)

    Min. Line Spacing: 4mil (0.1mm)

    Surface finishing

    HASL / HASL lead free, HAL, Chemical tin,
    Immersion Silver/Gold, OSP, Gold plating

    Solder Mask Color

    Green/Yellow/Black/White/Red/Blue

    Tolerance

    Shape tolerance: ±0.13

    Hole tolerance: PTH: ±0.076 NPTH: ±0.05

    Certificate

    UL, ISO 9001, ISO 14001

    Special requirements

    Buried and blind vias+controlled impedance +BGA

    Profiling

    Punching, Routing, V-CUT, Beveling


    Impedance pcb definition:


    · Impedance board is defined as: a good laminated structure can play on the printed circuit board characteristic impedance control, the alignment can be easily controlled and predictable transmission line structure called the impedance pcb

    · Impedance is the sum of the resistance and reactance of an electrical circuit expressed in Ohms. The resistance being the opposition to current flow present in all materials. The reactance is the opposition to current flow resulting from the effect of the inherent capacitance and inductance of the conductor interacting with changes in voltage and current. In DC circuits there is no reactance and the resistance of copper conductors is typically insignificant. However in high speed AC circuits (those with sharp changes in voltage and/or current) the reactance and thus the impedance can become very significant. This can become critical to a design's functionality because of the effects that changes in the impedance along the signals path from transmitter to receiver will have on the efficiency of power transfer as well as signal integrity. While a circuit’s speed is often expressed as the frequency of the wave form: the critical concern is the speed at which the voltage and/or current is required to change..

    · One of the most common examples of controlled impedance is the cable that connects the antenna to your television. That cable may be a coaxial cable consisting of a round, inner conductor, separated from the outer cylindrical conductor commonly called the shield by an insulator. The dimensions of the conductors and insulator, and the electrical characteristics of the insulator are carefully controlled in order to determine the shape, strength and interaction of their electrical fields which will determine the electrical impedance of the cable.

    Similarly there are many different trace configurations that are used in printed circuit boards to achieve controlled impedance.

    · Controlled impedance boards use a plane layer as the shield, the laminate as the insulator and the conductor is the trace. The impedance of the trace on the board is determined by its dimensions, the materials used.

    · Impedance is measured in Ohms but is not to be confused with resistance. Resistance is a direct current characteristic; impedance is an alternating current characteristic that includes signal frequency. Signal frequency is critical for those traces connecting to components requiring two or three hundred MHz and above.


    What is Controlled Impedance?


    · Unless you have carefully designed the trace and its environment, impedance is typically "uncontrolled", meaning that impedance will vary in value from point to point along the trace.

    · At high frequencies, PCB traces do not behave like simple connections, controlled impedance helps us ensure that signals are not degraded as they route around a PCB.

    · Essentially, controlled impedance is the matching of substrate material properties with trace dimensions and locations to ensure the impedance of a trace's signal is within a certain percentage of a specific value. Controlled impedance boards provide repeatable high frequency performance.

    · When a signal must have a particular impedance in order to function properly, controlled impedance should be used. In high frequency applications matching the impedance of PCB traces is important in maintaining data integrity and signal clarity. If the impedance of the PCB trace connecting two components does not match the components' characteristic impedance, there may be increased switching times within the device or the circuit. There may also be random errors.

    · The characteristic impedance of a PCB trace is typically determined by its inductive and capacitive reactance, resistance, and conductance. These factors are a function of the physical dimensions of the trace, the dielectric constant of the PCB substrate material, and dielectric thickness. Typically PCB trace impedance can range from 25 to 125 ohms

    Impedance calculate:

    The rising edge time of the signal and the proportional relationship of the time required for signal transmission to the receiver determine whether the signal connection is considered to be a transmission line. Specific proportional relationship can be explained by the following formula: If the PCB board wire length is greater than l / b can be the signal between the connecting wire as a transmission line. From the signal equivalent impedance formula we can see that the transmission line impedance can be expressed by the following formula: in the high frequency (tens of megahertz to several hundred MHz) to meet wL >> R Taking into account the signal skin effect, need to carefully study this relationship). Then the characteristic impedance for a given transmission line is a constant. Signal reflection phenomenon is due to the signal drive side and the transmission line characteristic impedance and the impedance of the receiver side caused by inconsistency. For the CMOS circuit, the signal output impedance of the drive side is relatively small, for the dozens of Europe. While the receiving end of the input impedance is relatively large.


    FR4 PCBs are known for their excellent thermal stability, high mechanical strength, and resistance to moisture and chemicals. These properties make them suitable for a wide range of applications, including consumer electronics, telecommunications, automotive, industrial equipment, and more.

    The FR4 material consists of a thin layer of copper foil laminated onto a substrate made of woven fiberglass cloth impregnated with epoxy resin. The copper layer is etched to create the desired circuit pattern, and the remaining copper traces provide the electrical connections between components.

    The FR4 substrate offers good dimensional stability, which is important for maintaining the integrity of the circuitry over a wide range of temperatures. It also has low electrical conductivity, which helps prevent short circuits between adjacent traces.

    In addition to its electrical properties, FR4 has good flame retardant properties due to the presence of halogenated compounds in the epoxy resin. This makes FR4 PCBs suitable for applications where fire safety is a concern.

    Overall, FR4 PCBs are widely used in the electronics industry due to their excellent combination of electrical performance, mechanical strength, thermal stability, and flame retardancy.
