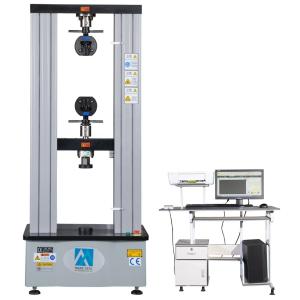

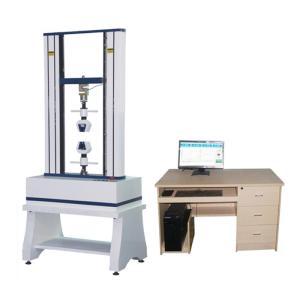

Universal tensile testing machine tensile testing machine 30KN Electromechanical

Universal tensile testing machine tensile testing machine 30KN Electromechanical

Universal tensile testing machine tensile testing machine 30KN Electromechanical

1. Overview:

Mainly used to test tension, compression, bending, peeling, tearing and other mechanical property for metallic, nonmetallic and composite materials.

Adopting precise auto control and data acquisition system to realize full digitalization adjustment of data acquisition and control procedure. During tensile test, it can test max. tension, tensile strength, peeling strength, compression strength, extension, elongation etc.

After test, the main controller can automatically calculate test results according to the parameters which are set before test and meantime can display test results.

All the parameters can be inquired, displayed and printed.

2.Technical parameters:

1. Test force

Max test force(kN): 100kN

Test accuracy:1 class(standard)/ ( 0.5 class optional)

Effective test range: 2%-100%FS/(0.5 class with 0.4%-100% optional)

Force resolution: 1/300000

Test value relative error:±1%/(0.5 class with ±0.5% optional)

2. Test speed

Speed adjusting range:0.001~200mm/min(step less speed regulating)/ (can customize)

Accuracy:better than ±1%

Force control rate range:0.005—5%FN

Force control rate control accuracy:

when rate<0.05FN/s,is within ±2% setting value

When rate≥0.05FN/s,is within ±1%/(0.5 class, accuracy is±0.5% setting value optional)

Deformation rate control range:0.005—5%FN

Deformation rate control accuracy:

when rate<0.05FN/s,is within ±2% setting value

When rate ≥0.05FN/s,is within ±0.5% setting value

3. Displacement (moving cross beam)

Test range:0~999mm

resolution:0.001mm

Test accuracy:better than ±1%

4. Deformation

Deformation test range:gauge length:50mm, maximum deformation:15mm ( can customize)

Effective test range:2%~100%FS

Resolution:0.01mm

Test value relative error:±1%

5. Test space

Effective tensile space:600mm (can customize)

Effective compression space:600mm (can customize)

Effective test width:450mm (can customize)

6. Working environment

Room temperature: 10~35°C,humidity: 20%~80%

TECHNICAL PARAMETER
Model	WDW-T50	WDW-T100	WDW-T200	WDW-T300	WDW-T600
Maximum test force	50kN	100kN	200kN	300kN	600kN
Accuracy level	0.5 level
Test force measurement range	0.2%-100%FS
Test force indication error	±0.5%
Test force resolution	The maximum test force of 1/500000, the entire process regardless of file
Beam displacement indication error	±0.2%
Displacement resolution	0.015µm
Force control rate adjustment range	0.005~5%FS/S
Force control rate control accuracy	The rate is less than ±2% of the set value when the rate is less than 0.05% FS/s, and less than ±0.5% of the set value when the rate is ≥0.05% FS/s
Deformation rate adjustment range	0.005~5%FS/S
Deformation rate control accuracy	The rate is less than ±2% of the set value when the rate is less than 0.05% FS/s, and less than ±0.5% of the set value when the rate is ≥0.05% FS/s
Beam speed adjustment range	0.001~500mm/min
Beam speed relative error	Within ±0.2% of the set value
Constant force, constant deformation, constant displacement control range	0.5%~100%FS
Constant force, constant deformation, constant displacement control accuracy	When the setting value is ≥10% FS, it is within ±0.1% of the set value; When the setting value is <10% FS, it is within ±1% of the set value.
Stretching space (without fixture)	1000mm		1450mm	1100mm	1250mm
Compression space	930mm		1480mm	1100mm	1100mm
Effective test width	560mm		580mm	580mm	600mm
Host Dimensions(mm)	1010×850×2160		1090×820×2740(Single space)1090×820×2820(Double space)	1090×820×2475(Single space)1090×820×2555(Double space)	1420×1145×2915
Double space	380V/50Hz,±10%
Power	3KW		5KW		4.4KW
Weight of host	About 1000Kg		About 1100Kg	About 1200Kg	About 1500Kg
Big deformation	Large deformation measurement range	Note	1. Fixture and deformation measuring devices and other accessories, configured according to customer needs
	Large deformation error		2. According to user requirements for local adjustment
	Large deformation resolution		3 special widening test space can be customized
