    0.05 Accuracy Portable Meter Test Equipment Three Phase Test Meter Calibration

    Ask Lasest Price
    Brand Name : GENY
    Model Number : YC99T
    Certification : ISO, CE
    Price : negotiate rates
    Payment Terms : T/T, L/C, D/P, T/T
    Supply Ability : 5 sets / 1 months
    Delivery Time : 6~8weeks
    • Product Details
    • Company Profile

    0.05 Accuracy Portable Meter Test Equipment Three Phase Test Meter Calibration

    Class 0.05 Accuracy Portable Three Phase Calibrator with High Voltage Output for Testing Meter

    Description:

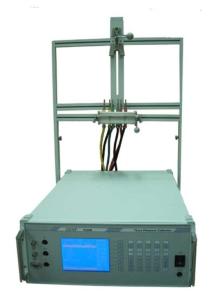

    YC99T series is portable three phase meter testing equipment (calibrator), suit for lab and local use. YC99T series calibrator utilizes the testing technology with the lasted development of the energy meter calibration. YC99T5C has exactly software function as YC99T-3C calibration, but different voltage and current output.


    YC99T-3C calibrator supports IEC standard communication protocol, and can complete demand indication error, demand period error, time switching error, rate period energy indication error and other multi-function test projects. YC99T-3C Calibrator has constant temperature crystal oscillator, which is able to verify the daily time error of electric energy meter.


    YC99T-3C is designed with fantastic panels screen and wiring arrangement. The front and rear panel are designed to be easy-operating.


    YC99T-3C not only provides normal meter testing, it also can be used as harmonic power output equipment, which is able to create stable harmonic output.

    YC99T series Portable calibrator is capable of detecting daily time error of energy meter.

    • The error of voltage, current, active power is ±0.05%, the error of reactive power is ±0.1%
    • The stability of voltage, current, active power is 0.01%RG/3min, The distortion percentage of alternative voltage and alternative current : ≤0.2%
    • The voltage range of YC99T-3C from 57.7V-660V, current range:1A-50A
    • Harmonic Output range: 2-63, harmonic output is under measuring and analyzing.
    • Test data can be managed by computer via RS232 interface
    • YC99T-3C not only can be operated by equipment but also can be controlled by PC
    • Calibrate energy meters automatically, which including items, such as, preheating, starting, creeping, error, influence, quantity test etc.
    • MUTs can be accessed through RS485, RS232, and Ethernet.
    • Diagnostic function of functional fault and internal module communication.

    Specifications:

    Voltage
    AC Voltage Range57.7V-660V
    Power of the voltage outputMAX.20VA
    Resolution0.01%
    Accuracy0.1%
    Stability0.01%/120s
    Distortion factor0.2%
    Current
    Test current output1A-50A
    Power of the current outputMax. 50VA
    Resolution0.01%
    Accuracy0.05%
    Stability0.01%/180s
    Distortion factor< 0.3% for linear resistance load
    Phase angle
    Range0 -- 360°
    Resolution0.1°
    Accuracy0.2°
    Frequency
    Range40Hz – 70Hz
    Resolution0.005Hz
    Pulse output
    Harmonic Output2-63
    Pulse input
    Input channel3
    Input frequencyMax. 20Hz
    Other
    Voltage Supply220V±15% /110V±15% (optional)
    Ambient temperature20°C -- 30°C
    Relative humidity≤85%
    Dimensions (W×H×D) (mm)500 X 440 X 180
    Weight (kg)
