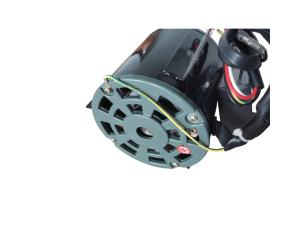

Induction motor-Y124125A-115
An induction motor is a common type of electric motor that uses the
principle of induction to produce rotational force. Such motors are
commonly used in industrial and commercial applications because of
their high efficiency and reliability. The working principle of an
induction motor is based on Faraday's law of electromagnetic
induction. When an electric current passes through a coil, a
rotating magnetic field is generated. This magnetic field induces
eddy currents in the conductor, thereby generating a rotating
force. This design makes induction motors ideal for driving a
variety of equipment and machinery.
Our induction motors undergo strict quality control and testing to
ensure stable and reliable product quality. We also provide
customized services, customizing induction motors of different
specifications and models according to customer needs.
PRODUCT DETAILS
Production introduction
Induction motors have many advantages, one of which is their high
efficiency. Because of how induction motors work, they are
generally more efficient than other types of motors, meaning they
can produce the same power output with lower energy consumption.
This makes induction motors ideal for many industrial and
commercial applications. Another advantage is the reliability of
induction motors. Because they do not use brushes or other wearing
parts, induction motors generally have a long service life and
require less maintenance.
Induction motors also have good dynamic response and high starting
torque, which makes them suitable for applications requiring quick
starts and stops. Additionally, they have low noise and vibration
levels, making them ideal for applications requiring quiet
operation.
General Specification:
- Rated Voltage: 115V
- Input Power: 185W
- Rated Speed: 1075r/min
- Rated Frequency: 60Hz
- Input Current: 3.2A
- Capacitance: 20μF/250V
- Rotation(shaft end): CW
- Insulation Class: B
Application:
Laundry machine,Electric fan,Air conditioner and etc.
Dimension:
Parameters:
| Items | Unit | Model |
| Y124125-115 |
| Rated Voltage | V | 115(AC) |
| Input Power | W | 185 |
| Rated Frequency | Hz | 60 |
| Rated Speed | RPM | 1075 |
| Input Current | A | 3.2 |
| Capacitance | μF/ V | 20/250 |
| Rotation(sheft end) | / | CW |
| Insulation Class | / | B |
FAQ
1. What are your prices?
Our prices are subject to specification depending on technical
requirements. We will make offer we clearly understand your working
condition and technical requirements.
2.Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum
order quantity. Normally 1000PCS, however we also accept the custom
made order with smaller quantity with higher expense.
3.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of
Analysis / Conformance; Insurance; Origin, and other export
documents where required.
4.What is the average lead time?
For samples, the lead time is about 14 days. For mass production,
the lead time is 30~45 days after receiving the deposit payment.
The lead times become effective when (1) we have received your
deposit, and (2) we have your final approval for your products. If
our lead times do not work with your deadline, please go over your
requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
5.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or
PayPal: 30% deposit in advance, 70% balance before shipment.
