    200m Depth Water Well Drilling Truck Carrying Vehicle 6x4 266HP Load Vehicle Engine

    200m Depth Truck Mounted Water Well Drill Rig Truck Carrying Vehicle 6x4

    Product Description
    The RCF200T truck mounted water well drilling rig is a newly designed deep well drilling rig, which is characterized by installing the drilling rig and air compressor and other components on the truck. This design makes the drill extremely portable and flexible, making it easy to use and transport. It adopts Dongfeng 6X4 vehicle-mounted design, which is very convenient to move. This drilling rig adopts top drive mode and can be used for both mud pump and air compressor.

    Application
    It is used in the fields of water resources exploration and development, geological exploration, mineral exploration, construction engineering and environmental engineering. They can drill deep wells to obtain groundwater resources, obtain underground rock formations and geological structure information, detect the presence and storage of mineral deposits, be used for drilling in foundation projects and water intake wells in groundwater treatment projects, as well as monitor groundwater levels and water quality, and carry out Environmental pollution investigation, etc.

    Technical Parameters

    NameUnitParameter
    ModelRCF200T
    Dimensionmm10600×2500×3550
    Weightkg13
    Aperturemm140-300
    Drilling depthm200
    Feed strokemm3400
    Travel speedkm/h80
    Grade abilityMax.30°
    Wind pressureMpa1.7-3.0
    Air consumptionm³/min15-35
    Drill pipe diametermmφ89/ 102
    Drill pipe lengthm3
    Lifting forceT18
    Drilling rig Engine powerkw70
    Rotary speedrpm45-115
    Rotation torqueN.m6200-9000
    Mud pump450L/minBW250 (optional item )
    Carrying vehicleTruck
    Load vehicle engine260HP
    Driving form6X4
    Steering wheelRight position

    Air compressor

    22/21,21m3/min ,21bar ,238KW Yuchai engine

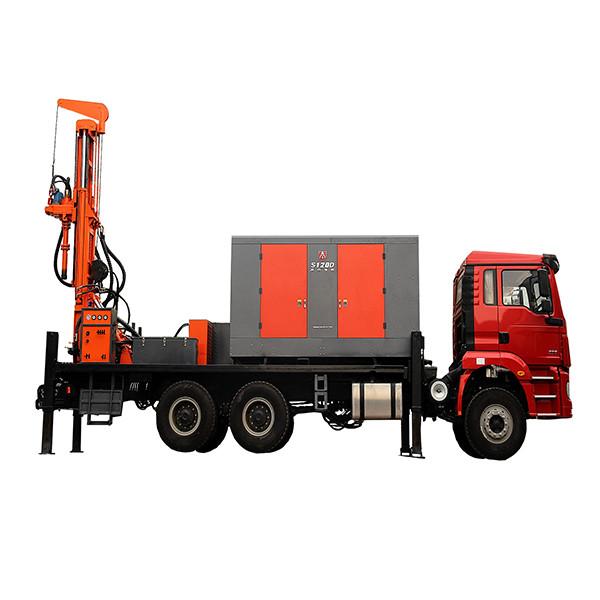

    Machine picture display
