129HP Diesel Engine Water Well Drilling Rig Machine 450m Drilling Depth 500mm Dia

    Buy cheap 129HP Diesel Engine Water Well Drilling Rig Machine 450m Drilling Depth 500mm Dia from wholesalers

    Buy cheap 129HP Diesel Engine Water Well Drilling Rig Machine 450m Drilling Depth 500mm Dia from wholesalers
    • Buy cheap 129HP Diesel Engine Water Well Drilling Rig Machine 450m Drilling Depth 500mm Dia from wholesalers

    129HP Diesel Engine Water Well Drilling Rig Machine 450m Drilling Depth 500mm Dia

    Ask Lasest Price
    Brand Name : RanCheng
    Model Number : RCF450T Truck Mounted Deep Well Drilling Machine
    Certification : CE, ISO 9001:2000
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100sets per Month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    129HP Diesel Engine Water Well Drilling Rig Machine 450m Drilling Depth 500mm Dia

    450m Drilling Depth 500mm Diameter Water Well Drilling Rig 129HP Diesel Engine


    Machine Introduction

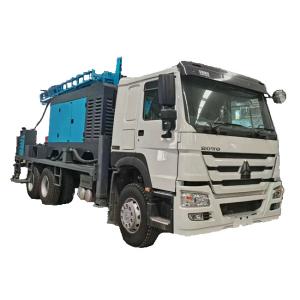

    The RC450T truck - mounted deep well drilling rig is a rotary table - type deep well water drilling equipment, suitable for water wells, electric drilling and coring, geothermal wells, geological exploration, etc. It is based on the HOWO 6X6 or 6X4 special lifting chassis and is equipped with main drive, gearbox, dual hydraulic winches, mud pump, rotary table and tower. It adopts directional circulation drilling technology and is equipped with BW900 / 25 mud pump, which is suitable for soft soil, sand and rock. Power is transmitted from the engine to the PTO to drive the drilling rig. Optional diesel or electric engine, hydraulic pressurization device improves drilling efficiency. The drilling rig is easy to operate and has high reliability.


    Technical Parameters


    The shape size11300×2500×4100mm
    The whole machine weight20T
    Drilling aperture500mm
    The drilling depth450m
    Kelly108×108×7500mm
    Hole drill pipeφ89
    Drill chassis partsChassis: HOWO 6×6 or 6×4
    The mast sectionMODEL: Truss type
    Load:40T
    Height:11M Hook load:16T
    Power partWP6D132E:120KW
    Mud PumpMODELBW900/25
    Maximum pressure3 MPa
    Maximum pump discharge900L/min
    Required power37 Horsepower
    Suction pipe diameterΦ101.6 mm
    Diameter of the drain pipeΦ76.2mm
    Rotary table gearboxOutput speed (r/min) Ⅰ Ⅱ Ⅲ IV V reversal 33 59 97 159 253 27
    Main hoistSingle rope tension: 4T Drum diameter: φ280mm Wire rope diameter: Φ17.5mm Rope capacity: 80m
    BailingSingle rope tension: 4T Drum diameter: φ280mm wire rope diameter: Φ17.5MM rope capacity: 80m
    Tool liftingSingle rope tension: 1T Rope capacity: 45m
    Control panelThe hydraulic auxiliary operation, the source of power for hydraulic pump, convenient and efficient
    Rotary tableRotary table through-hole diameter (mm) Φ505
    The rig can be installed 30KW generatorAfter the installation of the generator can be used for electric welding, lighting, and other useful life.

    Machine Pictures


    Quality 129HP Diesel Engine Water Well Drilling Rig Machine 450m Drilling Depth 500mm Dia for sale
