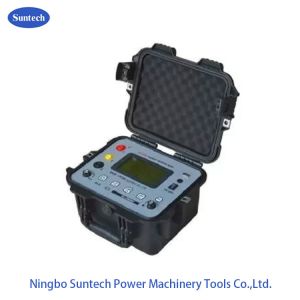

Digital 10KV Insulation Resistance Tester, Cable Insulation Resistance Test Equipment

10KV Insulation Resistance Tester , Cable Insulation Resistance Testing , Digital Display

I. Product Introduction :

Insulation resistance tester, also known as megohmmeter, is used for testing insulation resistance. FK-10KV insulation resistance tester has LCD large-screen backlight display, data storage, data review, alarm, automatic shutdown and US232 communication interface. At the same time, it also has the function of measuring voltage absorption ratio and polarization index. The whole machine has wide measuring range, high resolution, easy operation, convenient carrying, accurate, reliable, stable performance and strong anti-interference ability. Moreover, it has anti-vibration, dust-proof and moisture-proof structure. It is an indispensable measuring instrument for telecom, electric power, meteorology, computer room, oil field, electromechanical installation and maintenance, and industrial enterprise departments that use electricity as industrial power or energy. Rugged, reliable and easy to use, the user's work is more effective.


II. Main Features :

• It adopts microcomputer control, menu operation, large-screen LCD LCD dot matrix display, stable performance, and is an intelligent instrument.
• Strong anti-interference ability, suitable for measurement in strong electromagnetic interference environment.
• There are 8 voltage output gears of 50V, 100V, 250V, 500V, 1.0kV, 2.5kV, 5.0kV and 10.0kV.
• The output high voltage can also be continuously adjusted.
• Automatic measurement of R15, R60, R600, automatic calculation of absorption ratio, polarization index.
• Strong load capacity, short circuit current is about 5mA.
• The measuring range is up to 0 ~ 10TΩ, and the range is automatically switched.
• The analog bar pointer is combined with the digital display, and the image indicates the trend of the data and the accurate measurement result.
• Display the test time at any time, and the buzzer will automatically sound the prompt every 15 seconds.
• Automatic discharge high pressure after measurement, high pressure release time does not exceed 30 seconds.
• Automatic measurement of ambient temperature, air humidity and date and time of each test.
• 60 sets of measurement results can be saved, and the data can be lost for 20 years.
• With RS232 serial interface and can communicate with computer data.
• RS232 serial port external printer (optional), can print measurement results, free of meter reading work.
• It has comprehensive and perfect protection function and high work reliability.

III. Main Technical Data

1. Test Voltage gear: 50V, 100V, 250V, 500V, 1.0kV, 2.5kV, 5.0kV and 10.0kV

2. Measuring range : 0.1MΩ ~ 10TΩ

3. Short circuit current range: no less than 5mA

4. Test Accuracy: 5%

5. Temerature measurement error: 0.5℃

6. Insulation voltage : 10KV 50Hz, 1mint

7. Power supply :14.8V

8. Dimension : 270*240*165mm

9. Weight: 4.5kgs

10. Working temperature: 0~40℃

11. Humidity:no more than 85%RH

12. Communication :RS232 interface

13. External Print interface : optional
