360mN.M 42x40mm Close Loop Stepper Motor Nema 17 With 1000 Ppr Encoder For Automation Equipment

Casun Closed Loop Stepper Motor360mN.M 42x40mm Stepper Motor With Nema 17 Stepper Motor Controller

Encoder Step Motor 360mN.M 42x40mm Close Loop Stepper Motor Nema 17 With 1000 Ppr Encoder For Automation Equipment

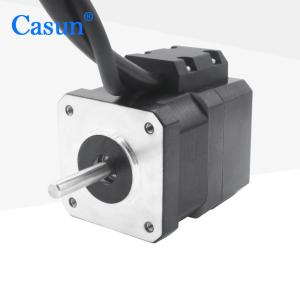

Nema17 Closed Loop Stepper Motor 360mN.m 1.65Amp with Encoder

The Casun Closed Loop Stepper Motor you mentioned is a specific model of stepper motor manufactured by Casun Motors. It has a holding torque of 360mN.m and a size of 42x40mm. The term "closed loop" indicates that this stepper motor incorporates a feedback mechanism to ensure accurate positioning.

In addition to the stepper motor itself, a Nema 17 Stepper Motor Controller. Nema 17 refers to the mounting standard for stepper motors, indicating the motor's faceplate size. The stepper motor controller is a device that provides control signals to the stepper motor, allowing you to control its speed, direction, and position.

By using a closed loop stepper motor and a dedicated stepper motor controller, you can achieve more precise control over the motor's position by providing feedback on its actual position and making adjustments as necessary.

Features:

• Bipolar or unipolar versions available

• Hybrid stepper construction

• Available in single or double shaft versions

• CE and RoHS approved

• Customizations on request

Motor Specifications

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B -

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Please click the "Get a quote" button below to tell us your requirements.
