    Nema 17 Closed Loop Stepper Motor High Torque 1.2A 42*42*34mm For Robot

    Ask Lasest Price
    Brand Name : Casun
    Model Number : 42SHD4034-24BQH
    Certification : CE,ROHS,ISO
    Price : $3.14-$5
    Payment Terms : D/A, T/T, L/C, D/P
    Supply Ability : 40000+PCS+Month
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    Nema 17 Closed Loop Stepper Motor High Torque 1.2A 42*42*34mm For Robot

    Nema 17 Closed Loop Stepper Motor High Torque 1.2A 42*42*34mm For Robot

    The closed-loop control system enables automatic calibration, reducing the complexity of manual debugging.

    Mainly used in fields that require high-precision positioning and motion control.


    Features:

    • Every stepper motor model has use in a variety of situations.

    • We provide personalized services and are open to contract manufacturing

    • Available in single or double shaft versions

    • Dealers wanted!

    • Having operated in China for 12 years, we have served over 800 customers


    Motor Specifications


    Step Angel

    1.8 °

    Fram Size

    42 mm

    Number of Phase

    2 Phase

    Rated Current

    1.2 A

    Holding Torque

    320 mN.m

    Resistance

    5.0 ohm

    Inductance

    6.2 mH

    Rotor Inertia

    38 g-cm²

    Motor weight

    0.2 kg

    Number of leads

    4

    Connection

    Bipolar

    Appearance

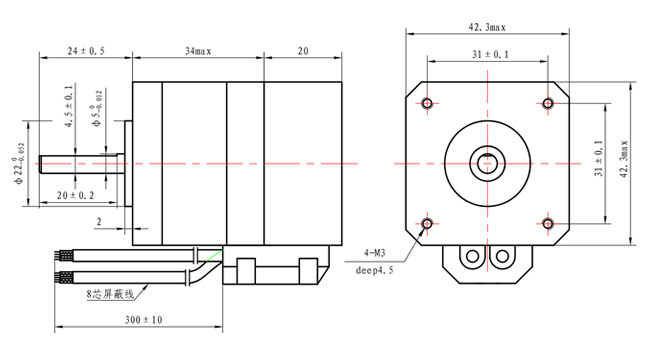

    Dimensions


    Operating Specifications

    Step Angle: 1.8°

    Maximum Temperature :80°C maximum

    Ambient Temperature: -20 °C to 50°C

    Storage Temperature -20: °C to 100°C

    Humidity Range (%) :85% or less, non-condensing

    Magnet Wire Insulation :Class B 130 deg C

    Insulation Resistance :100M Ohm at 500 VDC

    Dielectric Strength :500 VDC for 1 min


    Torque Curves


    Submodels

    ModelHolding TorqueStep AngleMotor LengthType of ShaftRated Current
    42SHD49500.13N.m1.8°20mmD Shaft-20mm1.0A
    42SHD40030.26N.m1.8°34mmD Shaft-20mm0.4A
    42SHD02610.45N.m1.8°40mmD Shaft-20mm1.68A
    42SHD44250.59N.m1.8°48mmD Shaft-24mm2.0A
    42SHD48130.8N.m1.8°60mmD Shaft-24mm2.1A

    Download

    If our standard motor cannot meet your needs,

    we can customize the motor according to your needs


    Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

    Options:

    Encoder

    Brake

    Gearbox

    Shaft


    Please click the "Get a quote" button below to tell us your requirements.
